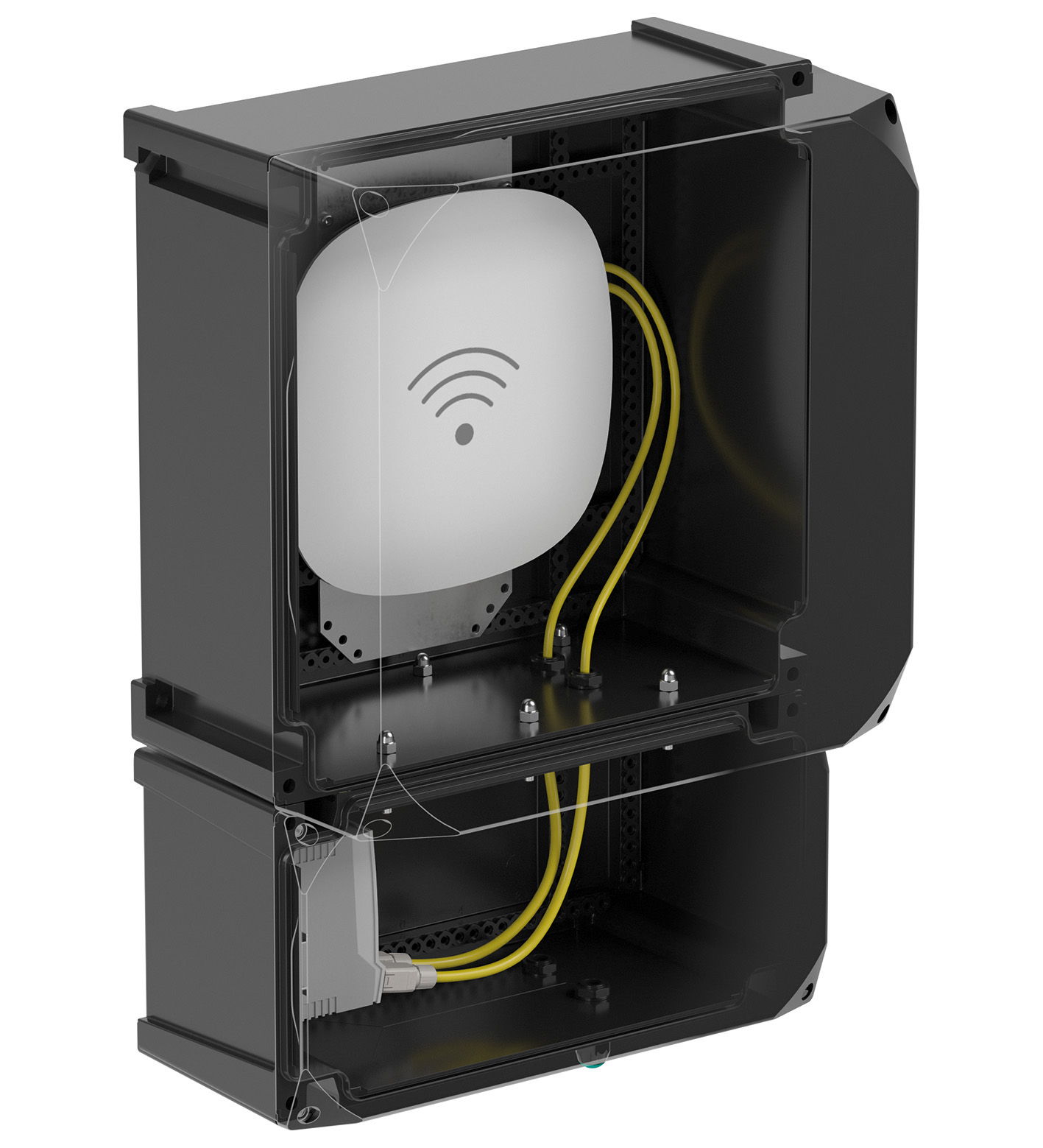

CPS.GR*

Wireless Access Point (Ex nR). Glass-fiber reinforced polyester (GRP) enclosure, Installation in Zone 2, Installation in Zone 21 and Zone 22 (on request), Use of industrial Wireless Access Points in h...

Wireless Access Point (Ex nR). Glass-fiber reinforced polyester (GRP) enclosure, Installation in Zone 2, Installation in Zone 21 and Zone 22 (on request), Use of industrial Wireless Access Points in hazardous areas, Separate connection enclosure allows for easy installation and maintenance , Lightweight solution, Customizable configuration of WI-FI and network devices and cable entries as per specification, Image and drawing are generic for this device type and may deviate from the specific variant. Operating voltage: 690 V AC / DC max. , depending on size for ATEX / IECEx. Operating current: 350 A max. , depending on size and certification. Enclosure cover: fully detachable , optional hinges. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw. Cover seal: foamed silicone. Degree of protection: IP66. Cable entry: . Number of cable entries2 x M20 for standard variants As per specification for engineered solutions: . Number of cable entries: 2 x M20 for standard variants As per specification for engineered solutions. Material: . Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass optional: . Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Finish: inherent color black. Grounding plate: 2 mm brass optional. Mass: depending on integrated components and selected enclosure size. Shock resistance: IK09 (from GR.18.18.10 and larger, IK09, IK10 apply). Dimensions: depending on integrated components see datasheets of relevant enclosures values might differ slightly due to casting and manufacturing tolerances. Mounting: wall mounting. Grounding: none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt. Ambient temperature: depending on integrated components. EU-type examination certificate: FIDI 23 ATEX 0082X. Marking II 3G Ex nR IIC T6...T4 GcEx II 3G Ex db nR [ia] IIC T6...T4 GcEx II 3G Ex nR [op is] IIC T6...T4 Gc: . Marking: II 3G Ex nR IIC T6...T4 GcEx II 3G Ex db nR [ia] IIC T6...T4 GcEx II 3G Ex nR [op is] IIC T6...T4 Gc. Further approvals: available on request. Degree of protection: EN60529. CE marking: 0102. Ordering information: This Wireless Access Point solution will be delivered completely configured and assembled ready for use. For configuration details please contact customer service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Installed components: All major WI-FI Access Point vendors such as Aruba, Cisco, ect.. Optional accessories: M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label

Brand	Pepperl Fuchs
Lifecycle status	active
