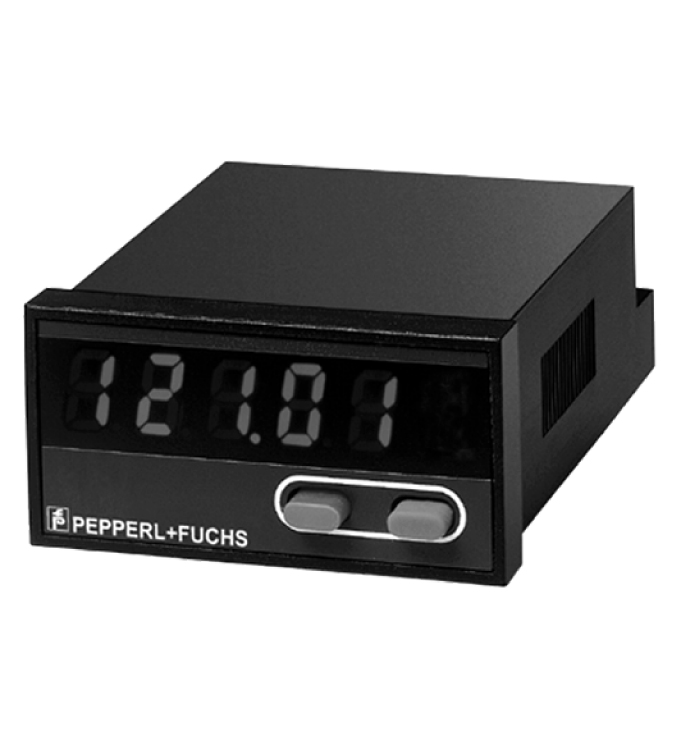

DA5-IU-C

Process indicator. Bright, high contrast 5-digit LED indicator, Leading zero suppression, Adjustable decimal point, Maximum- and minimium-value display, Integrated counter with specific scaling, Opera...

Process indicator. Bright, high contrast 5-digit LED indicator, Leading zero suppression, Adjustable decimal point, Maximum- and minimium-value display, Integrated counter with specific scaling, Operating voltage: 10 ... 30 V DC, Dimensions: 48 mm x 24 mm x 65 mm. Measuring frequency: 10 measurements per second. Pre-selection: none. Data storage: 106 storage cycles or 10 years, EEPROM. Programming: keypad-driven menu. Type: 7-segment LED display, red. Number of digits: 5. Display value: digit height 8 mm. Key interlock: -. Display interval: -19999 ... 99999. Decimal point: freely adjustable. Resolution: 14 Bit. Scale factor: via linear characteristic curve. Reset: maximum value, manually. Operating voltage: 10 ... 30 V DC. Power consumption: 1.5 VA. Impedance: 1 MOhm. Voltage: max. 30 DC. Analog voltage input: 0 ... 10 V / 2 ... 10 V DC. Analog current input: 0 ... 20 mA / 4 ... 20 mA. Accuracy: < 0.1 % of the total measuring range at 20 °C. Temperature influence: < 70 ppm/K ambient conditions. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Relative humidity: ≤ 80 % (noncondensing). Degree of protection: IP65 (front). Connection: 7-pin screw terminal max. core cross section 0.34 ... 1.5 mm2. Mass: approx. 50 g. Dimensions: 48 mm x 24 mm x 65 mm. Mounting: latch fastener/mounting frame

Brand	Pepperl Fuchs
Lifecycle status	active
