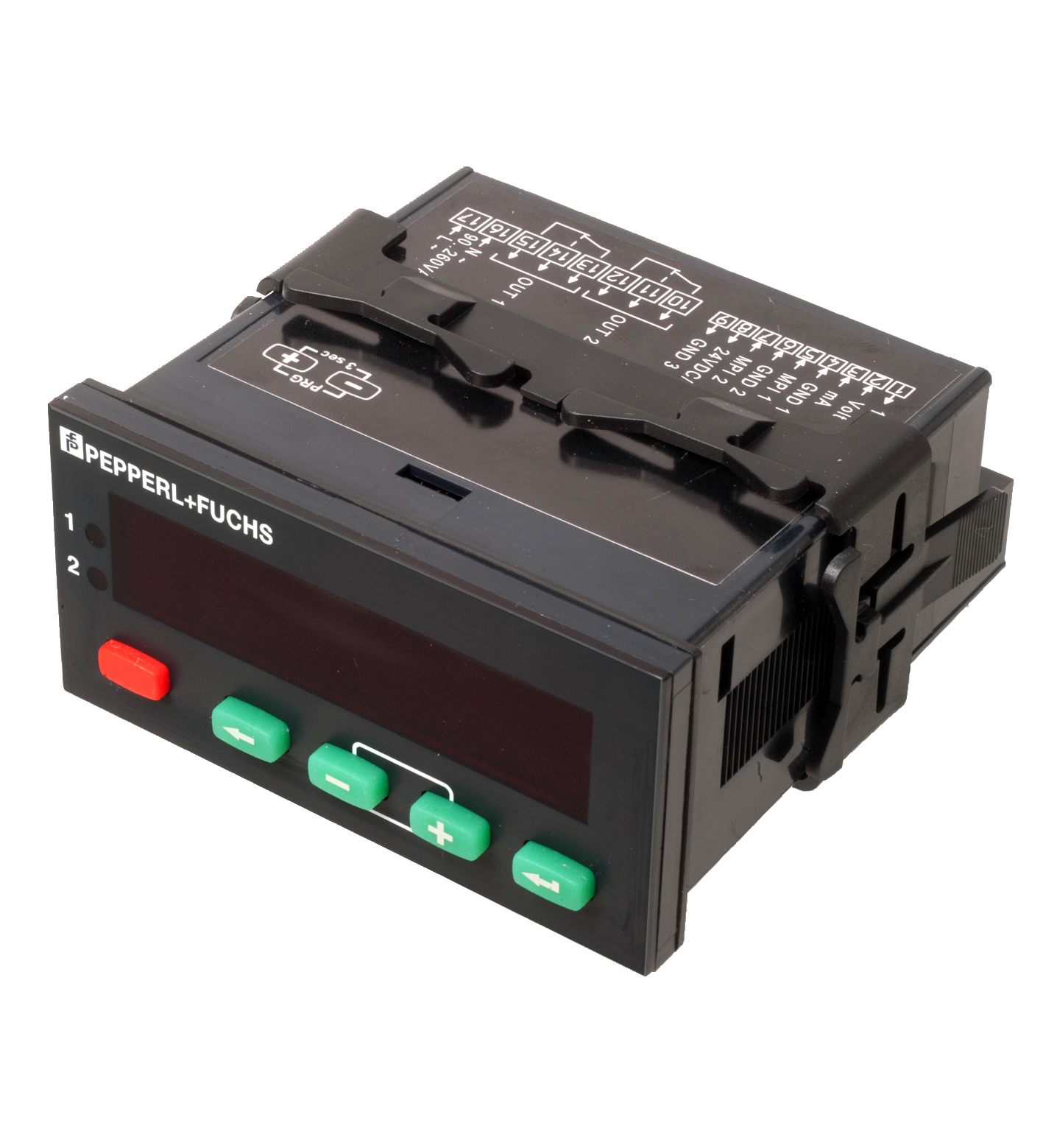

DA6-IU-2K-C

Process control and indication equipment. 2 adjustable trip values, 2 relay outputs, Operation via keypad, Characteristic programmable via 12 interpolation points, Resetting the outputs, automatic, ma...

Process control and indication equipment. 2 adjustable trip values, 2 relay outputs, Operation via keypad, Characteristic programmable via 12 interpolation points, Resetting the outputs, automatic, manual or with external signal, Operating voltage: 10 ... 30 V DC, Relay: changeover contact, Dimensions: 96 mm x 48 mm x 102 mm. Pre-selection: 2-fold. Data storage: > 10 years, EEPROM. Programming: keypad-driven menu. Type: 14-segment LED display, red. Number of digits: 6. Display value: digit height 14 mm. Key interlock: with "high"-level at terminal "KEY". Display interval: -199999 ... 999999 with suppression of leading zeros. Decimal point: freely adjustable. Resolution: 15 Bit. Scale factor: via characteristic curve with up to 12 value pairs. Reset: manually or external. Fusing: T 0.4 A. Operating voltage: 10 ... 30 V DC. Protection class: IP65 (front). Power consumption: 3.8 W. Impedance: > 1 MΩ for voltage measurement 22 Ω + PTC 25 Ω for current measurement. Analog voltage input: 0 ... 10 V / 2 ... 10 V DC,-10 ... 10 V DC. Analog current input: 0 ... 20 mA / 4 ... 20 mA. Relay: changeover contact. Switching voltagemax. 250 V AC / 125 V DC min. 5 V AC / 5 V DCSwitching currentmax. 5 A AC / 5 A DC min. 10 mA DCSwitching powermax. 1250 VA / 150 W: . Switching voltage: max. 250 V AC / 125 V DC min. 5 V AC / 5 V DC. Switching current: max. 5 A AC / 5 A DC min. 10 mA DC. Switching power: max. 1250 VA / 150 W. Sensor supply: 15 V DC ± 1 %, 25 mA. Directive conformity: . EMC Directive 2004/108/ECEN 61000-6-2:2006 DIN EN 55011:2009, Class B: . EMC Directive 2004/108/EC: EN 61000-6-2:2006 DIN EN 55011:2009, Class B. Standard conformity: . Galvanic isolationEN 61010-1:2010Shock and impact resistanceEN 60068-2-27:2009 EN 60068-2-29:1995Vibration resistanceEN 60068-2-6:2008: . Galvanic isolation: EN 61010-1:2010. Shock and impact resistance: EN 60068-2-27:2009 EN 60068-2-29:1995. Vibration resistance: EN 60068-2-6:2008. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: ≤ 80 % (noncondensing). Connection: 8-pin and 9-pin connectors with screw terminals. Mass: 180 g. Dimensions: 96 mm x 48 mm x 102 mm. Mounting: mounting frame with latch fastener

Brand	Pepperl Fuchs
Lifecycle status	active
