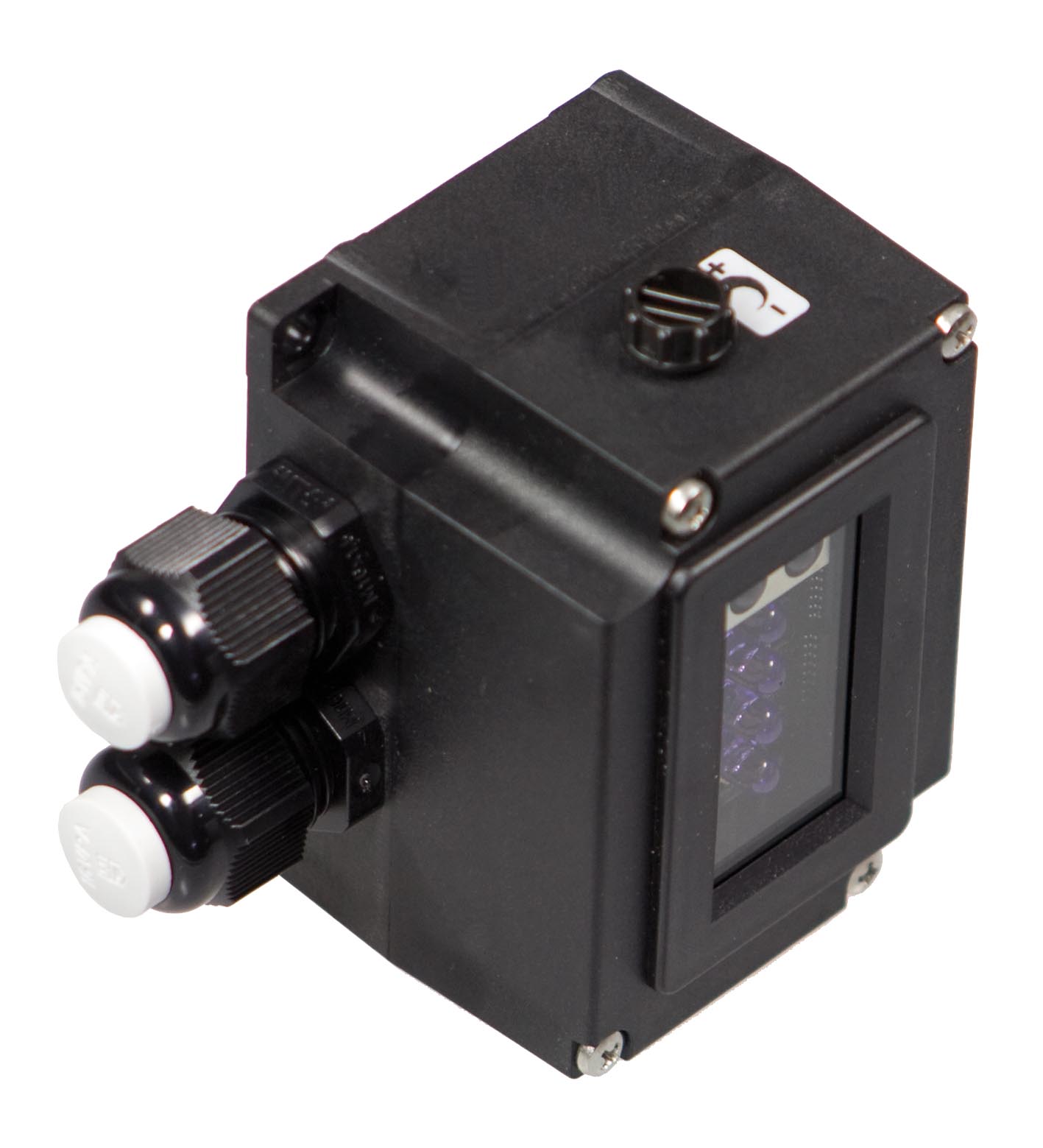

DAD15-8P

Optical data coupler. Optical data coupler, 8 bit parallel data transfer, Very large angle of divergence, Can be connected in series, Connection with spring-loaded terminals, Degree of protection IP67...

Optical data coupler. Optical data coupler, 8 bit parallel data transfer, Very large angle of divergence, Can be connected in series, Connection with spring-loaded terminals, Degree of protection IP67. Effective detection range: 0 ... 1500 mm. Threshold detection range: 2500 mm. Light source: IRED. Light type: modulated infrared light. Diameter of the light spot: approx. 1000 mm at 1.5 m. Opening angle: ± 20 °. Ambient light limit: 5000 Lux. Cycle time: 35 ms. MTTFd: 200 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Data flow indicator: Inputs: 8 LEDs greenOutputs: 8 LEDs red. Control elements: sensitivity adjustment. Control elements: Operating mode switch 4: Behavior when beam is brokenSwitches 1+2: Address. Operating voltage: 10 ... 60 V DC. No-load supply current: 40 mA. Data sampling blanking: Enable input emitter deactivation. Data rate: 225 Bit/s. Interface type: 8 bit parallel, bidirectional10 inputs, PNP , 10 outputs, PNP. Switching voltage: max. 60 V DC. Switching current: max. 200 mA per channel , short-circuit protected , total max. 800 mA. Product standard: EN 60947-5-2. EAC conformity: TR CU 020/2011. Approvals: CE. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP67. Connection: 2 M16 cable glands, tension spring terminals in the terminal compartment. Material: . HousingTerluran®, blackOptical faceglass: . Housing: Terluran®, black. Optical face: glass. Mass: 170 g. Dimensions: . Width53 mmDepth56 mmLength76 mm: . Width: 53 mm. Depth: 56 mm. Length: 76 mm

Brand	Pepperl Fuchs
Lifecycle status	active
