DIS.*

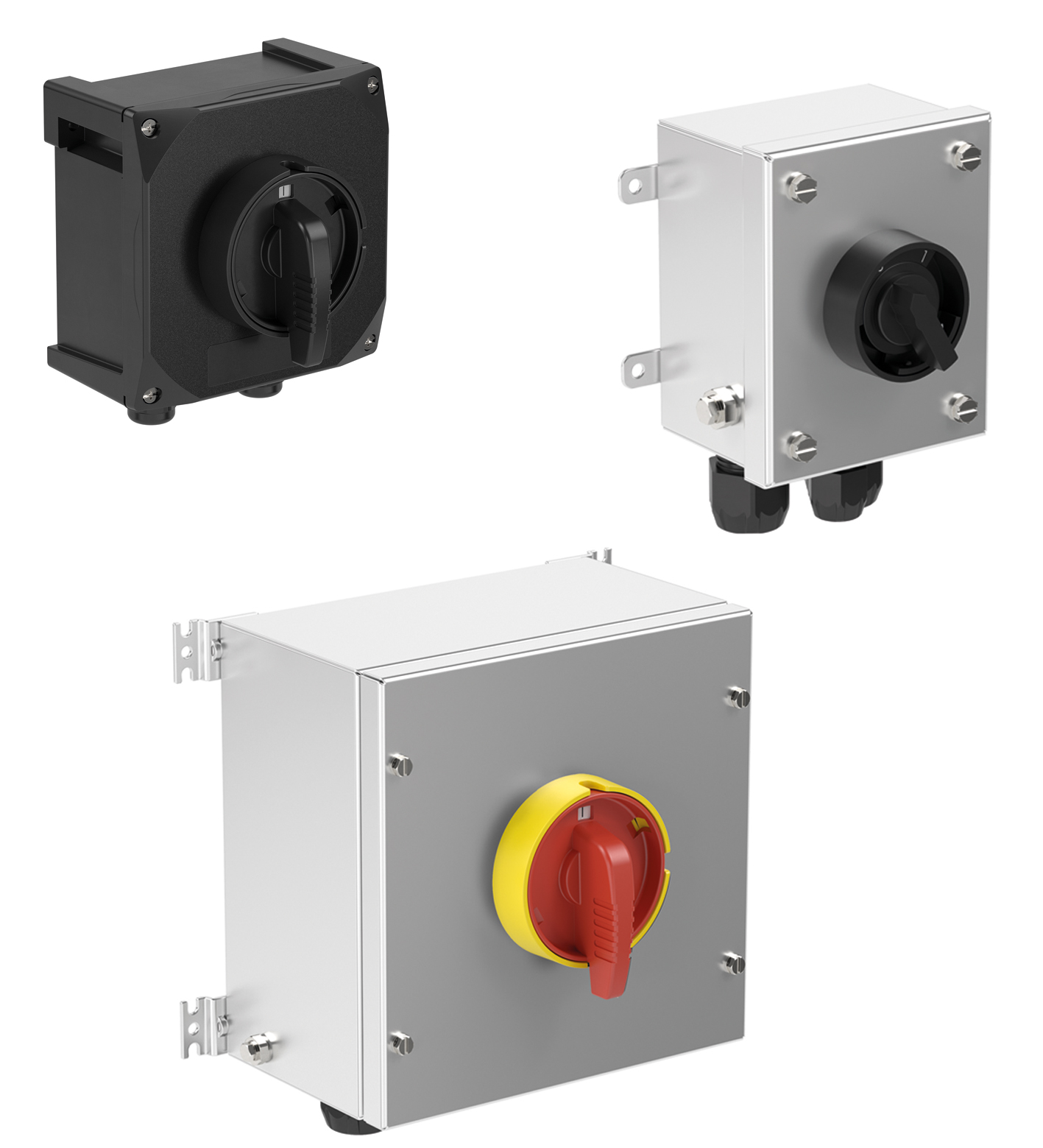

Switch Disconnectors Ex e. Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex db eb and Ex tb certified, Various contact configurations and pole numbers, Glass reinforced polyester (GRP) or stain...

Switch Disconnectors Ex e. Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex db eb and Ex tb certified, Various contact configurations and pole numbers, Glass reinforced polyester (GRP) or stainless steel enclosures, Padlockable switch, Labeling '0 - I', Function-adequate cable gland configurations, Degree of protection: IP 66, Function: switch disconnector, Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP) or AISI 316L, (1.4404) stainless steel. Operating voltage: 690 V max.. Rated impulse withstand voltage: 6 kV. Rated frequency: 50/60 Hz. Short circuit current limitation: recommended: 25 A : 35 A, gG 40 A : 63 A, gG. Operating current: 25 A max. or 40 A max.. Terminal capacity: see data table. Rated insulation voltage: 800 V. Function: switch disconnector. Colorblack and red-yellowContact configurationsee data tableSwitching configuration2 position changeover with left OFFUsage categorysee data tableNumber of polessee data tableAuxiliary contactssee data tableAuxiliary contacts usage categorysee data tableOperator actionengage - engageLockablein 'OFF' position threefold padlockableLabeling0 - I: . Color: black and red-yellow. Contact configuration: see data table. Switching configuration: 2 position changeover with left OFF. Usage category: see data table. Number of poles: see data table. Auxiliary contacts: see data table. Auxiliary contacts usage category: see data table. Operator action: engage - engage. Lockable: in 'OFF' position threefold padlockable. Labeling: 0 - I. Enclosure range: see table. Enclosure cover: fully detachable. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw. ScrewsM6Number4Tightening torque3.5 Nm: . Screws: M6. Number: 4. Tightening torque: 3.5 Nm. Cover seal: foamed silicone. Safety: cover detachable only when operator in 'ON' position with SAF.* variants. Degree of protection: IP66. Cable entry: see data table. Defined entry area: face B. Material: . Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP) or AISI 316L, (1.4404) stainless steelFinishinherent color black or brushed: . Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP) or AISI 316L, (1.4404) stainless steel. Finish: inherent color black or brushed. Mass: see data table. Dimensions: see data table. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: see data table. Grounding: GRP none as standard stainless steel M6 internal/external brass nickel-plated grounding bolt. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C: . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. ECAS approval: 22-10-53256/E22-09-052316/NB0002. IA approval: MASC S/18-0003X. CCC approval: 2020322304002545. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
