DIS.P.025.3P.GR

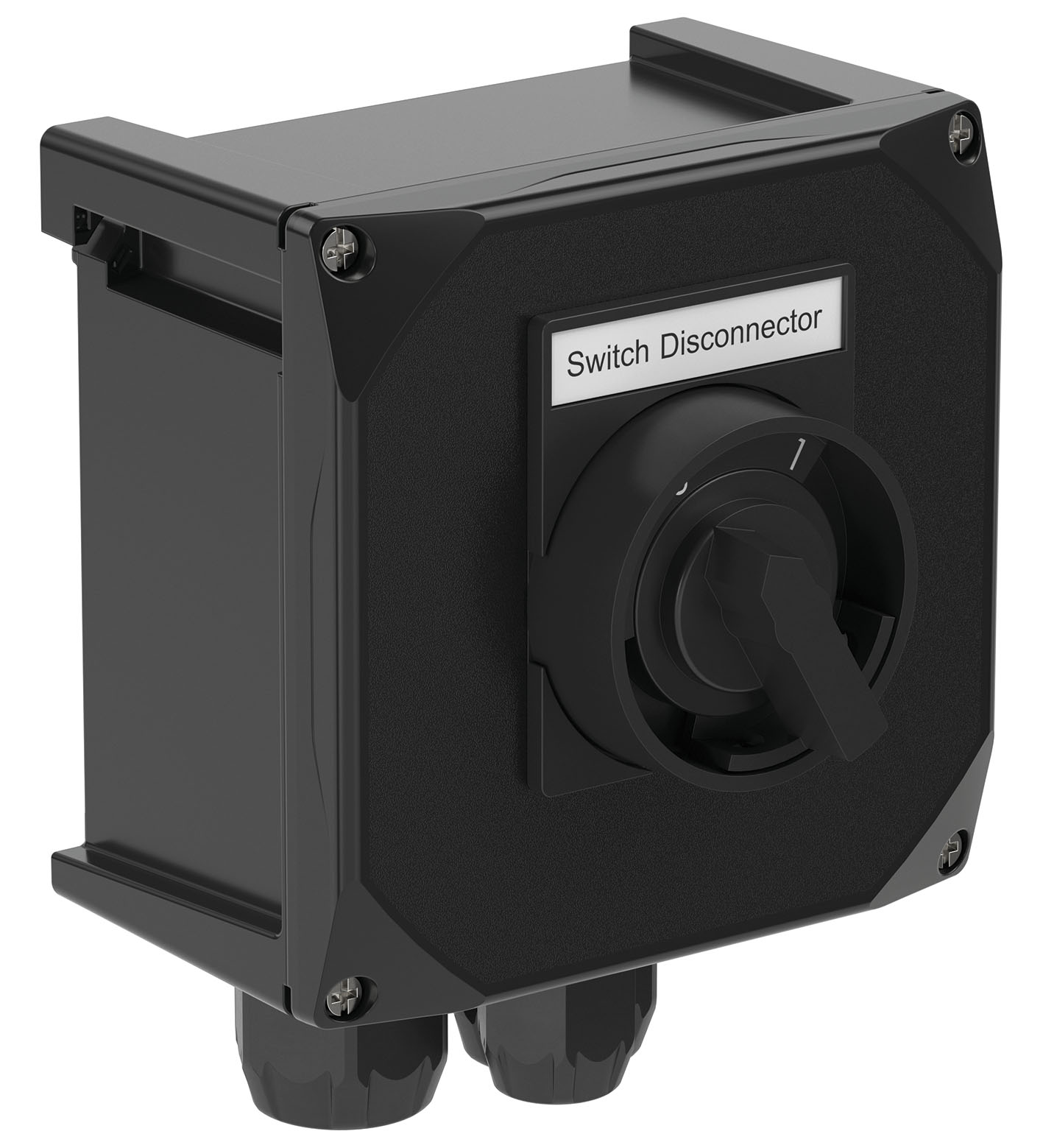

Switch Disconnector Ex e 25 A 3 Pole, GRP Enclosure. Switch disconnector, 2 position with left OFF - 3x NO, Labeling '0 - I', Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Carbon loaded, antistatic glass-fiber reinforced polyester, Bottom face cable glands polyamide, 2x M25, Ex db eb and Ex tb certified, Padlockable switch, Degree of protection: IP 65, Function: switch disconnector, Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Operating voltage: 690 V max.. Rated impulse withstand voltage: 6 kV. Rated frequency: 50/60 Hz. Short circuit current limitation: recommended: 35 A, gG. Operating current: 25 A max.. Terminal capacity: . Main terminals capacity2x 1.5 ... 4 mm2Main terminals torque2 NmGrounding terminals capacity2x 1.5 ... 4 mm2Grounding terminals torque2 Nm: . Main terminals capacity: 2x 1.5 ... 4 mm2. Main terminals torque: 2 Nm. Grounding terminals capacity: 2x 1.5 ... 4 mm2. Grounding terminals torque: 2 Nm. Rated insulation voltage: 800 V. Function: switch disconnector. ColorblackContact configuration3x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC - 16 A / 500 V AC - 20 A / 400 V AC - 25 A AC3: 690 V AC - 16 A / 500 V AC - 20 A / 400 V AC - 25 ANumber of poles3Operator actionengage - engageLockablein 'OFF' position threefold padlockableLabeling0 - I: . Color: black. Contact configuration: 3x NO. Switching configuration: 2 position with left OFF. Usage category: AC23: 690 V AC - 16 A / 500 V AC - 20 A / 400 V AC - 25 A AC3: 690 V AC - 16 A / 500 V AC - 20 A / 400 V AC - 25 A. Number of poles: 3. Operator action: engage - engage. Lockable: in 'OFF' position threefold padlockable. Labeling: 0 - I. Enclosure range: GR. Enclosure cover: fully detachable. Cover fixing: . ScrewsM6 stainless steel combination Phillips and slotted screwNumber4Tightening torque3.5 Nm: . Screws: M6 stainless steel combination Phillips and slotted screw. Number: 4. Tightening torque: 3.5 Nm. Cover seal: foamed silicone. Degree of protection: IP65. Cable entry face B: . M25 quantity2M25 seriesCable Glands, PlasticM25 typeCG.PEDS1.M25.*M25 clamping range9 ... 17 mm: . M25 quantity: 2. M25 series: Cable Glands, Plastic. M25 type: CG.PEDS1.M25.*. M25 clamping range: 9 ... 17 mm. Defined entry area: face B. Material: . Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color black: . Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Finish: inherent color black. Mass: 2.1 kg. Dimensions: . Height (A)179 mmWidth (B)179 mmDepth (C)104 mmExternal dimension with operating element (C1)154 mmMounting holes distance (G)126 mmMounting holes distance (H)156 mmMounting holes diameter (J)7 mmThickness of mounting brackets (N)18 mm: . Height (A): 179 mm. Width (B): 179 mm. Depth (C): 104 mm. External dimension with operating element (C1): 154 mm. Mounting holes distance (G): 126 mm. Mounting holes distance (H): 156 mm. Mounting holes diameter (J): 7 mm. Thickness of mounting brackets (N): 18 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: 2 screws. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C: . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. Further approvals: further on request. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
