DIS.P.040.6P.1NO.1NC.GR

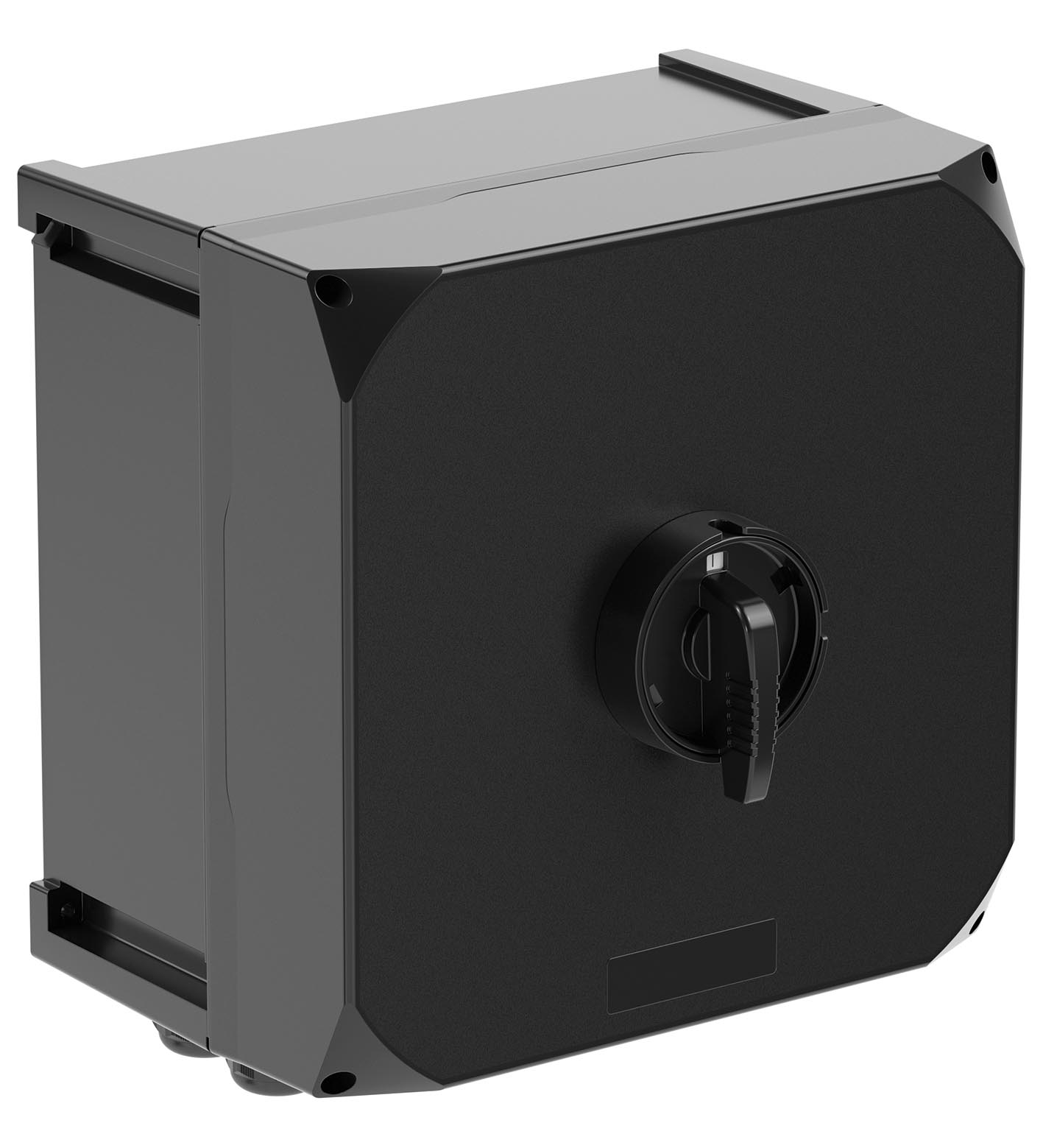

Switch Disconnector Ex e 40 A 6 Pole, GRP Enclosure. Switch disconnector, 2 position with left OFF - 6x NO, Labeling '0 - I', Auxiliary contacts - 1x NO / 1x NC , Carbon loaded, antistatic glass-fiber...

Switch Disconnector Ex e 40 A 6 Pole, GRP Enclosure. Switch disconnector, 2 position with left OFF - 6x NO, Labeling '0 - I', Auxiliary contacts - 1x NO / 1x NC , Carbon loaded, antistatic glass-fiber reinforced polyester, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Bottom face cable glands polyamide, 4x M32 1x M20, Ex db eb and Ex tb certified, Padlockable switch, Degree of protection: IP 65, Function: switch disconnector, Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Operating voltage: 690 V max.. Rated impulse withstand voltage: 6 kV. Rated frequency: 50/60 Hz. Short circuit current limitation: recommended: 63 A, gG. Operating current: 40 A max.. Terminal capacity: . Main terminals capacity2x 6 ... 10 mm2Main terminals torque3.5 NmGrounding terminals capacity2x 6 ... 10 mm2Grounding terminals torque3.5 Nm: . Main terminals capacity: 2x 6 ... 10 mm2. Main terminals torque: 3.5 Nm. Grounding terminals capacity: 2x 6 ... 10 mm2. Grounding terminals torque: 3.5 Nm. Rated insulation voltage: 800 V. Function: switch disconnector. ColorblackContact configuration6x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A AC3: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 ANumber of poles6Auxiliary contacts1x NO delayed, advanced opening / 1x NCAuxiliary contacts usage categoryAC11: 500 V AC - 20 AOperator actionengage - engageLockablein 'OFF' position threefold padlockableLabeling0 - I: . Color: black. Contact configuration: 6x NO. Switching configuration: 2 position with left OFF. Usage category: AC23: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A AC3: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A. Number of poles: 6. Auxiliary contacts: 1x NO delayed, advanced opening / 1x NC. Auxiliary contacts usage category: AC11: 500 V AC - 20 A. Operator action: engage - engage. Lockable: in 'OFF' position threefold padlockable. Labeling: 0 - I. Enclosure range: GR. Enclosure cover: fully detachable. Cover fixing: . ScrewsM6 stainless steel combination Phillips and slotted screwNumber4Tightening torque3.5 Nm: . Screws: M6 stainless steel combination Phillips and slotted screw. Number: 4. Tightening torque: 3.5 Nm. Cover seal: foamed silicone. Degree of protection: IP65. Cable entry face B: . M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mmM32 quantity4M32 seriesCable Glands, PlasticM32 typeCG.PEDS1.M32L.*M32 clamping range14 ... 24 mm: . M20 quantity: 1. M20 series: Cable Glands, Plastic. M20 type: CG.PEDS1.M20.*. M20 clamping range: 6 ... 12 mm. M32 quantity: 4. M32 series: Cable Glands, Plastic. M32 type: CG.PEDS1.M32L.*. M32 clamping range: 14 ... 24 mm. Defined entry area: face B. Material: . Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color black: . Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Finish: inherent color black. Mass: 9 kg. Dimensions: . Height (A)359 mmWidth (B)359 mmDepth (C)241.5 mmExternal dimension with operating element (C1)291.5 mmMounting holes distance (G)306 mmMounting holes distance (H)336 mmMounting holes diameter (J)7 mmThickness of mounting brackets (N)18 mm: . Height (A): 359 mm. Width (B): 359 mm. Depth (C): 241.5 mm. External dimension with operating element (C1): 291.5 mm. Mounting holes distance (G): 306 mm. Mounting holes distance (H): 336 mm. Mounting holes diameter (J): 7 mm. Thickness of mounting brackets (N): 18 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: 4 screws. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C: . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. Further approvals: further on request. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
