DIS.S.040.3P.SR

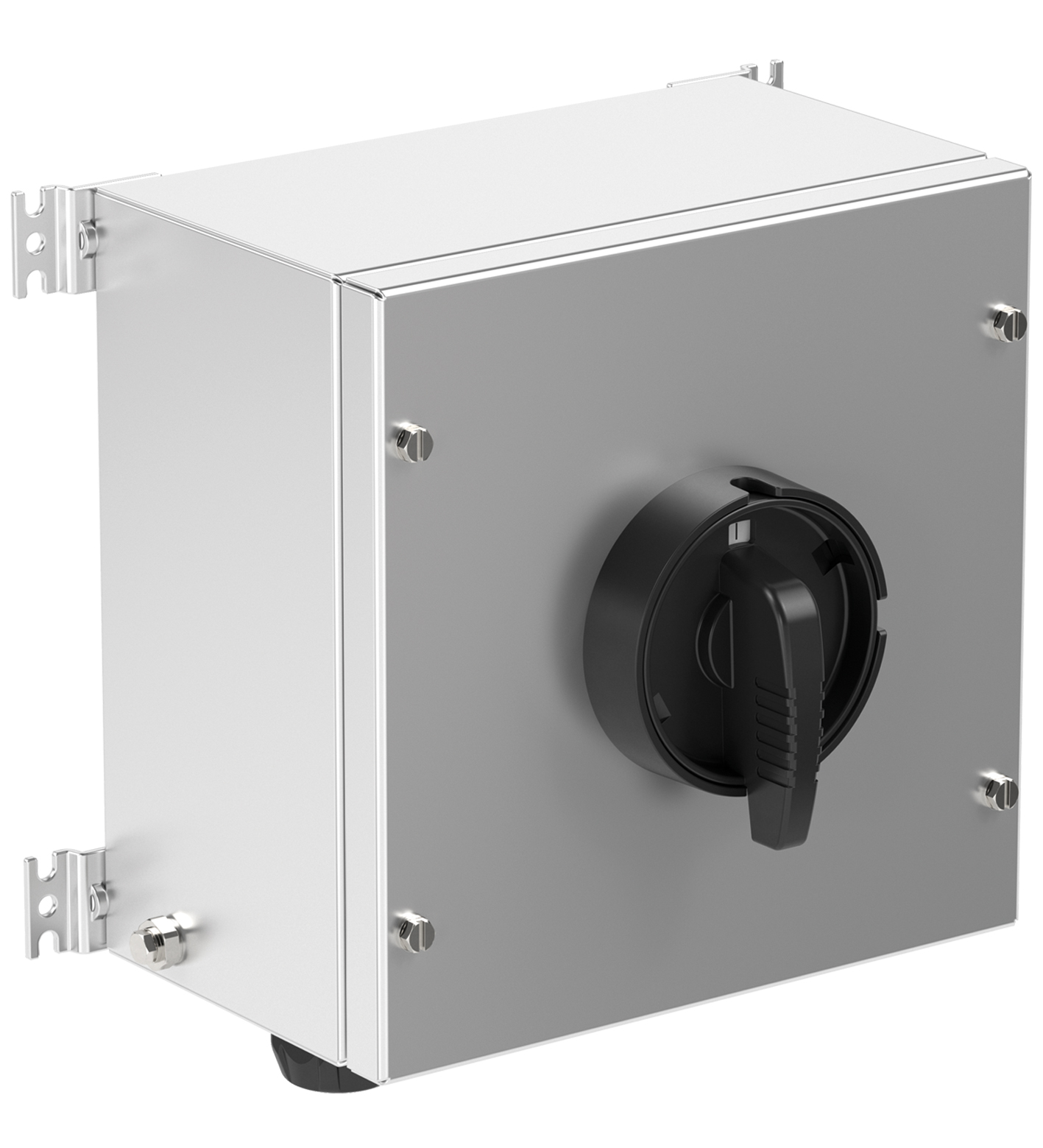

Switch Disconnector Ex e 40 A 3 Pole, Stainless Steel Enclosure. Switch disconnector, 2 position with left OFF - 3x NO, Labeling '0 - I', Padlockable in three positions, Installation in Zone 1, Zone 2...

Switch Disconnector Ex e 40 A 3 Pole, Stainless Steel Enclosure. Switch disconnector, 2 position with left OFF - 3x NO, Labeling '0 - I', Padlockable in three positions, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Stainless Steel AISI 316L, Bottom face cable glands polyamide, 2x M32, Ex db eb and Ex tb certified, Degree of protection: IP 66, Return Flange Sealing provides Drain Channel, Function: switch disconnector, Enclosure: 1.5 mm AISI 316L, (1.4404) stainless steel. Operating voltage: 690 V max.. Rated impulse withstand voltage: 6 kV. Rated frequency: 50/60 Hz. Short circuit current limitation: recommended: 63 A, gG. Operating current: 40 A max.. Terminal capacity: . Main terminals capacity2x 6 ... 10 mm2Main terminals torque3.5 NmGrounding terminals capacity2x 6 ... 10 mm2Grounding terminals torque3.5 Nm: . Main terminals capacity: 2x 6 ... 10 mm2. Main terminals torque: 3.5 Nm. Grounding terminals capacity: 2x 6 ... 10 mm2. Grounding terminals torque: 3.5 Nm. Rated insulation voltage: 800 V. Function: switch disconnector. ColorblackContact configuration3x NOSwitching configuration2 position with left OFFUsage categoryAC23: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A AC3: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 ANumber of poles3Operator actionengage - engageLockablein 'OFF' position threefold padlockableLabeling0 - I: . Color: black. Contact configuration: 3x NO. Switching configuration: 2 position with left OFF. Usage category: AC23: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A AC3: 690 V AC - 32 A / 500 V AC - 40 A / 400 V AC - 40 A. Number of poles: 3. Operator action: engage - engage. Lockable: in 'OFF' position threefold padlockable. Labeling: 0 - I. Enclosure range: SR. Enclosure cover: fully detachable. Cover fixing: stainless steel A4 (V4A) hexagonal head screws. ScrewsM6Number4Tightening torque3 Nm - 3.5 Nm: . Screws: M6. Number: 4. Tightening torque: 3 Nm - 3.5 Nm. Cover seal: foamed silicone. Degree of protection: IP66. Cable entry: thru-holes direct through body. Cable entry face B: . M32 quantity2M32 seriesCable Glands, PlasticM32 typeCG.PEDS1.M32L.*M32 clamping range14 ... 24 mm: . M32 quantity: 2. M32 series: Cable Glands, Plastic. M32 type: CG.PEDS1.M32L.*. M32 clamping range: 14 ... 24 mm. Defined entry area: face B. Material: . Enclosure1.5 mm AISI 316L, (1.4404) stainless steelFinishbrushed: . Enclosure: 1.5 mm AISI 316L, (1.4404) stainless steel. Finish: brushed. Mass: approx. 6.3 kg. Dimensions: . External dimension (A)260 mmExternal dimension (B)260 mmExternal dimension (C)160 mmExternal dimension with operating element (C1)210 mmMounting holes distance (G)225 mmMounting holes distance (G1)295 mmMounting holes distance (G2)212.5 mmMounting holes distance (H)225 mmMounting holes distance (H1)295 mmMounting holes distance (H2)212.5 mmMounting holes diameter (J)7 mmThickness of mounting brackets (N)8.5 mmMaximum external dimension (K)310 mmMaximum external dimension (K1)310 mm: . External dimension (A): 260 mm. External dimension (B): 260 mm. External dimension (C): 160 mm. External dimension with operating element (C1): 210 mm. Mounting holes distance (G): 225 mm. Mounting holes distance (G1): 295 mm. Mounting holes distance (G2): 212.5 mm. Mounting holes distance (H): 225 mm. Mounting holes distance (H1): 295 mm. Mounting holes distance (H2): 212.5 mm. Mounting holes diameter (J): 7 mm. Thickness of mounting brackets (N): 8.5 mm. Maximum external dimension (K): 310 mm. Maximum external dimension (K1): 310 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: 4 Mounting bracket for wall mounting included in the scope of delivery. Grounding: M6 internal/external brass nickel-plated grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to enclosure body. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C: . Marking: II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. Further approvals: further on request. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 0080 or 0102, see type label. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
