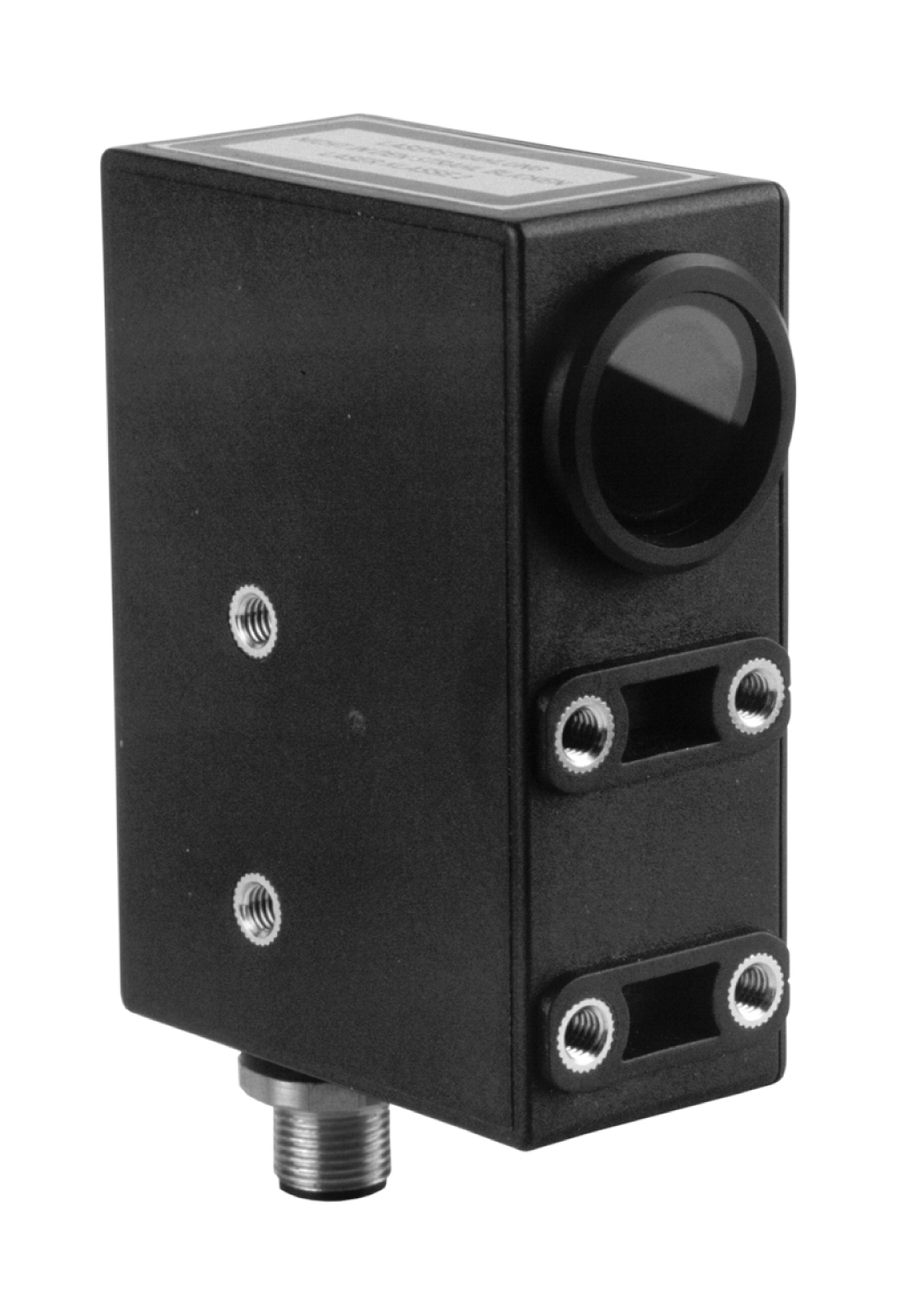

DK10-LAS/35/49

Print mark contrast sensor. Print mark contrast sensor, 800 mm detection range, red laser light, laser class 2, light/dark on, sensitivity adjuster, NPN output, PNP output, M12 plug, Laser print mark...

Print mark contrast sensor. Print mark contrast sensor, 800 mm detection range, red laser light, laser class 2, light/dark on, sensitivity adjuster, NPN output, PNP output, M12 plug, Laser print mark contrast sensor for recording very small print marks, Laser class 2, eyesafe, Adjustable sensitivity, 30 µs response time, suitable for extremely rapid scanning processes. Sensor range: 800 mm. Detection range: 3 ... 800 mm. Light source: laser diode. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class2Wave length650 nmBeam divergence< 1.5 mradPulse length1.5 µsRepetition rate108.7 kHzmax. pulse energy2.1 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 2. Wave length: 650 nm. Beam divergence: < 1.5 mrad. Pulse length: 1.5 µs. Repetition rate: 108.7 kHz. max. pulse energy: 2.1 nJ. Light spot representation: approx. 2 mm at a distance of 800 mm. Ambient light limit: . Continuous light40000 Lux: . Continuous light: 40000 Lux. MTTFd: 550 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Function indicator: LED yellow: lights up if receiver is lit (light on), lights up if receiver is not lit (dark on). Control elements: Light-on/dark-on changeover switch, sensitivity adjuster. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: ≤ 55 mA. Test input: emitter deactivation with +Ub. Switching type: light/dark on switchable. Signal output: 1 PNP and 1 NPN short-circuit protected, open collector, synchronized-switching. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 16.5 kHz. Response time: 30 µs. Product standard: EN 60947-5-2. Laser safety: IEC 60825-1:2007. Standard conformity: . Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directionsVibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions: . Shock and impact resistance: IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions. Vibration resistance: IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions. EAC conformity: TR CU 020/2011. UL approval: cULus Listed , Class 2 power source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP67. Connection: 5-pin, M12 x 1 connector. Material: . HousingPC (glass-fiber-reinforced Makrolon)Optical faceglass: . Housing: PC (glass-fiber-reinforced Makrolon). Optical face: glass. Mass: 200 g. Dimensions: . Height85.6 mmWidth33 mmDepth60.8 mm: . Height: 85.6 mm. Width: 33 mm. Depth: 60.8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
