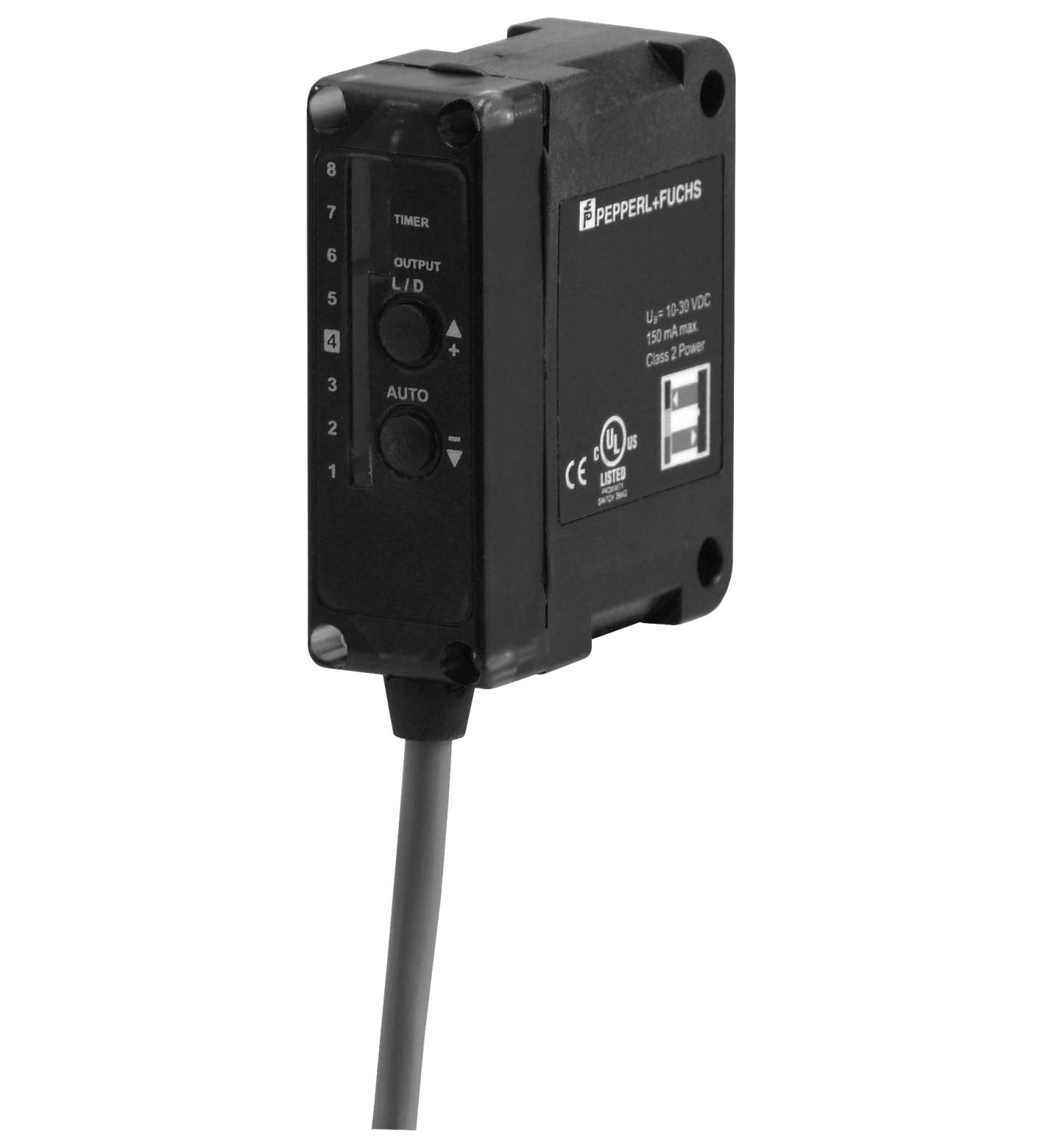

DK50-UV-609/115b/147

Print mark luminescence scanner. Print mark luminescence scanner, detection range: 609 mm, UV light, light/dark on, Teach-In, timer function, NPN output, PNP output, cable with M12 plug, Detect fluore...

Print mark luminescence scanner. Print mark luminescence scanner, detection range: 609 mm, UV light, light/dark on, Teach-In, timer function, NPN output, PNP output, cable with M12 plug, Detect fluorescent chalk marks, clear glue, tamper-proof seals and other marks that regular contrast sensors cannot, Detect marks on irregular backgrounds, Sense invisible or nearly invisible marks, Compact, space-saving construction, Integral timer available. Detection range: 50.8 ... 609.6 mm. Light source: LED. Light type: modulated UV light. Light spot representation: 25.4 mm at 203 mm sensor range. Teach-in: Incremental or automatic. Operation indicator: LED green, 15 ms off delay timer LED green (x8), for contrast level indication. Function indicator: LED red, lights up with receiver lit. Teach-in indicator: Automatic Teach-In: green contrast LEDs turn on and off once from levels 1 through 8 then level 8 LED flashes twice Incremental Teach-In: green contrast level LED position may change. Control elements: Push buttons for automatic or incremental Teach-In, L.O./D.O. mode, and/or off-delay timer. Operating voltage: 10 ... 30 V DC. No-load supply current: 65 mA. Switching type: light on / dark on. Signal output: 1 PNP and 1 NPN short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: 150 mA. Switching frequency: 600 Hz. Response time: 750 µs. UL approval: cULus. Approvals: CE, cULus. Ambient temperature: -15 ... 55 °C (5 ... 131 °F). Storage temperature: -15 ... 55 °C (5 ... 131 °F). Degree of protection: IP67. Connection: 152.4 mm fixed cable with 5-pin, M12 x 1 connector. Material: . HousingPolycarbonateOptical faceAcrylic: . Housing: Polycarbonate. Optical face: Acrylic. Mass: 91 g. Dimensions: . Height64.9 mmWidth22.9 mmDepth56 mm: . Height: 64.9 mm. Width: 22.9 mm. Depth: 56 mm

Brand	Pepperl Fuchs
Lifecycle status	active
