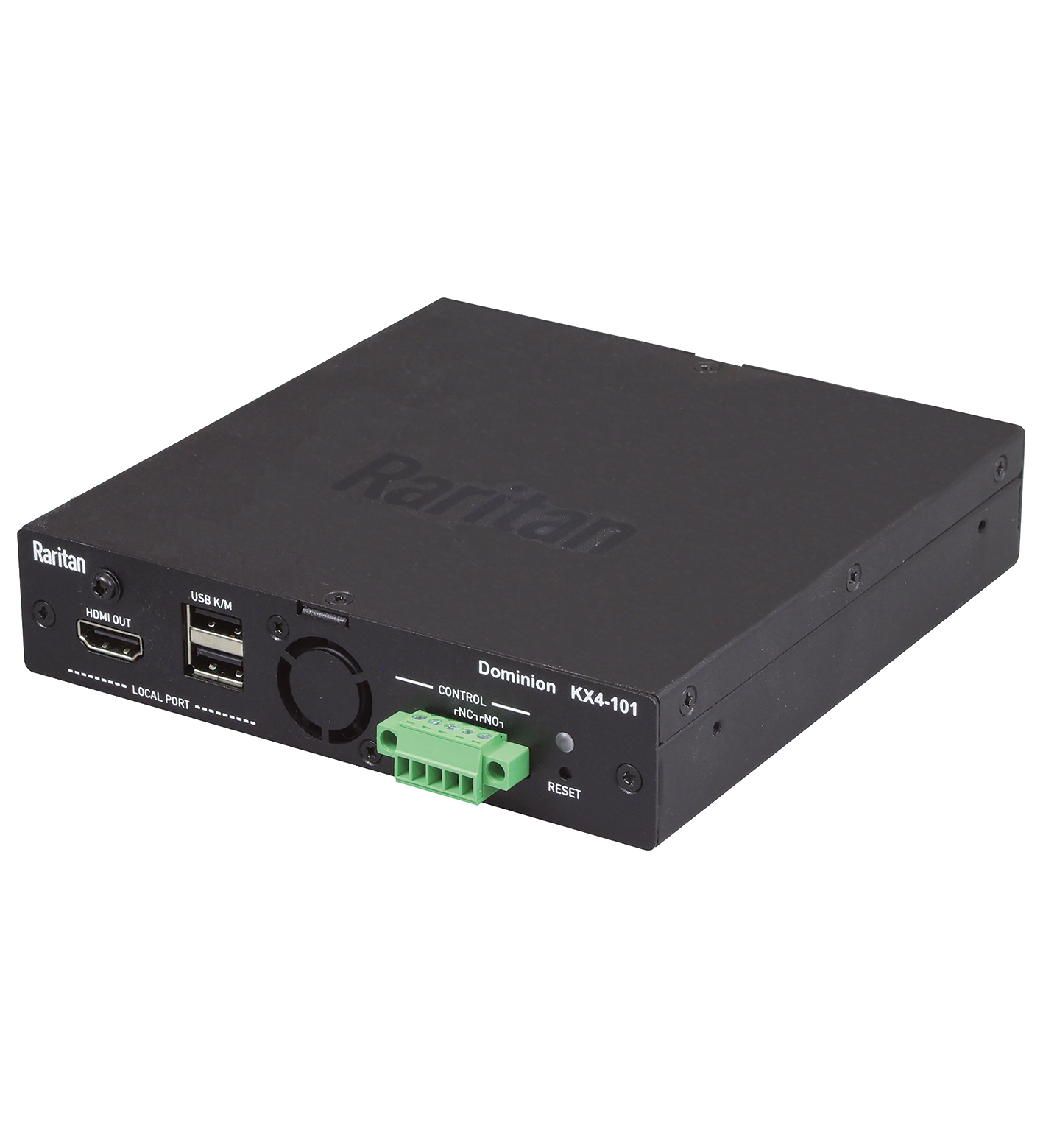

DKX4-101

Raritan Dominion KVM-over-IP Switch. Raritan Dominion KVM-over-IP Switch, Allows direct connection from a VisuNet Remote Monitor (with RM Shell 5.2 or newer) to a host system, Supports concurrent remo...

Raritan Dominion KVM-over-IP Switch. Raritan Dominion KVM-over-IP Switch, Allows direct connection from a VisuNet Remote Monitor (with RM Shell 5.2 or newer) to a host system, Supports concurrent remote and local access to an Operator Workstation. Input voltage: 5 V DC. Power supply: 100 ... 240 V 50-60Hz, 12.5 W / 20 W max/operating. Interface type: Front side: 1 x DC, 1x Ethernet, Serial Admin, 1x USB-B to Server, HDMI to Server Back side: HDMI out, USB K/M, Terminal Block. Factory Reset Button. Operating temperature: 0 ... 55 °C (32 ... 131 °F). Relative humidity: 20 % ... 80 %. Connection: Local connection: HDMI passthrough port, 2x USB-A port for keyboard and mouse control Remote connection: 1 Gigabit Ethernet (RJ-45) port IPv6/IPv4 dual stack, TCP/IP. Mass: 0.65 kg. Dimensions: 140 mm x 144 mm x 30 mm (l x w x h). Mounting: Zero-U form factor; rack mountable vertically or horizontally (bracket kit included). Scope of delivery: 1 locking power cord 1 HDMI cable 1 USB-B to USB-A cable 1 mounting bracket kit

Brand	Pepperl Fuchs
Lifecycle status	active
