Pepperl Fuchs

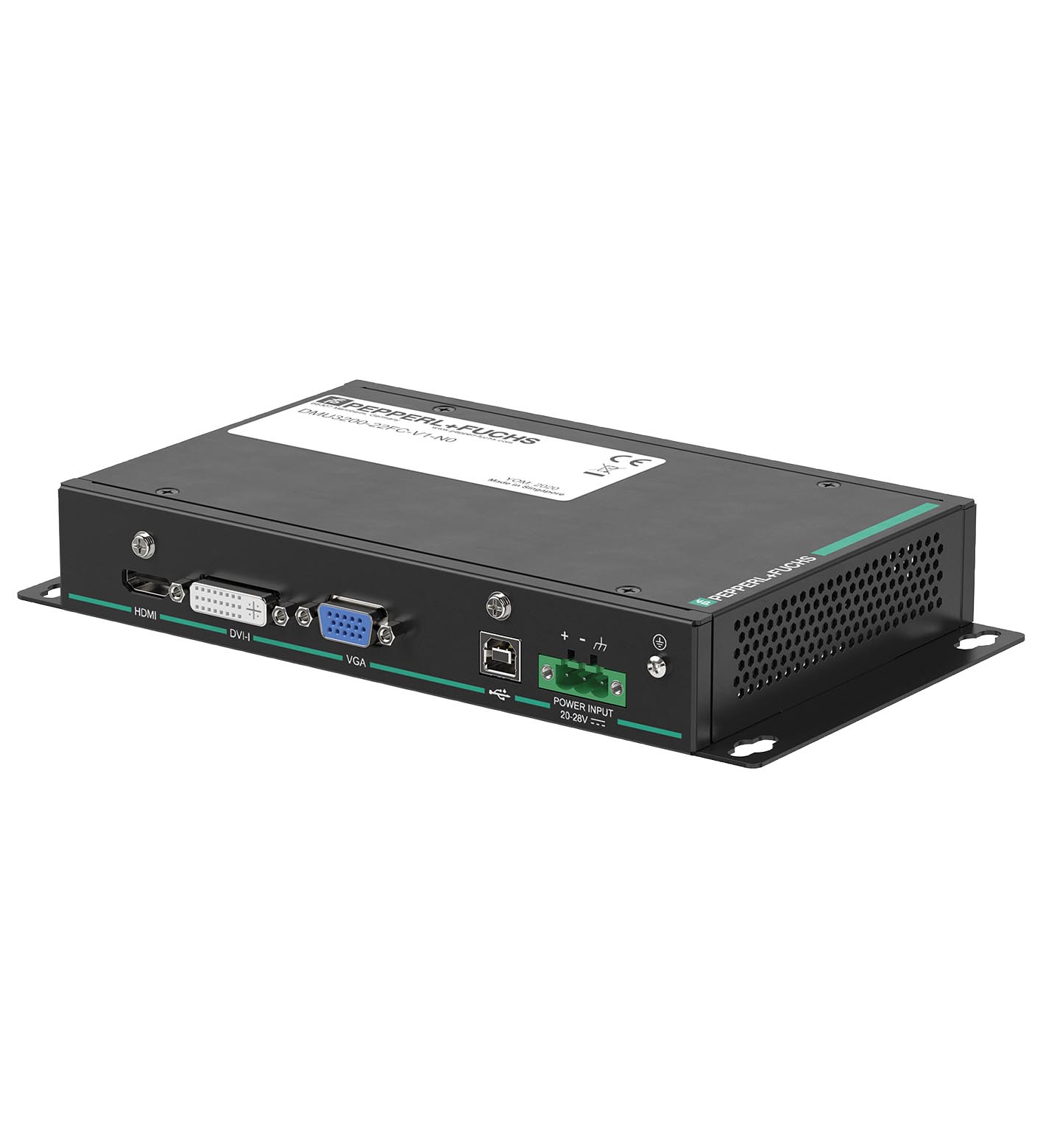

DMU3200-*

Direct Monitor Unit. Direct Monitor Unit, Allows direct connection of Display to a PC video interface, Offers HDMI, DVI and VGA interface for high connectivity flexibility, Capacitive Touchscreen support via USB interface, Supports up to Full HD screen resolution, Robust, fanless industrial design with -20 … +55 °C operating temperature range. Type: Direct Monitor Unit. Power consumption: . DC24 V d. c. (20 … 28 V d. c.) (SELV/PELV or class 2): . DC: 24 V d. c. (20 … 28 V d. c.) (SELV/PELV or class 2). Interface type: 1x Power input w/ 3 pin terminal block1x HDMI1x DVI-I1x VGA1x USB1x 3,5mm audio jack (Line-out)1x OSD Menu w/ power button. Communication: Communication Distance:HDMI (typ. 5m @ Full HD)DVI-I (typ. 5m @ Full HD)VGA (typ. 10m @ Full HD)USB (Touch-) signal (max. 5m)depends on quality of cable and environment (EMC). Resolution: Maximum resolution:Full HD (1920 x 1080). Electromagnetic compatibility: . Directive 2014/30/EUDIN EN 55035:2018-04: . Directive 2014/30/EU: DIN EN 55035:2018-04. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78. Shock resistance: Acceleration: 15 gDuration: 11 msShocks: 18 (3 per axis per direction). Vibration resistance: Amplitude / acceleration: +/- 0.075 mm // 1 gFrequency range: 10 Hz - 150 HzSweeps: 20. Degree of protection: IP 20. Material: Painted sheet metal. Mass: 1 kg. Dimensions: 226 mm x 125 mm x 33 mm. Mounting: Direct mounting to P+F Display Unit (3200 series). Supplementary information: Only available as replacement part in combination with a P+F Display Unit of 3200 series

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
