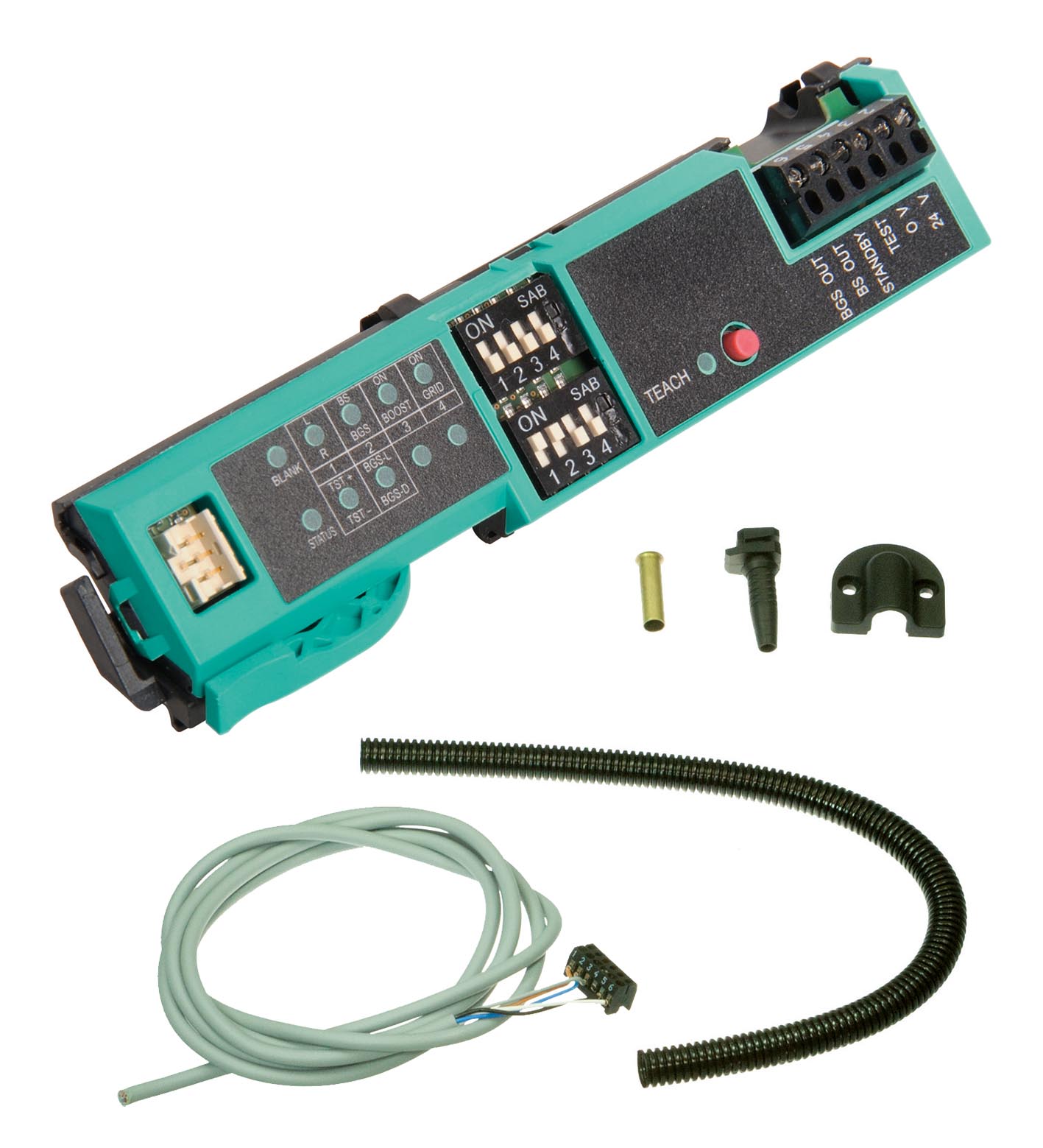

DoorScan Interface Set
Sensor module, interface. Sensor module for configurable DoorScan<sup>®</sup> presence sensor, Multi-function interface with full operation, Complete system supply for the entire system for one door,...
Sensor module, interface. Sensor module for configurable DoorScan<sup>®</sup> presence sensor, Multi-function interface with full operation, Complete system supply for the entire system for one door, Can also be used to supply the emitter and receiver modules with power, Single button commissioning with automatic Teach-in function, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 24 V DC +/- 20 %, Signal output: NPN , short-circuit protected. Operating mode: Background evaluation. Safety Integrity Level (SIL): SIL 2. Performance level (PL): PL d. Category: Cat. 2. MTTFd: 2716 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Function indicator: Interface: Red LED: detection, operating reserve, fault code Yellow LED: teach statusGreen LED: blank statusGreen LED: DIP switch status. Operating voltage: 24 V DC +/- 20 %. No-load supply current: 30 mA. Test input: High active at U = 15 V DC to 30 V DC Low active at U = < 2 V DC. Control input: Standby active at U = 11 V DC at 30 V DC. Switching type: Hinge edge light on Leading edge light on/dark on, switchable. Signal output: NPN , short-circuit protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Response time: ≤ 52 ms ≤ 200 ms in boost operating mode. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 12978. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Mounting height: max. 3500 mm. Degree of protection: IP54 (when mounted). Connection: plug strip , 6-pin Cable: screw terminal , 6-pin. Material: Cable sheathing: polyamide PA 6, black , Wall bracket: ABS. Cable: PUR, gray, 6-wire. Sheath diameterapprox. 4.8 mmBending radiusmin. 48 mmLengthL5000 mm: . Sheath diameter: approx. 4.8 mm. Bending radius: min. 48 mm. Length: 5000 mm. Mass: approx. 140 g. Dimensions: . Height24 mmDepth31 mmLength126 mm: . Height: 24 mm. Depth: 31 mm. Length: 126 mm. Scope of delivery: Sensor module, interface , Wall bracket , Screw kit , cord grip , cable , Cable sheathing , Hollow rivet. Series: DoorScan®
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
