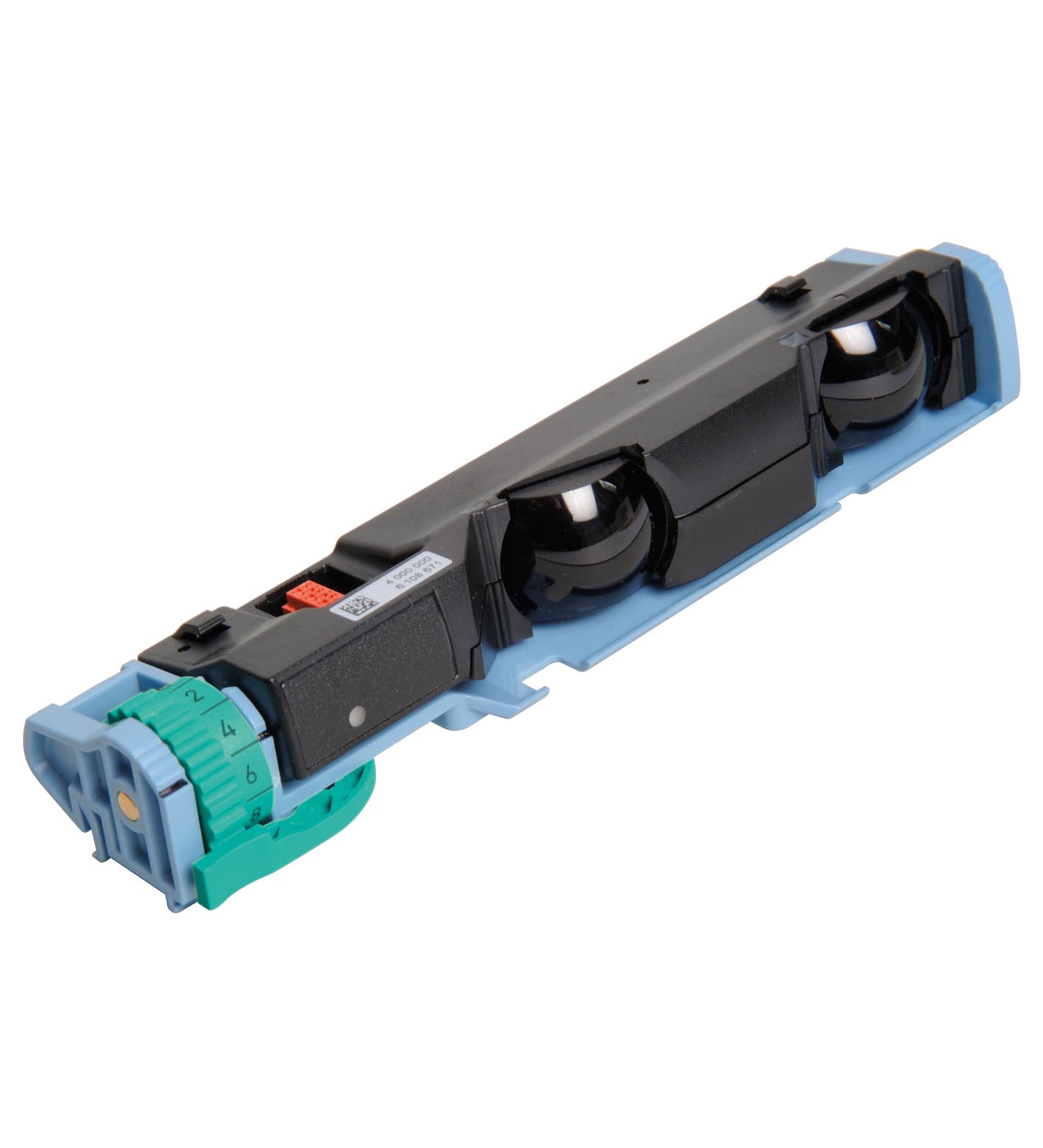

DoorScan-R
Sensor module, receiver. Sensor module for configurable DoorScan<sup>®</sup> presence sensor, Receiver module (R), Adjustment options for detection field and angle of inclination, Tool-free module mou...
Sensor module, receiver. Sensor module for configurable DoorScan<sup>®</sup> presence sensor, Receiver module (R), Adjustment options for detection field and angle of inclination, Tool-free module mounting using snap-in mechanism, Function: Open and secure, Sensor principle: Active infrared scanner. Detection range min.: 0 ... 1500 mm. Detection range max.: 0 ... 3500 mm. Light source: IRED. Light type: modulated infrared light. Black-white difference (6 %/90 %): < 2 % at 2000 mm sensor range. Operating mode: Background evaluation. Safety Integrity Level (SIL): SIL 2. Performance level (PL): PL d. Category: Cat. 2. MTTFd: 383 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Function indicator: Receiver: Red LED: detection, operating reserve, fault code. No-load supply current: 30 mA. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 12978. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Mounting height: max. 3500 mm. Degree of protection: IP54 (when mounted). Material: . Optical facePC (Polycarbonate): . Optical face: PC (Polycarbonate). Mass: approx. 50 g. Dimensions: . Height30 mmDepth35 mmLength145 mm: . Height: 30 mm. Depth: 35 mm. Length: 145 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
