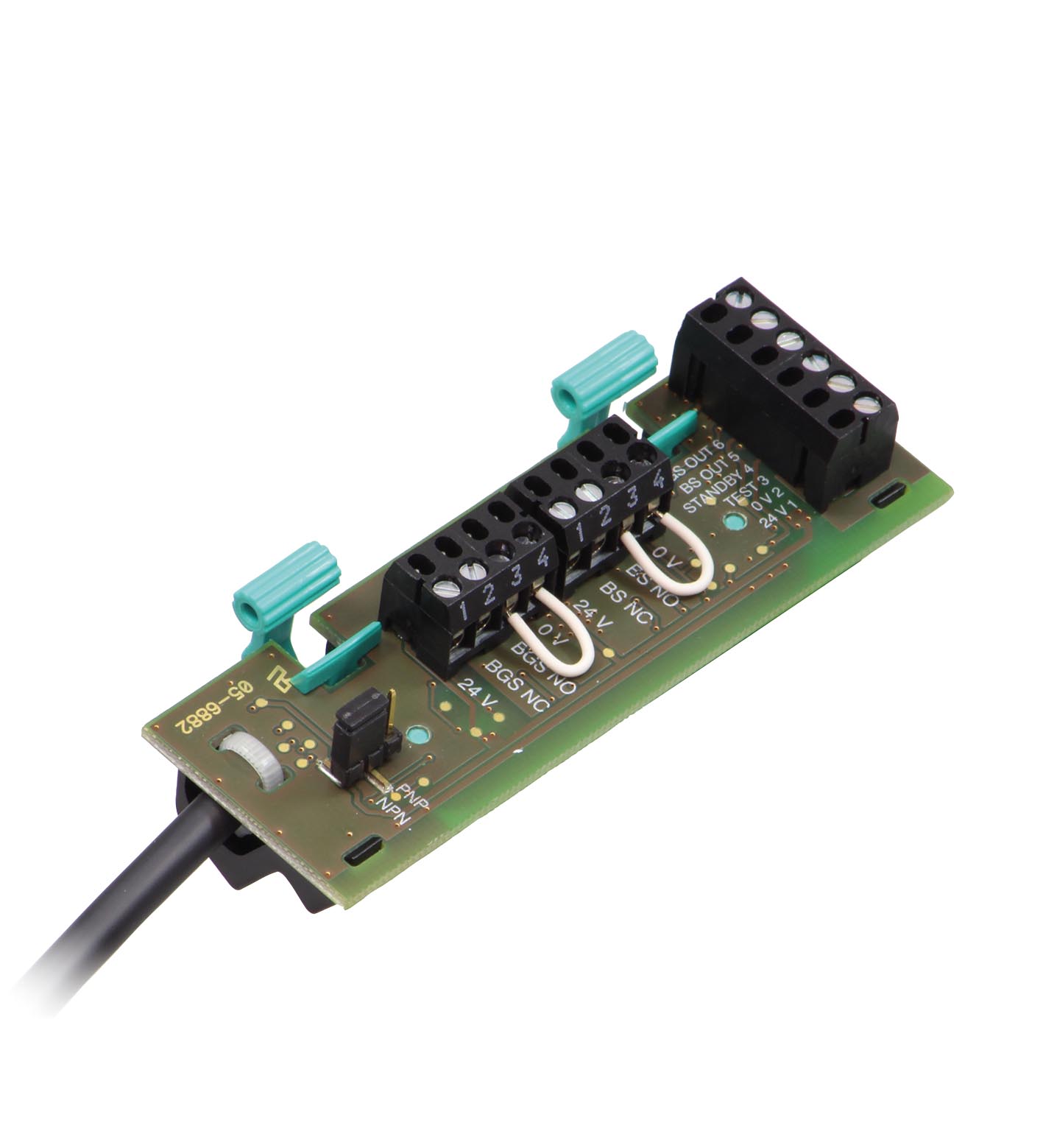

DoorScan Relay Module
Accessory DGE. Sensor module for configurable DoorScan<sup>®</sup> presence sensor, Conversion of semiconductor signals to relay output signals, Tool-free module mounting using snap-in mechanism, Oper...
Accessory DGE. Sensor module for configurable DoorScan<sup>®</sup> presence sensor, Conversion of semiconductor signals to relay output signals, Tool-free module mounting using snap-in mechanism, Operating voltage: 24 V DC ± 20 %, Signal output: Hinge side (BS): Relay, 1 alternator , Opposite hinge side (BGS): Relay, 1 alternator, Connection: plug strip , 6-pin Interface , 4-pin Relay supply. Safety Integrity Level (SIL): SIL 2. Performance level (PL): PL d. Category: Cat. 2. MTTFd: 72 a. B10d: 2 E+8. B10: 3 E+6. Control elements: Jumper for interface PNP / NPN. Operating voltage: 24 V DC ± 20 %. No-load supply current: 30 mA. Input type: Test, Standby , Relay supply. Signal output: Hinge side (BS): Relay, 1 alternator , Opposite hinge side (BGS): Relay, 1 alternator. Switching voltage: 24 V DC ± 20 %. Switching current: max. 100 mA. Response time: max. 15 ms in addition to switch-on delay for DoorScan®. De-energized delay: max. 15 ms. Directive conformity: . Machinery Directive 2006/42/ECEN 12978:2003+A1:2009 EN ISO 13849-1:2008 + AC:2009 EN 16005:2012 Chapter 4.6.8EMC Directive 2004/108/ECEN 61000-6-2:2005 EN 61000-6-3:2007+A1:2011: . Machinery Directive 2006/42/EC: EN 12978:2003+A1:2009 EN ISO 13849-1:2008 + AC:2009 EN 16005:2012 Chapter 4.6.8. EMC Directive 2004/108/EC: EN 61000-6-2:2005 EN 61000-6-3:2007+A1:2011. Standard conformity: . StandardsEN 61508-1:2010 DIN 18650-1:2010 Chapter 5.7.4 BS 7036-1:1996 Chapter 7.3.2 BS 7036-2:1996 Chapter 8.1: . Standards: EN 61508-1:2010 DIN 18650-1:2010 Chapter 5.7.4 BS 7036-1:1996 Chapter 7.3.2 BS 7036-2:1996 Chapter 8.1. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Relative humidity: 25 ... 95 % (noncondensing). Degree of protection: IP54 (when mounted). Connection: plug strip , 6-pin Interface , 4-pin Relay supply. Mass: approx. 30 g. Dimensions: . Height30 mmDepth35 mmLength81 mm: . Height: 30 mm. Depth: 35 mm. Length: 81 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
