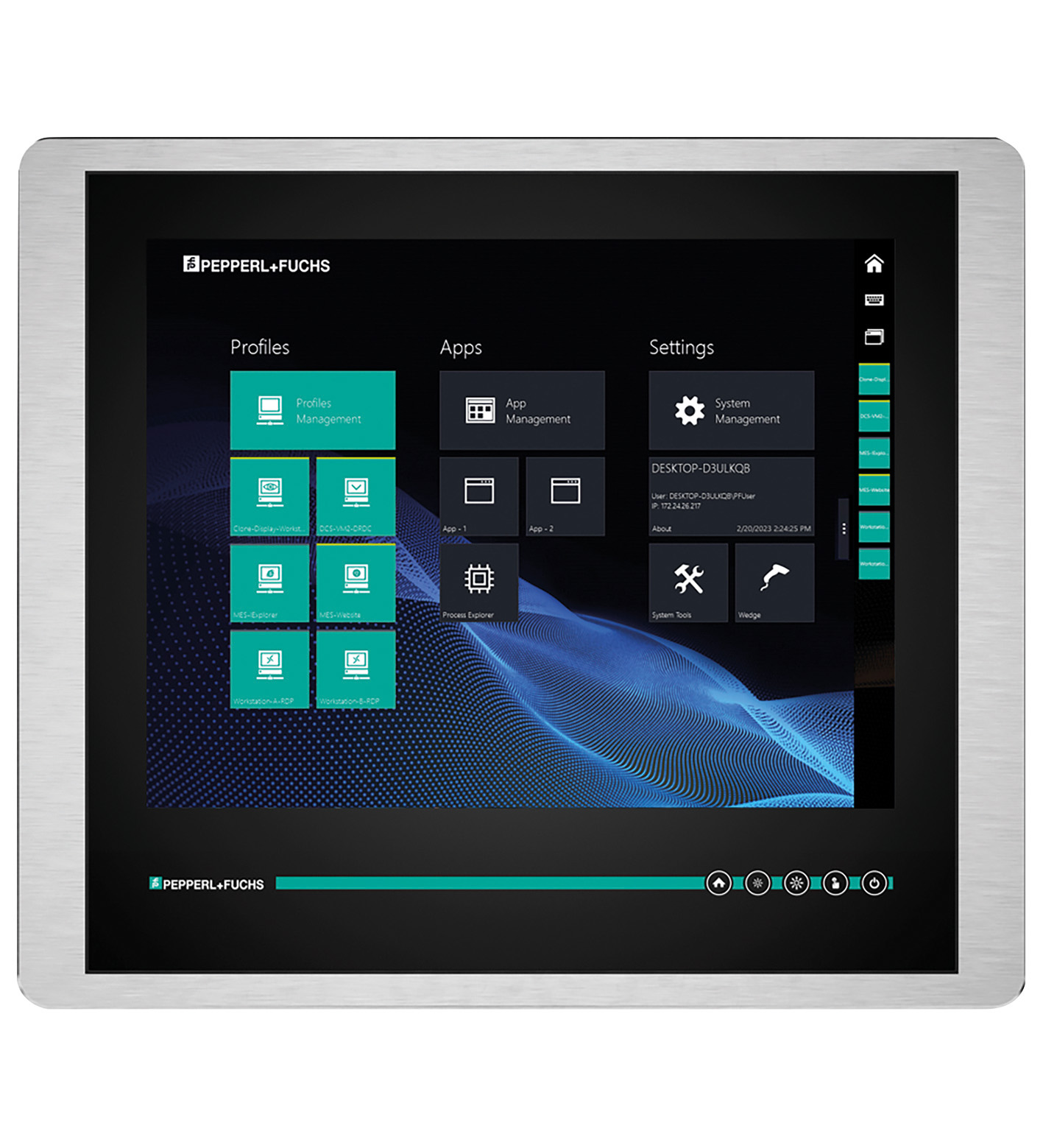

DPU1200-J2-19S*

Display Unit. Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly robust against cleaning agents and solvents due to seamless glass design, Optimized desig...

Display Unit. Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly robust against cleaning agents and solvents due to seamless glass design, Optimized design for an easy cleanability, Low-power consumption and heat dissipation due to LED backlight technology. Power consumption: average: 22 W at maximum brightness: max. 25 W. Display: . TypeLC display with LED backlight Optically bondedScreen size48.26 cm (19 inch)Resolution1280x1024 (SXGA) , Aspect ratio 5:4Color depth16.7 Mio.Contrast ratio1000:1 (typical)Brightness450 cd/m2Viewing angle170° horizontal , 160° verticalLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F): . Type: LC display with LED backlight Optically bonded. Screen size: 48.26 cm (19 inch). Resolution: 1280x1024 (SXGA) , Aspect ratio 5:4. Color depth: 16.7 Mio.. Contrast ratio: 1000:1 (typical). Brightness: 450 cd/m2. Viewing angle: 170° horizontal , 160° vertical. Life span: back lamp life: 50.000 hrs typical half life , at 25 °C (77 °F). Input devices: . Touch screenoptional: projective capacitive, 10 finger multi-touch, glove-friendly: . Touch screen: optional: projective capacitive, 10 finger multi-touch, glove-friendly. Interface type: interface v1.0 from Pepperl+Fuchs for computing units from Pepperl+Fuchs Bluetooth v4.0 , communication distance up to 30 m in open terrain (optional) , transmission power : +8 dBm. Transmitter frequency: 2.402 ... 2.48 GHz. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations) non-Bluetooth products only: . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations) non-Bluetooth products only. Radio and telecommunication terminal equipment: . Directive 2014/53/EUEN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only: . Directive 2014/53/EU: EN 301 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Bluetooth products only. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012-09: . Directive 2011/65/EU (RoHS): EN 50581:2012-09. Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: 93% at 40°C, non-condensating, according to EN 60068-2-78. Shock resistance: 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 ... 150 Hz, ± 0.075 mm, 1 G, 10 cycles per axis according to EN60068-2-6. Degree of protection: IP66 ( when mounted on the TCU or PCU from Pepperl+Fuchs ). Material: . Surfacefront: glass (optional with stainless steel bezel) Back side: powder coated aluminum: . Surface: front: glass (optional with stainless steel bezel) Back side: powder coated aluminum. Mass: approx. 11 kg. Dimensions: 524 mm x 453 mm x 35 mm. EU-type examination certificate: BVS 16 ATEX E 081 X. Marking II 3G Ex ec IIC T4 Gc [exsign] II 3D Ex tc IIIC T80 °C Dc: . Marking: II 3G Ex ec IIC T4 Gc [exsign] II 3D Ex tc IIIC T80 °C Dc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013, EN 60079-7:2015, EN 60079-31:2014. IECEx approval: IECEx BVS 16.0061X. Approved forEx ec IIC T4 Gc Ex tc IIIC T80 °C DcStandardsIEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-31:2013: . Approved for: Ex ec IIC T4 Gc Ex tc IIIC T80 °C Dc. Standards: IEC 60079-0:2011, IEC 60079-7:2015, IEC 60079-31:2013

Brand	Pepperl Fuchs
Lifecycle status	active
