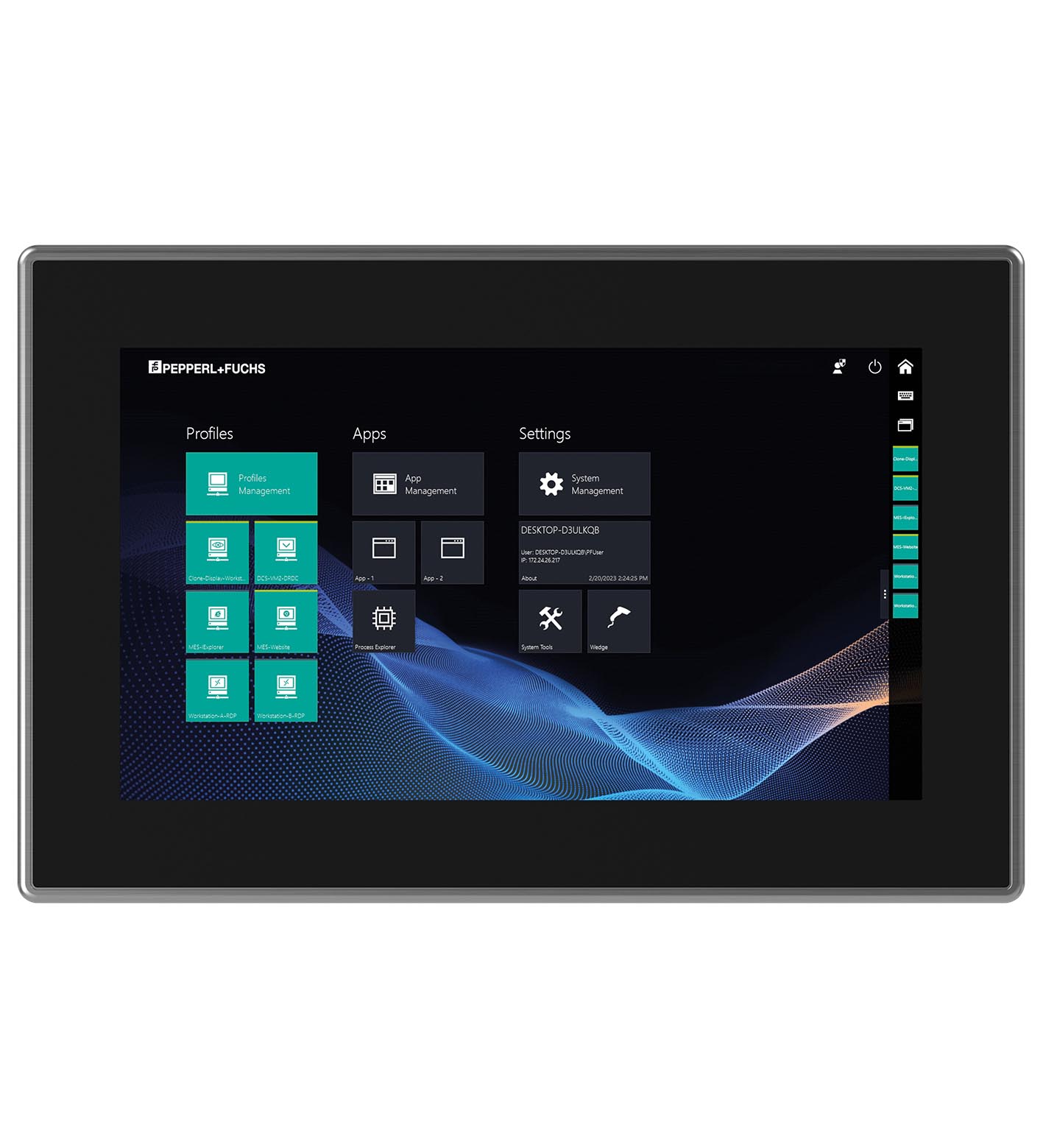

DPU3200-15FC-304A-V1-N0

Display Unit. Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly resistant to cleaning agents with stainless steel bezel and seamless glass design, Design...

Display Unit. Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly resistant to cleaning agents with stainless steel bezel and seamless glass design, Design optimized for easy cleanability, Low-power consumption and heat dissipation due to LED backlight technology. Power consumption: typical 21 W. Display: . TypeLC display with LED backlightScreen size39.62 cm (15.6 inch)Resolution1920x1080 (Full HD) , Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio800:1 (typical)Brightness450 cd/m2 (nit)Viewing angle170° in all directionsLife spanback lamp life: 50.000 hrs typical half life , at 25 °C (77 °F): . Type: LC display with LED backlight. Screen size: 39.62 cm (15.6 inch). Resolution: 1920x1080 (Full HD) , Aspect ratio 16:9. Color depth: 24 bit (16.7 M) color. Contrast ratio: 800:1 (typical). Brightness: 450 cd/m2 (nit). Viewing angle: 170° in all directions. Life span: back lamp life: 50.000 hrs typical half life , at 25 °C (77 °F). Input devices: . Touch screen10-finger multi-touch, glove friendly: . Touch screen: 10-finger multi-touch, glove friendly. Interface type: USB touch screen signal, LVDS-video signal and inverter LCD backlight pins for VisuNet FLX computing unit connection. Electromagnetic compatibility: . Directive 2014/30/EUDIN EN 55035:2018-04: . Directive 2014/30/EU: DIN EN 55035:2018-04. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78. Shock resistance: 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6. Degree of protection: Front side: IP66 Back side: IP20 (when mounted to the computing unit from Pepperl+Fuchs). Material: Front bezel: Stainless steel AISI304 (glass, silicone gasket)Backside: Painted aluminum sheet metal. Surfacefront: glass (optional with stainless steel bezel): . Surface: front: glass (optional with stainless steel bezel). Mass: approx. 4 kg. Dimensions: 434 mm x 283 mm x 24 mm. Cut out dimensions: 401.5 mm x 259 mm +/- 1 mm. Certificate: Please refer to the VisuNet FLX System and VisuNet FLX Panel documentation.

Brand	Pepperl Fuchs
Lifecycle status	active
