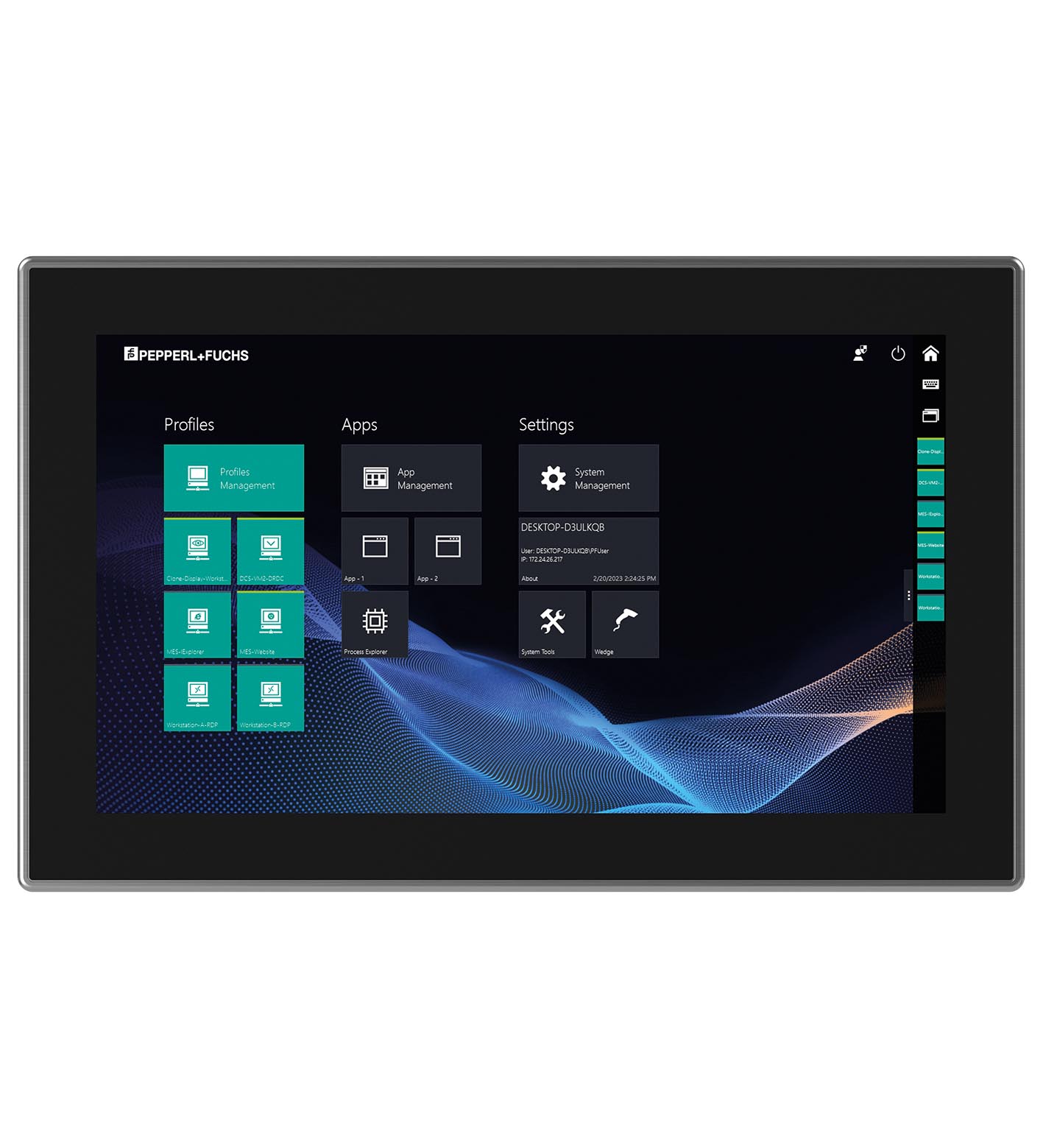

DPU3200-22FC-304A-V1-N0
Display Unit. Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly resistant to cleaning agents with stainless steel bezel and seamless glass design, Design...
Display Unit. Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly resistant to cleaning agents with stainless steel bezel and seamless glass design, Design optimized for easy cleanability, Low-power consumption and heat dissipation due to LED backlight technology. Power consumption: typical 28 W. Display: . TypeLC display with LED backlightScreen size54.61 cm (21.5 inch)Resolution1920x1080 (Full HD) , Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratio5000:1 (typical)Brightness300 cd/m2 (nit)Viewing angle178° in all directionsLife spanBack lamp life: 50.000 hrs typical half life , at 20 °C (68 °F): . Type: LC display with LED backlight. Screen size: 54.61 cm (21.5 inch). Resolution: 1920x1080 (Full HD) , Aspect ratio 16:9. Color depth: 24 bit (16.7 M) color. Contrast ratio: 5000:1 (typical). Brightness: 300 cd/m2 (nit). Viewing angle: 178° in all directions. Life span: Back lamp life: 50.000 hrs typical half life , at 20 °C (68 °F). Input devices: . Touch screen10-finger multi-touch, glove friendly Capacitive touch, optical bonding: . Touch screen: 10-finger multi-touch, glove friendly Capacitive touch, optical bonding. Interface type: USB touch screen signal, LVDS-video signal and inverter LCD backlight pins for VisuNet FLX computing unit connection. Electromagnetic compatibility: . Directive 2014/30/EUDIN EN 55035:2018-04: . Directive 2014/30/EU: DIN EN 55035:2018-04. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78. Shock resistance: 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6. Degree of protection: Front side: IP66 Back side: IP20 (when mounted to the computing unit from Pepperl+Fuchs). Material: Front bezel: Stainless steel AISI304 (glass, silicone gasket)Backside: Painted aluminum sheet metal. Surfacefront: glass (optional with stainless steel bezel): . Surface: front: glass (optional with stainless steel bezel). Mass: approx. 6 kg. Dimensions: 567 mm x 358 mm x 23.5 mm. Cut out dimensions: 535 mm x 333.5 mm +/- 1 mm. Certificate: Please refer to the VisuNet FLX System and VisuNet FLX Panel documentation.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
