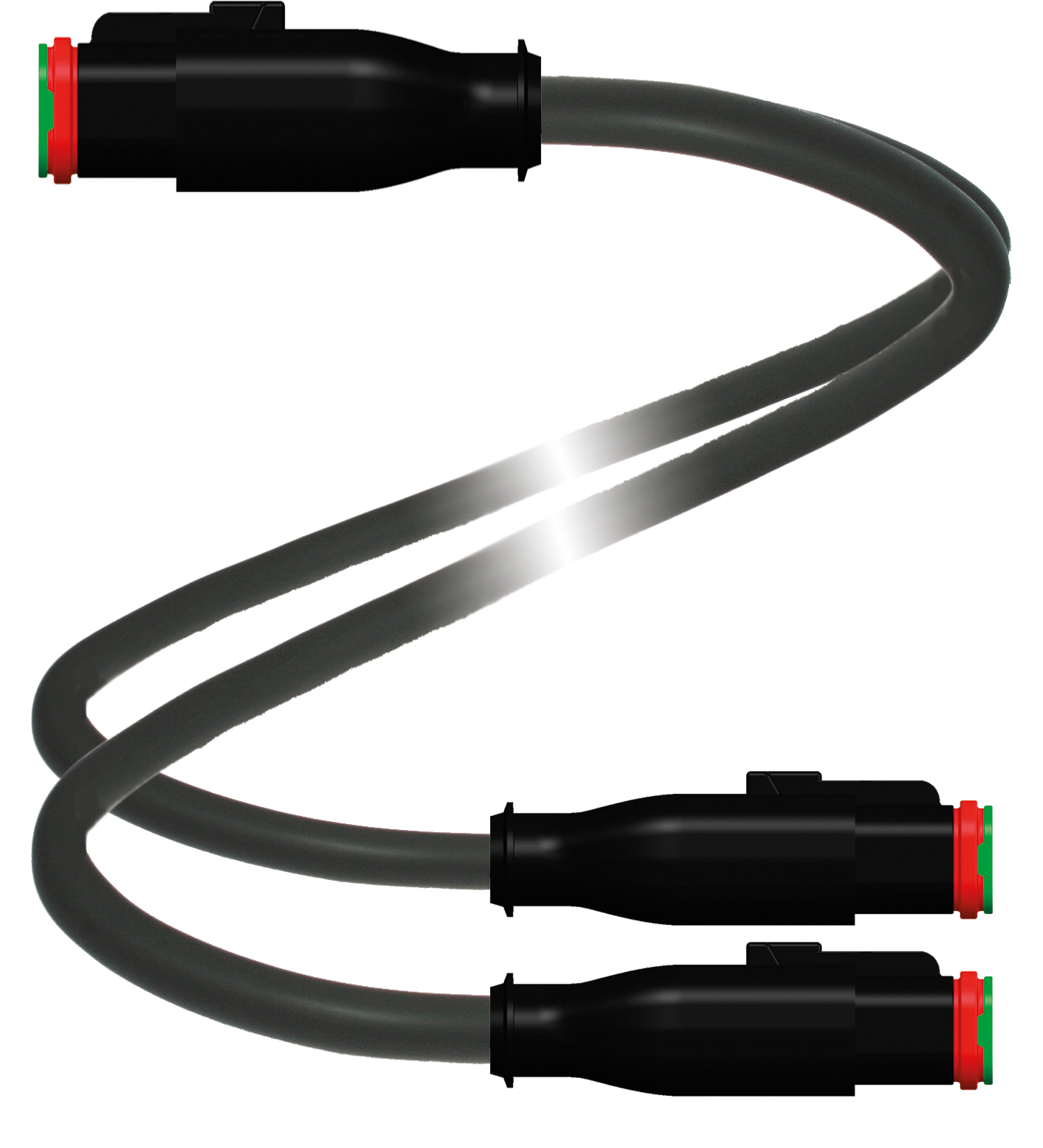

DT2S-G/DT2S-G-3M-PUR-Y-DT6S-G

Y connection cable. Y connection cable Deutsch socket straight 6-pin to 2x Deutsch socket straight 2-pin, 2x PUR cable black, oil resistant. Connector 1: . ConnectionsocketConstruction typeDeutsch con...

Y connection cable. Y connection cable Deutsch socket straight 6-pin to 2x Deutsch socket straight 2-pin, 2x PUR cable black, oil resistant. Connector 1: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins2: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 2. Connector 2: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins2: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 2. Connector 3: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins6: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 6. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Halogen-free: IEC 60754-1. Oil resistance: DIN EN 60811-2-1. Ambient temperature: . Plug connector-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-40 ... 85 °C (-40 ... 185 °F)Cable, flexing-25 ... 85 °C (-13 ... 185 °F): . Plug connector: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -40 ... 85 °C (-40 ... 185 °F). Cable, flexing: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Plug connector: . Loosening protectionavailable: . Loosening protection: available. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter5 mmBending radius> 8 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 7021)Number of cores2Core cross section0.75 mm2 / 18 AWGCores colorCore 1: blue Core 2: brown Core 5: brown Core 6: blueCore construction42 x 0.15 mm ∅LengthL3 mCable codeLi 9Y 11Y 2 x 0,75: . Sheath diameter: 5 mm. Bending radius: > 8 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 7021). Number of cores: 2. Core cross section: 0.75 mm2 / 18 AWG. Cores color: Core 1: blue Core 2: brown Core 5: brown Core 6: blue. Core construction: 42 x 0.15 mm ∅. Length: 3 m. Cable code: Li 9Y 11Y 2 x 0,75. Mass: 239.5 g. PWIS free: yes. Halogen-free: yes. Plug connector: . BodyPA, blackContact surfaceNiFlammabilityV-0: . Body: PA, black. Contact surface: Ni. Flammability: V-0. Cable: . SheathingPUR based on polyetherCore insulationPPUV resistanceyesChemical resistancegoodOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyes: . Sheathing: PUR based on polyether. Core insulation: PP. UV resistance: yes. Chemical resistance: good. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes

Brand	Pepperl Fuchs
Lifecycle status	active
