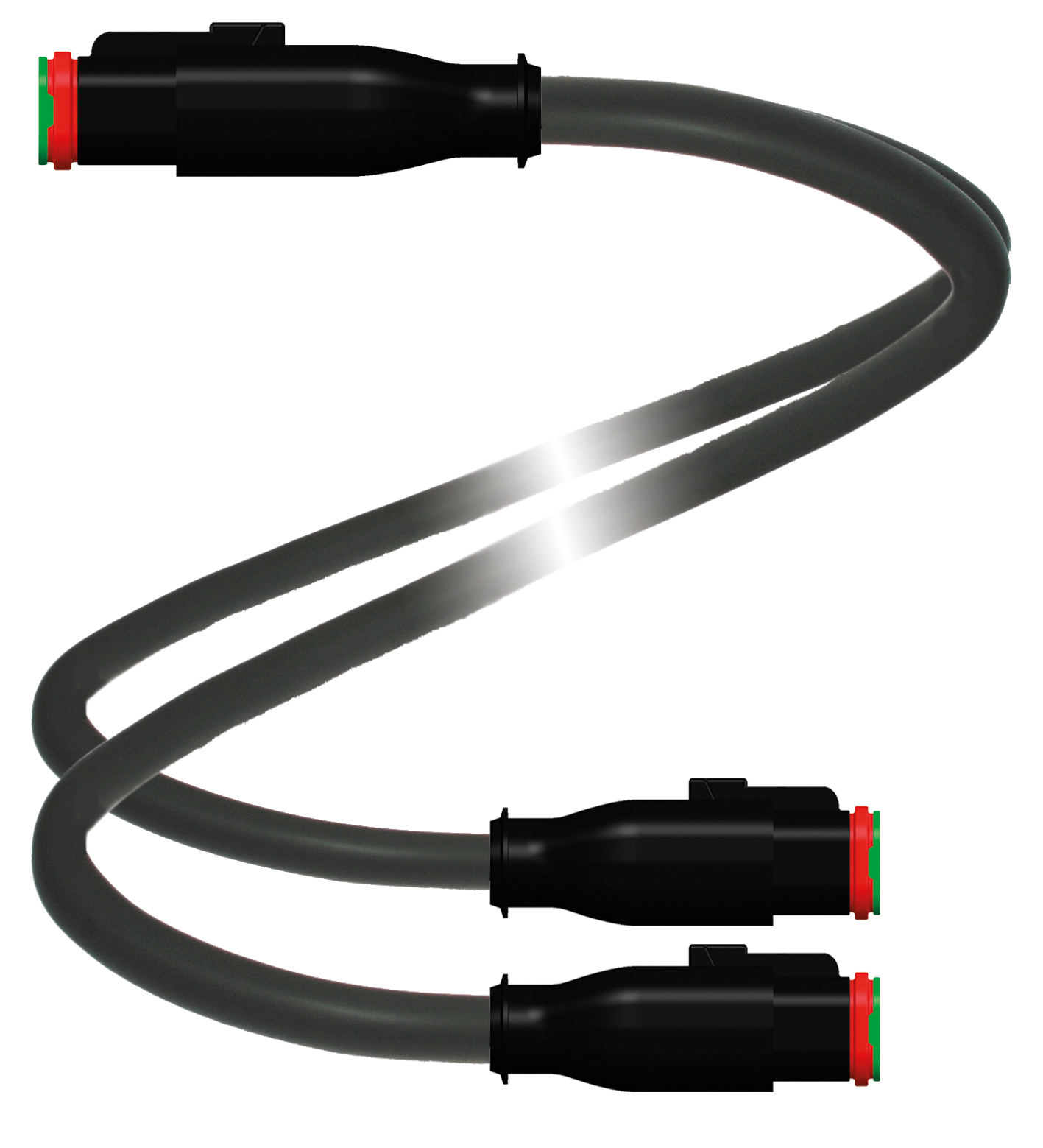

DT2S/DT2S-G-1M-PUR-O1-T-DT4S-G

Y connection cable. Y connection cable Deutsch socket straight 4-pin to 2x Deutsch socket straight 2-pin, 2x PUR cable black, drag chain suitable. Connector 1: . ConnectionsocketConstruction typeDeuts...

Y connection cable. Y connection cable Deutsch socket straight 4-pin to 2x Deutsch socket straight 2-pin, 2x PUR cable black, drag chain suitable. Connector 1: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins2: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 2. Connector 2: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins2: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 2. Connector 3: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins4: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 4. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815 / DIN EN 50267-2-1. Oil resistance: DIN EN 60811-2-1. Ambient temperature: . Plug connector-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-50 ... 105 °C (-58 ... 221 °F)Cable, flexing-30 ... 105 °C (-22 ... 221 °F): . Plug connector: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -50 ... 105 °C (-58 ... 221 °F). Cable, flexing: -30 ... 105 °C (-22 ... 221 °F). Pollution degree: 3. Plug connector: . Loosening protectionavailable: . Loosening protection: available. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.5 mmBending radius> 10 x cable diameter, movable installation > 8 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 7021)Number of cores3Core cross section0.5 mm2Cores colorCore 1: brown Core 2: blue Core 3: brown Core 4: blueCore construction28 x 0.15 mm ∅ 1 x symmetrically twistedLengthL1 mCable codeLi 9Y 11Y 3 x 0,50: . Sheath diameter: 4.5 mm. Bending radius: > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 7021). Number of cores: 3. Core cross section: 0.5 mm2. Cores color: Core 1: brown Core 2: blue Core 3: brown Core 4: blue. Core construction: 28 x 0.15 mm ∅ 1 x symmetrically twisted. Length: 1 m. Cable code: Li 9Y 11Y 3 x 0,50. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distancemax. 10 mAccelerationmax. 10 m/s2: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Traverse distance: max. 10 m. Acceleration: max. 10 m/s2. Halogen-free: yes. Plug connector: . BodyPA, blackContact surfaceNiFlammabilityV-0: . Body: PA, black. Contact surface: Ni. Flammability: V-0. Cable: . SheathingPUR based on polyetherCore insulationPPSalt water resistanceyesUV resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Core insulation: PP. Salt water resistance: yes. UV resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
