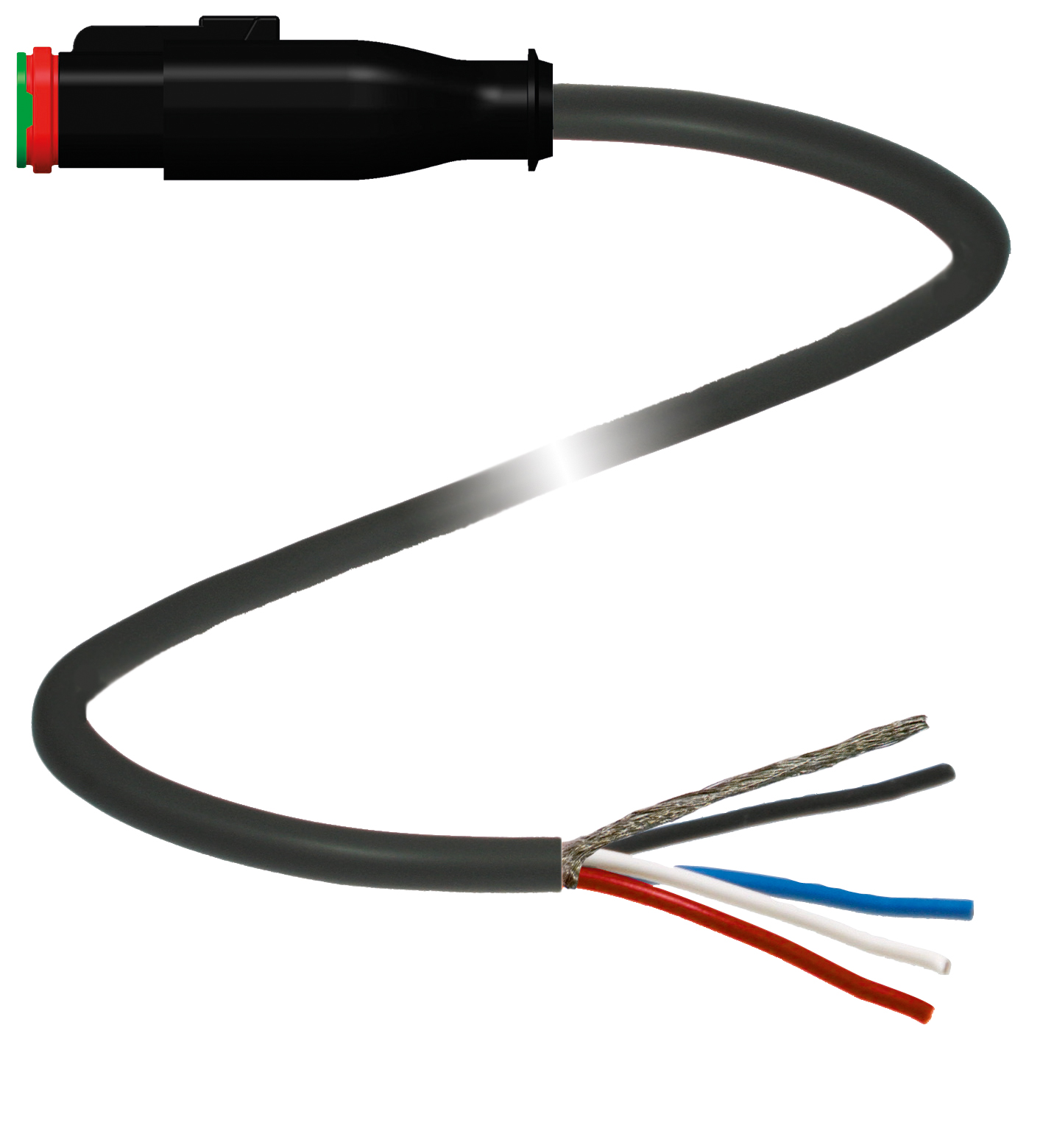

DT4S-G-BK10,5M-PUR-O2/CAN

Cable socket, shielded. DeviceNet/CANOpen bus cable female cordset Deutsch socket straight 4-pin, PUR cable 4-core twisted pairs black, shielded, UL approved, drag chain suitable, outdoor. Customizati...

Cable socket, shielded. DeviceNet/CANOpen bus cable female cordset Deutsch socket straight 4-pin, PUR cable 4-core twisted pairs black, shielded, UL approved, drag chain suitable, outdoor. Customization: core ends stripped and tinned L1 = 13.3 mmL2 = 4.5 mm. Connector 1: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins4: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 4. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Flammability: UL 1581 , IEC 60332-1-2. Halogen-free: IEC 60754-1. Chemical resistance: DIN EN 60811-2-1. Microbial resistance: DIN EN 50525-2-21 / DIN VDE 0282-10. Hydrolysis resistance: DIN EN 50525-2-21. Oil resistance: DIN EN 60811-2-1. Ambient temperature: . Plug connector-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-50 ... 105 °C (-58 ... 221 °F)Cable, flexing-30 ... 105 °C (-22 ... 221 °F): . Plug connector: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -50 ... 105 °C (-58 ... 221 °F). Cable, flexing: -30 ... 105 °C (-22 ... 221 °F). Pollution degree: 3. Plug connector: . Loosening protectionavailableShieldingshield connected to pin 2: . Loosening protection: available. Shielding: shield connected to pin 2. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, single bendSheath stripping forcemax. 80 N / 500 mmSheath colorblack (similar to RAL 9005)Number of cores4Core cross section0.34 mm2Cores colorCore 1: red Core 2: black Core 3: white Core 4: blueCore construction19 x 0.15 mm ∅ twisted pairsShieldtinned copper braiding, 85 % coverageLengthL10.5 mCable codeLi 9Y C11Y 2 x 2 x 0,34: . Sheath diameter: 6 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, single bend. Sheath stripping force: max. 80 N / 500 mm. Sheath color: black (similar to RAL 9005). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: red Core 2: black Core 3: white Core 4: blue. Core construction: 19 x 0.15 mm ∅ twisted pairs. Shield: tinned copper braiding, 85 % coverage. Length: 10.5 m. Cable code: Li 9Y C11Y 2 x 2 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 3000000Motion velocitymax. 2.5 m/sTraverse distance0.51 mAccelerationmax. 12 m/s2: . Drag chain cycles: min. 3000000. Motion velocity: max. 2.5 m/s. Traverse distance: 0.51 m. Acceleration: max. 12 m/s2. Mass: 570.5 g. PWIS free: yes. Halogen-free: yes. Plug connector: . BodyPA, blackContact surfaceNiFlammabilityV-0: . Body: PA, black. Contact surface: Ni. Flammability: V-0. Cable: . SheathingPUR based on polyetherCore insulationPPSalt water resistanceyesOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Core insulation: PP. Salt water resistance: yes. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
