Pepperl Fuchs

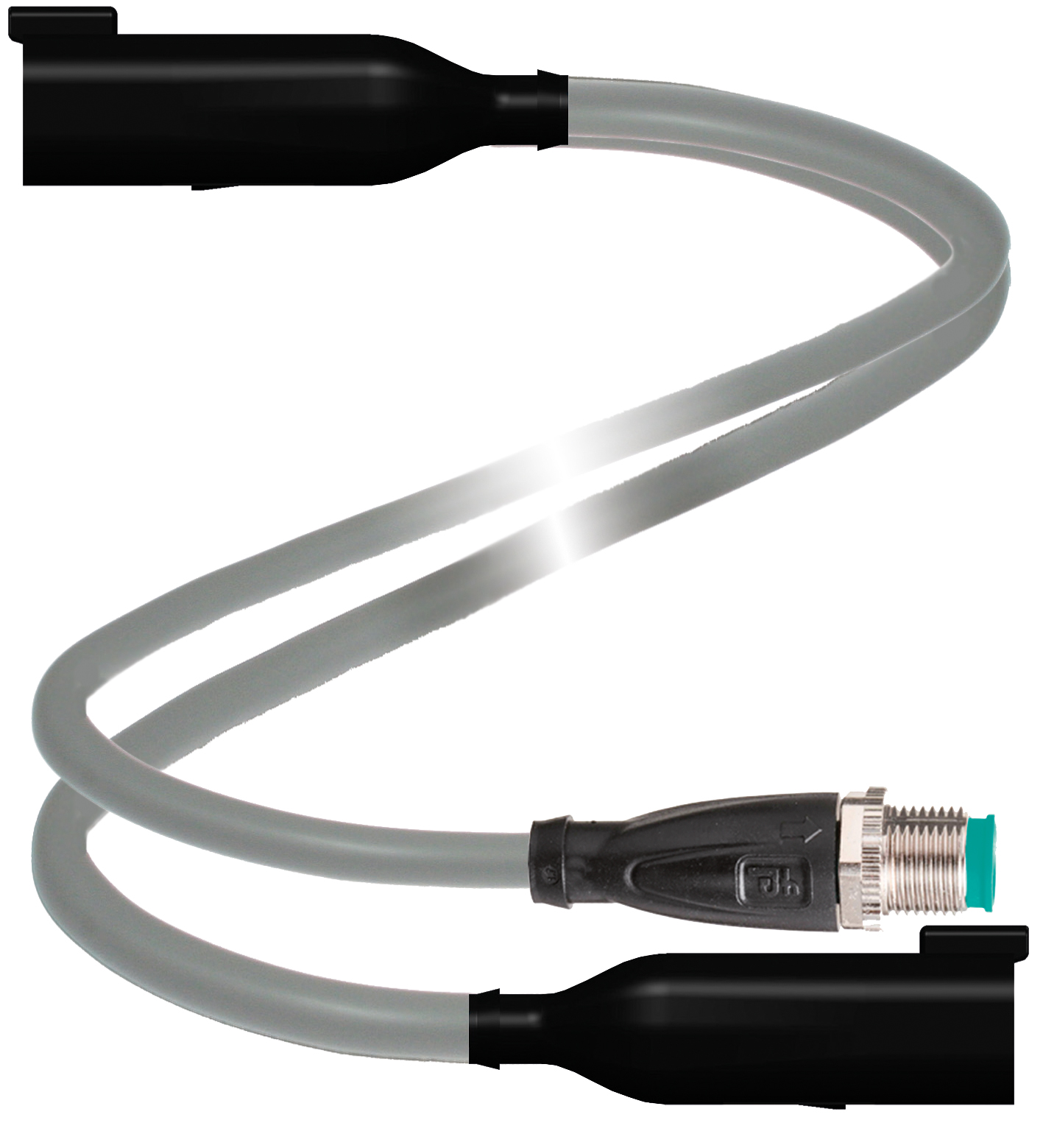

DTM2P-TEE-PVC-V11S/DTM2P-HOE

Y connection cable. Y connection cable Deutsch plug straight 2-pin to M12 plug straight A-coded 3-pin / Deutsch plug straight 2-pin, PVC cable grey. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins2: . Connection: plug. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 2. Connector 3: . ConnectionplugConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins2: . Connection: plug. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 2. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-55 ... 125 °C (-67 ... 257 °F)Connector 3-55 ... 125 °C (-67 ... 257 °F)Cable, fixed installation-25 ... 70 °C (-13 ... 158 °F)Cable, flexing-5 ... 70 °C (23 ... 158 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -55 ... 125 °C (-67 ... 257 °F). Connector 3: -55 ... 125 °C (-67 ... 257 °F). Cable, fixed installation: -25 ... 70 °C (-13 ... 158 °F). Cable, flexing: -5 ... 70 °C (23 ... 158 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling , hexagon nut SW = 14 mmMating cyclesmin. 100Degree of protectionIP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling , hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP68 / IP69. Connector 2: . Loosening protectionavailableMating cyclesmin. 100Degree of protectionIP68: . Loosening protection: available. Mating cycles: min. 100. Degree of protection: IP68. Connector 3: . Loosening protectionavailableMating cyclesmin. 100Degree of protectionIP68: . Loosening protection: available. Mating cycles: min. 100. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installationSheath stripping forcemax. 80 N / 300 mmSheath colorgrey (similar to RAL 7001)Number of cores3Core cross section0.34 mm2Cores colorCore 1: brown Core 2: blueCore construction19 x 0.15 mm ∅LengthLL1 = 120 mm L2 = 230 mmCable codeLi Y YM 3 x 0,34: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation. Sheath stripping force: max. 80 N / 300 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 3. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: blue. Core construction: 19 x 0.15 mm ∅. Length: L1 = 120 mm L2 = 230 mm. Cable code: Li Y YM 3 x 0,34. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . BodyPA, blackContact surfaceNiFlammabilityV-0: . Body: PA, black. Contact surface: Ni. Flammability: V-0. Connector 3: . BodyPA, blackContact surfaceNiFlammabilityV-0: . Body: PA, black. Contact surface: Ni. Flammability: V-0. Cable: . SheathingPVCCore insulationPVCFlammabilityflame-resistant: . Sheathing: PVC. Core insulation: PVC. Flammability: flame-resistant

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
