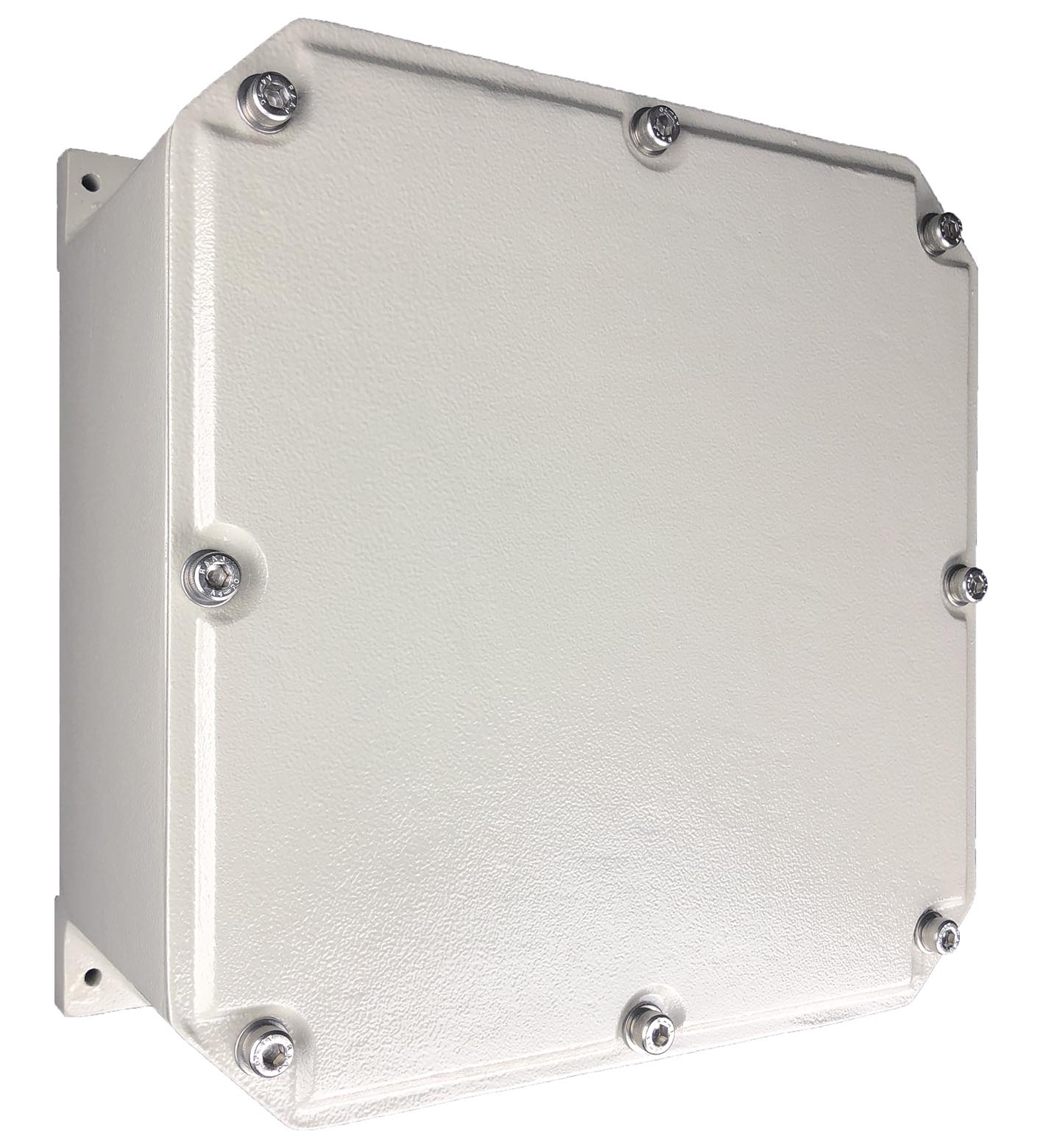

EA/DA*

Terminal Box Ex e, Aluminum. Aluminum alloy, Various enclosure size and design variants, Ex e and Ex tD certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Customizable configuration as pe...

Terminal Box Ex e, Aluminum. Aluminum alloy, Various enclosure size and design variants, Ex e and Ex tD certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Customizable configuration as per specification, Degree of protection IP66, Explosion protection: Ex e, Enclosure: aluminum alloy. Operating voltage: 690 V max.. Operating current: application-specific. Enclosure cover: fully detachable. Cover fixing: stainless steel socket cap head screws. Screwssee PDF data sheetMaterial of screwsstainless steelYield stressmin. 1100 N/mm2: . Screws: see PDF data sheet. Material of screws: stainless steel. Yield stress: min. 1100 N/mm2. Cover seal: chloroprene. Degree of protection: IP66. Cable entry: see PDF data sheet cable glands as per specification. Terminal assembly: . Number of railssee PDF data sheetNumber of terminals per railsee PDF data sheet: . Number of rails: see PDF data sheet. Number of terminals per rail: see PDF data sheet. Material: . Enclosurealuminum alloyFinishEA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange: . Enclosure: aluminum alloy. Finish: EA: epoxy coated RAL 7032 DA: epoxy coated X15 Orange. Mass: see PDF data sheet valid for empty enclosure, will increase according to integrated components. Dimensions: see PDF data sheet. Mounting: see PDF data sheet. Grounding: see PDF data sheet. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F) depending on integrated components. EU-type examination certificate: SIRA 09 ATEX 3178X. Marking II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °CMaximum power dissipationsee PDF data sheet: . Marking: II 2 GD Ex e IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +55 °C T5/T95 °C @ Ta +55 °C. Maximum power dissipation: see PDF data sheet. IECEx approval: IECEx SIM 08.0017X. Degree of protection: EN60529. CE marking: 0102. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
