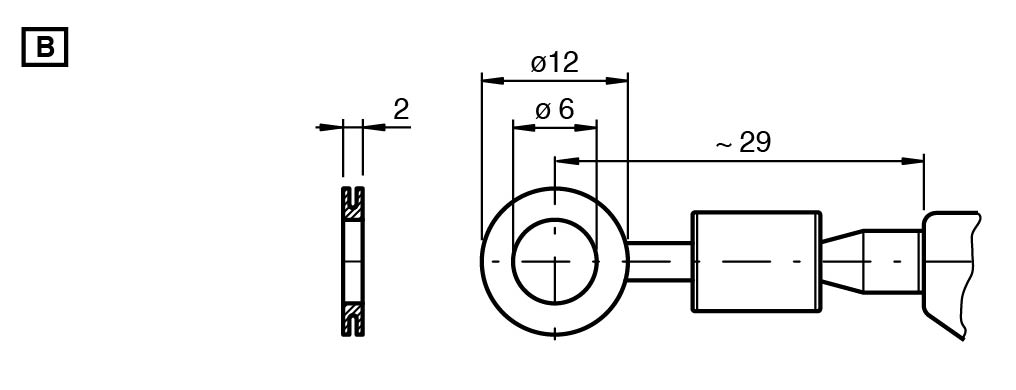

ECA10TL-03BNY-B20BD:01

Cable pull rotary encoder. Cable pull rotary encoder with J1939 interface, Cable drum anodized, Plastic sheathed measuring cable, Solid yet lightweight plastic construction, Compact and very sleek des...

Cable pull rotary encoder. Cable pull rotary encoder with J1939 interface, Cable drum anodized, Plastic sheathed measuring cable, Solid yet lightweight plastic construction, Compact and very sleek design, Coupling-free adaptation, Interface: J1939, Detection type: magnetic sampling, Construction type: 80 mm, Interface type: J1939. Detection type: magnetic sampling. Device type: Target line with J1939 interface. Measuring length: 3000 mm. Construction type: 80 mm. Resolution: Cable pull:Design 80 mm: 0.056 mm Encoder: 24 bit (12 bit/revolution). LED green: Operating mode. LED red: wrong baud rate. Operating voltage: 9 ... 30 V DC (with galvanic isolation). Power consumption: ≤ 1.2 W. Time delay before availability: < 250 ms. Output code: binary code. Code course (counting direction): adjustable. Interface type: J1939. Resolution: . Single turn12 BitMultiturn12 BitOverall resolution24 Bit: . Single turn: 12 Bit. Multiturn: 12 Bit. Overall resolution: 24 Bit. Transfer rate: min. 20 kBit/s , max. 1 MBit/s. Cycle time: ≥ 1 ms. Standard conformity: ISO 11898. Connector: M12 connector, 5 pin. Degree of protection: acc. DIN EN 60529. Connection sideEncoder: IP65 Cable pull: IP50: . Connection side: Encoder: IP65 Cable pull: IP50. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 0.55 mm. Material: . Housingnickel-plated steelCable pullLuranyl® or Lexan 920FlangeAluminumRopeStainless steel 1.4401/316, PA sheathing: . Housing: nickel-plated steel. Cable pull: Luranyl® or Lexan 920. Flange: Aluminum. Rope: Stainless steel 1.4401/316, PA sheathing. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active
