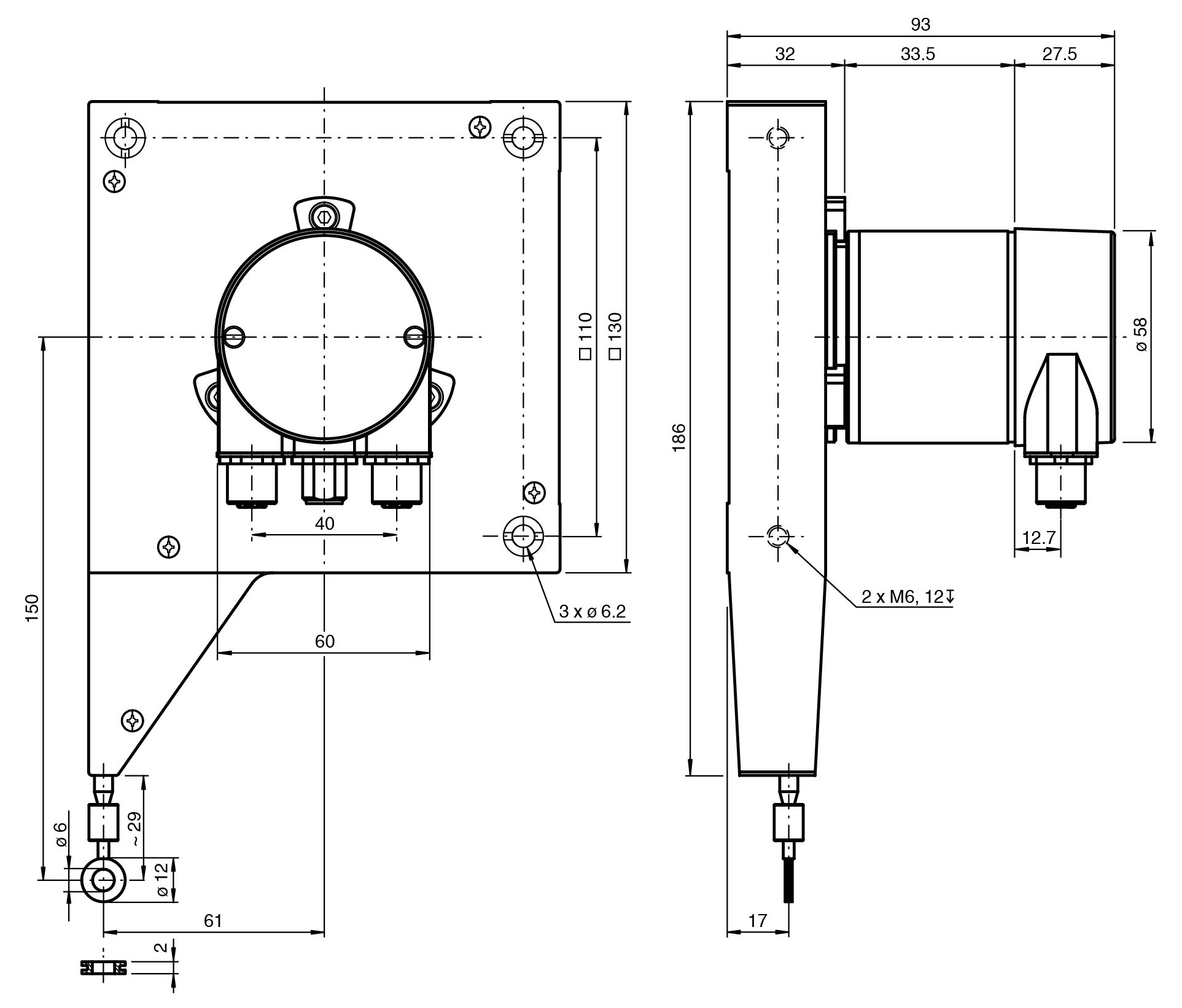

ECA10TL-05BNP-B25AZ:OE

Cable pull rotary encoder. Cable pull rotary encoder with EtherNet/IP interface, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to pr...

Cable pull rotary encoder. Cable pull rotary encoder with EtherNet/IP interface, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Wide range of mounting options, Rust and acid-resistant measuring cable, Interface: EtherNet/IP, Detection type: photoelectric sampling, Construction type: 130 mm, Interface type: EtherNet/IP, Physical : Ethernet. Detection type: photoelectric sampling. Device type: Target Line with EtherNet/IP interface. Measuring length: 5000 mm. Construction type: 130 mm. Resolution: Cable pull:Design 130 mm: 0.047 mm Encoder: 25 Bit (13 Bit/revolution). Operating voltage: 10 ... 30 V DC. Power consumption: approx. 4 W. Output code: binary code. Code course (counting direction): adjustable. Interface type: EtherNet/IP. Resolution: . Single turn13 BitMultiturn12 BitOverall resolution25 Bit: . Single turn: 13 Bit. Multiturn: 12 Bit. Overall resolution: 25 Bit. Physical: Ethernet. Transfer rate: 100 MBit/s. Connector: Ethernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded. Degree of protection: according DIN EN 60529 shaft side: IP64 Cable pull: IP50. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 0.55 mm. Material: . Housingnickel-plated steelCable pullLuranyl® or Lexan 920FlangeAluminumRopeStainless steel 1.4401/316: . Housing: nickel-plated steel. Cable pull: Luranyl® or Lexan 920. Flange: Aluminum. Rope: Stainless steel 1.4401/316. Mass: approx. 1200 g. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active
