ECA10TL - Analog

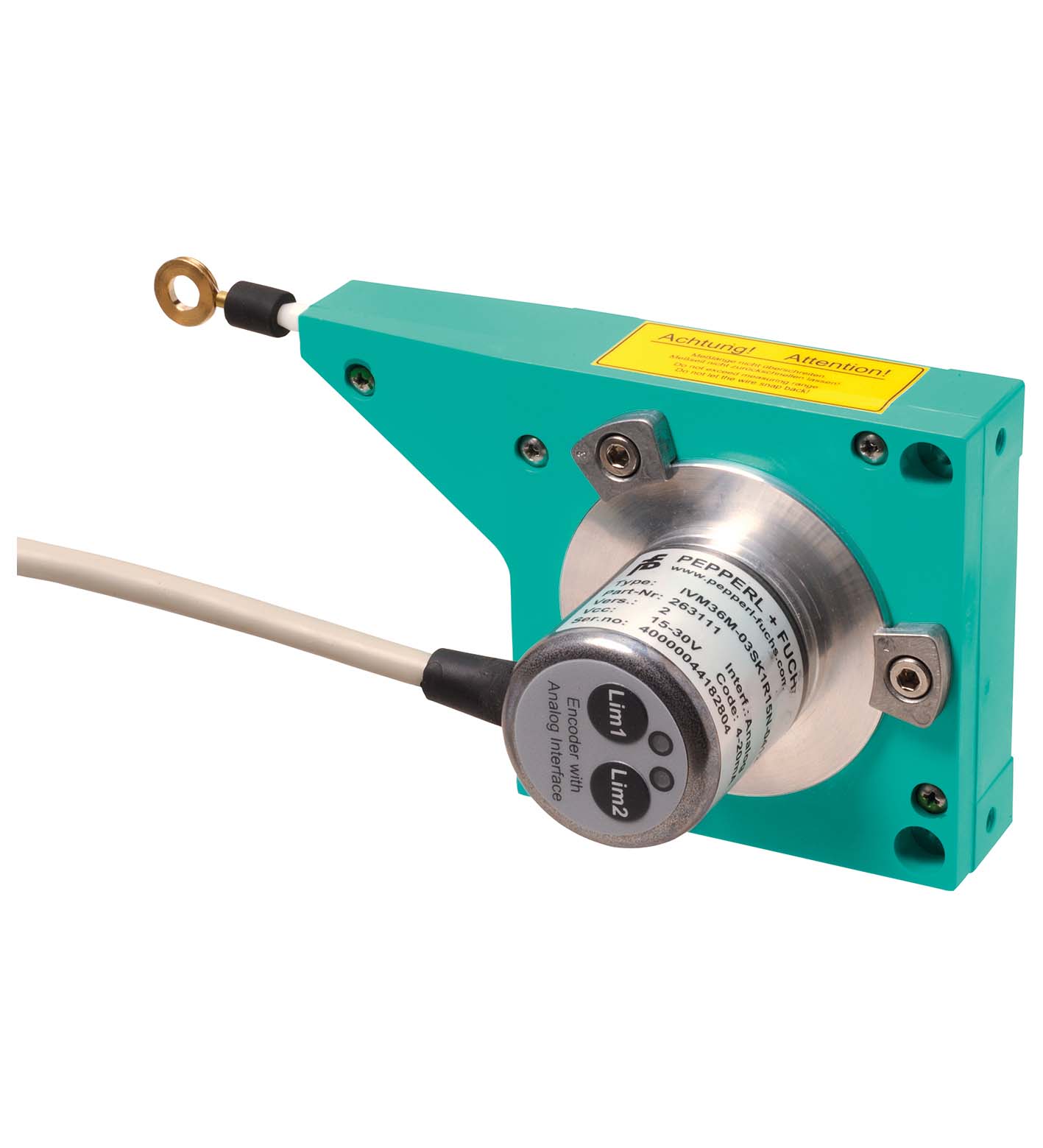

Cable pull rotary encoder. Cable pull rotary encoder with analog interface and push buttons, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder i...
Cable pull rotary encoder. Cable pull rotary encoder with analog interface and push buttons, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Wide range of mounting options, Rust and acid-resistant measuring cable, Interface: Analog output, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm, Input type: lower limit of measuring range. Detection type: magnetic sampling. Device type: Target line with analog interface. Measuring length: 3000 ... 10000 mm. Construction type: 80 mm, 130 mm, 190 mm. Resolution: Cable pull:80 mm design: 0,028 mm130 mm design: 0,047 mm190 mm design: 0,068 mm Encoder: 17 bit (13 bit/revolution). Operating voltage: 8 ... 32 V DC. Current consumption: typ. 15 mA (with voltage output) typ. 20 mA (with current output). Input type: lower limit of measuring range. Signal voltage: . High8 ... 32 V DC: . High: 8 ... 32 V DC. Signal duration: min. 1 s. Input type: upper limit of measuring range. Signal voltage: . High8 ... 32 V DC: . High: 8 ... 32 V DC. Signal duration: min. 1 s. Output type: analog voltage output or analog current output. Default setting: rising ramp at ccw rotation. Linearity error: ≤ 0.15 %. Connector: M12 connector, 5 pin. Cable: ∅6 mm, 4 x 2 x 0.14 mm2, 1 m. Degree of protection: acc. DIN EN 60529. Connection sidecable models: IP54 connector models: IP65 Cable pull: IP50: . Connection side: cable models: IP54 connector models: IP65 Cable pull: IP50. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: cable, movable installation: -5 ... 70 °C (23 ... 158 °F)cable, fixed installation: -30 ... 70 °C (-22 ... 158 °F) connector models: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 0.55 mm. Material: . Housingnickel-plated steelCable pulldesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17FlangeAluminumRopeStainless steel 1.4401/316: . Housing: nickel-plated steel. Cable pull: design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17. Flange: Aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
