Pepperl Fuchs

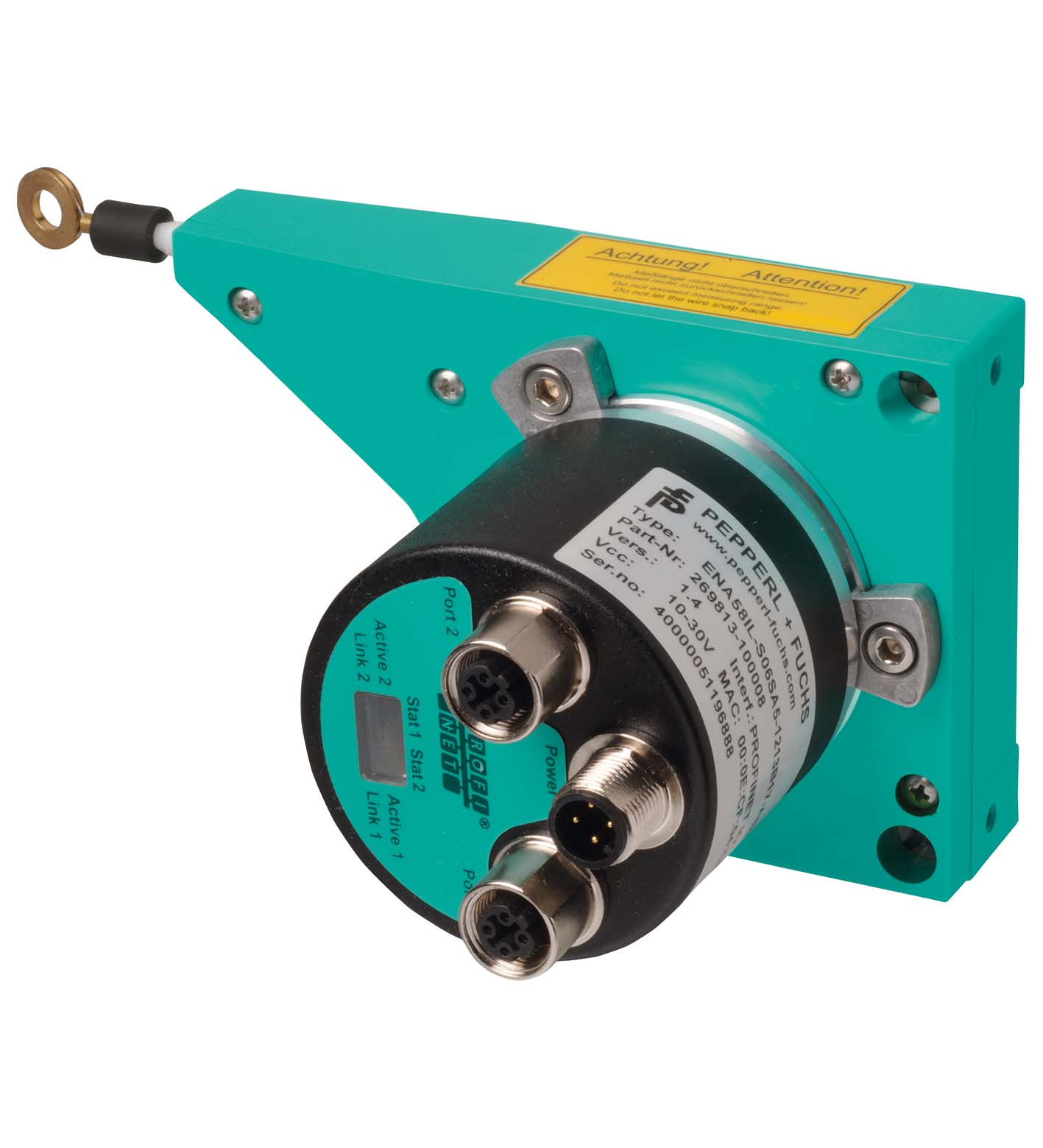

ECA10TL - PROFINET

Cable pull rotary encoder. Cable pull rotary encoder with PROFINET interface, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Wide range of mounting options, Rust and acid-resistant measuring cable, Interface: PROFINET, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm. Detection type: magnetic sampling. Device type: Target line with PROFINET interface. Measuring length: 3000 ... 10000 mm. Construction type: 80 mm, 130 mm, 190 mm. Resolution: Cable pull:80 mm design: 0,028 mm130 mm design: 0,047 mm190 mm design: 0,068 mm Encoder: 25 Bit (13 Bit/revolution). Operating voltage: 10 ... 30 V DC. Power consumption: approx. 4 W. Output code: binary code. Code course (counting direction): adjustable. Transfer rate: 100 MBit/s. Connector: Ethernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded. Degree of protection: acc. DIN EN 60529. Connection sideconnector models: IP65 Cable pull: IP50: . Connection side: connector models: IP65 Cable pull: IP50. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 0.55 mm. Material: . Housingnickel-plated steel , paintedCable pulldesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17FlangeAluminumRopeStainless steel 1.4401/316: . Housing: nickel-plated steel , painted. Cable pull: design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17. Flange: Aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
