ECA10TL - SSI

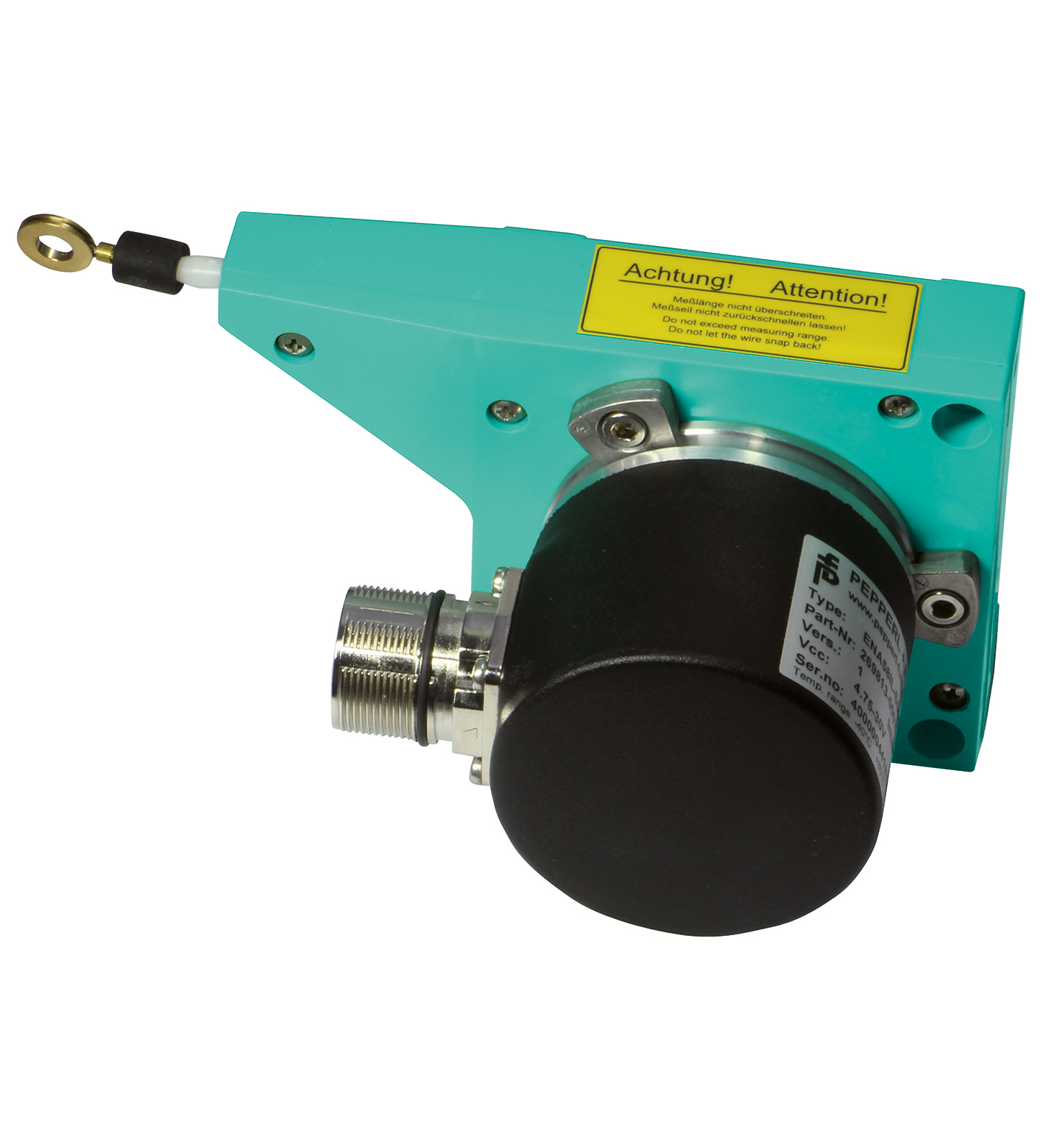

Cable pull rotary encoder. Cable pull rotary encoder with SSI interface, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide th...
Cable pull rotary encoder. Cable pull rotary encoder with SSI interface, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Wide range of mounting options, Rust and acid-resistant measuring cable, Interface: SSI, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm, Interface type: SSI, Input type: Selection of counting direction (cw/ccw). Detection type: magnetic sampling. Device type: Target line with SSI interface. Measuring length: 3000 ... 10000 mm. Construction type: 80 mm, 130 mm, 190 mm. Resolution: Cable pull:design 80 mm: with 13 Bit 0,028 mm; with 12 Bit 0,056 mmdesign 130 mm: with 13 Bit 0,047 mm; with 12 Bit 0,094 mmdesign 190 mm: with 13 Bit 0,068 mm; with 12 Bit 0,0135 mm Encoder: standard 25 Bit (13 Bit/revolution) or as an option 24 Bit (12 Bit/revolution). Operating voltage: 4.75 ... 30 V DC. No-load supply current: typ. 50 mA. Power consumption: approx. 1.5 W. Output code: Gray code, binary code. Code course (counting direction): adjustable. Interface type: SSI. Transfer rate: 0.1 ... 2 MBit/s. Cycle time: < 100 µs. Standard conformity: RS 422. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.75 V ... UB (cw descending)Low0 ... 2 V or unconnected (cw ascending): . High: 4.75 V ... UB (cw descending). Low: 0 ... 2 V or unconnected (cw ascending). Input current: < 6 mA. Input type: zero-set (PRESET 1) with falling edge. Signal voltage: . High4.75 V ... UB: . High: 4.75 V ... UB. Signal duration: min. 1.1 s. Connector: M12 connector, 8-pin or M23 connector, 12-pin. Cable: ∅7 mm, 6 x 2 x 0.14 mm2. Degree of protection: acc. DIN EN 60529. Connection sidecable models: IP65 connector models: IP65 Cable pull: IP50: . Connection side: cable models: IP65 connector models: IP65 Cable pull: IP50. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 0.55 mm. Material: . Housingnickel-plated steelCable pulldesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17FlangeAluminumRopeStainless steel 1.4401/316: . Housing: nickel-plated steel. Cable pull: design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17. Flange: Aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
