Pepperl Fuchs

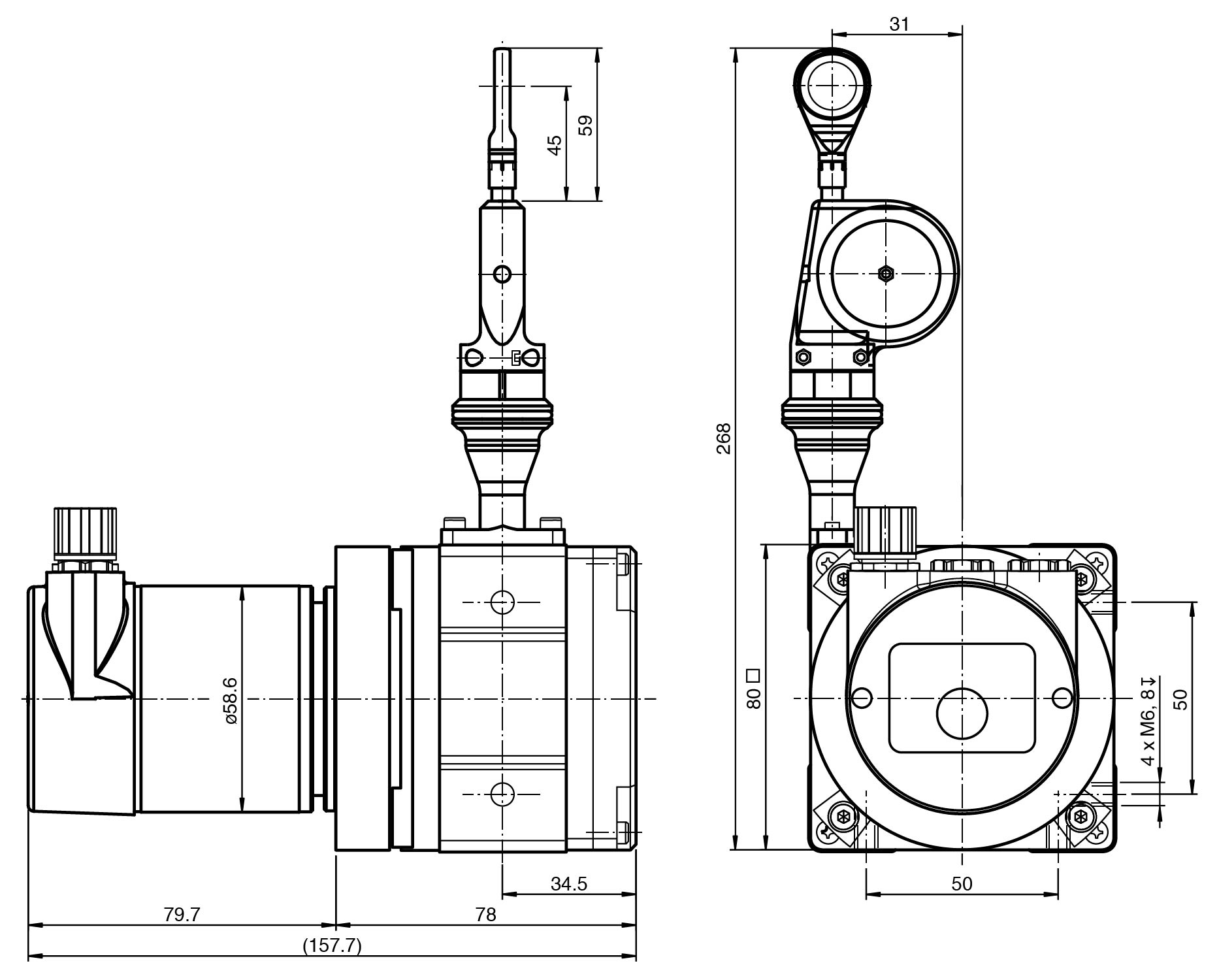

ECA21IL-02A4A-B16AN:OE1212

Cable pull rotary encoder. Cable pull rotary encoder with CANopen interface, Robust aluminum drum housing, Guide pulley for guide, Rust and acid-resistant measuring cable, Resolution: 12 singleturn, 12 bit multiturn, Interface: CANopen, Detection type: photoelectric sampling, Construction type: 80 mm, Interface type: CANopen. Detection type: photoelectric sampling. Device type: Industrial Line with CANopen interface. Measuring length: 2000 mm. Construction type: 80 mm. Resolution: Cable pull:Design 80 mm: 0.049 mm Encoder: 24 bit (12 bit/revolution). Operating voltage: 10 ... 30 V DC. No-load supply current: ≥ 350 mA. Interface type: CANopen. Resolution: . Single turn12 BitMultiturn12 BitOverall resolution24 Bit: . Single turn: 12 Bit. Multiturn: 12 Bit. Overall resolution: 24 Bit. Transfer rate: max. 1 MBit/s. Standard conformity: communication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2. Connector: M12 connector, 5 pin , A-coded. Degree of protection: acc. DIN EN 60529. Connection sideEncoder: IP65 Cable pull: IP64: . Connection side: Encoder: IP65 Cable pull: IP64. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 0.54 mm. Drum perimeter: 200 mm. Retraction speed: 4 m/s. Spring retraction force: 8 ... 14 N. Material: . Housingaluminum, coatedCable pullanodized aluminumFlangeanodized aluminumRopeStainless steel 1.4401/316: . Housing: aluminum, coated. Cable pull: anodized aluminum. Flange: anodized aluminum. Rope: Stainless steel 1.4401/316. Mass: 1900 g. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
