ECA30PL-02C1A-I42BD:X3

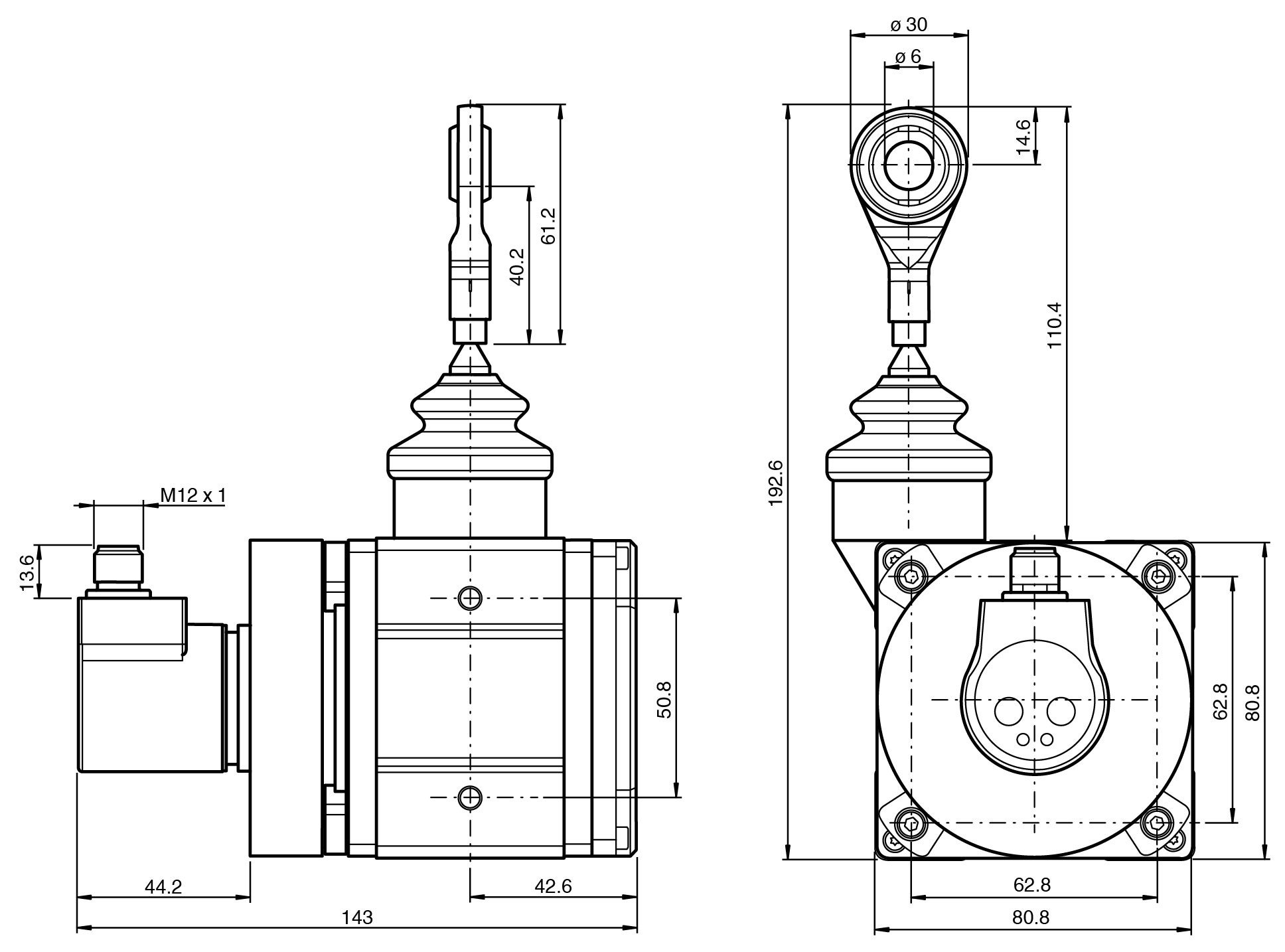

Cable pull rotary encoder. Cable pull rotary encoder with analog interface and push buttons, Robust aluminum drum housing, Resolution: 13 singleturn, 4 bit multiturn, Adjustable measuring range via pu...

Cable pull rotary encoder. Cable pull rotary encoder with analog interface and push buttons, Robust aluminum drum housing, Resolution: 13 singleturn, 4 bit multiturn, Adjustable measuring range via push buttons, Rust and acid-resistant measuring cable, Interface: Analog output, Detection type: magnetic sampling, Construction type: 130 mm, Input type: lower limit of measuring range, Output type: analog current output 4 ... 20 mA. Detection type: magnetic sampling. Device type: Performance Line. Measuring length: 2000 mm. Construction type: 130 mm. Resolution: Cable pull:Design 130 mm: 0.04 mm Encoder: 17 bit (13 bit/revolution). Operating voltage: 8 ... 32 V DC. No-load supply current: typ. 20 mA. Input type: lower limit of measuring range. Signal voltage: . High8 ... 32 V DC: . High: 8 ... 32 V DC. Signal duration: min. 1 s. Input type: upper limit of measuring range. Signal voltage: . High8 ... 32 V DC: . High: 8 ... 32 V DC. Signal duration: min. 1 s. Output type: analog current output 4 ... 20 mA. Default setting: rising ramp at ccw rotation. Linearity error: ≤ 0.15 %. Load resistor: min. 500 Ω Max. value for supply voltage 8 V. For higher supply voltage lower load resistance can be used.. Connector: M12 connector, 5 pin. Degree of protection: according DIN EN 60529. Connection sideEncoder: IP65 Cable pull: IP64: . Connection side: Encoder: IP65 Cable pull: IP64. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 1.35 mm. Drum perimeter: 334.1 mm. Retraction speed: 4 m/s. Spring retraction force: 15 ... 21 N. Material: . Housingaluminum, coatedCable pullanodized aluminumFlangeanodized aluminumRopeStainless steel 1.4401/316: . Housing: aluminum, coated. Cable pull: anodized aluminum. Flange: anodized aluminum. Rope: Stainless steel 1.4401/316. Mass: 2888 g. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active
