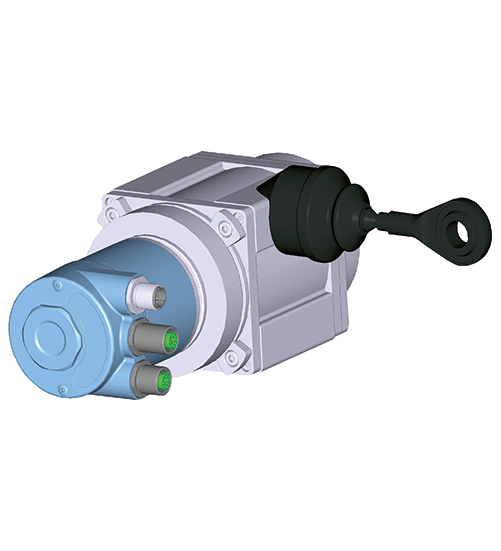

ECA30PL-03C1A-B25AY:OE:01

Cable pull rotary encoder. Cable pull rotary encoder with EtherNet/IP interface, Rust and acid-resistant measuring cable, Robust aluminum drum housing, Resolution: 13 singleturn, 12 bit multiturn, Int...

Cable pull rotary encoder. Cable pull rotary encoder with EtherNet/IP interface, Rust and acid-resistant measuring cable, Robust aluminum drum housing, Resolution: 13 singleturn, 12 bit multiturn, Interface: EtherNet/IP, Detection type: photoelectric sampling, Construction type: 80 mm, Interface type: EtherNet/IP. Detection type: photoelectric sampling. Device type: Performance Line. Measuring length: 3000 mm. Construction type: 80 mm. Operating voltage: 10 ... 30 V DC. No-load supply current: ≥ 350 mA. Interface type: EtherNet/IP. Resolution: . Single turn13 BitMultiturn12 BitOverall resolution25 Bit: . Single turn: 13 Bit. Multiturn: 12 Bit. Overall resolution: 25 Bit. Transfer rate: 100 MBit/s. Connector: Ethernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded. Degree of protection: according DIN EN 60529. Connection sideEncoder: IP65 Cable pull: IP64: . Connection side: Encoder: IP65 Cable pull: IP64. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 1.35 mm. Drum perimeter: 200 mm. Retraction speed: 8 m/s. Spring retraction force: 7 ... 11 N. Material: . Housingaluminum, coatedCable pullanodized aluminumFlangeanodized aluminumRopeStainless steel 1.4401/316: . Housing: aluminum, coated. Cable pull: anodized aluminum. Flange: anodized aluminum. Rope: Stainless steel 1.4401/316. Mass: 1870 g. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active
