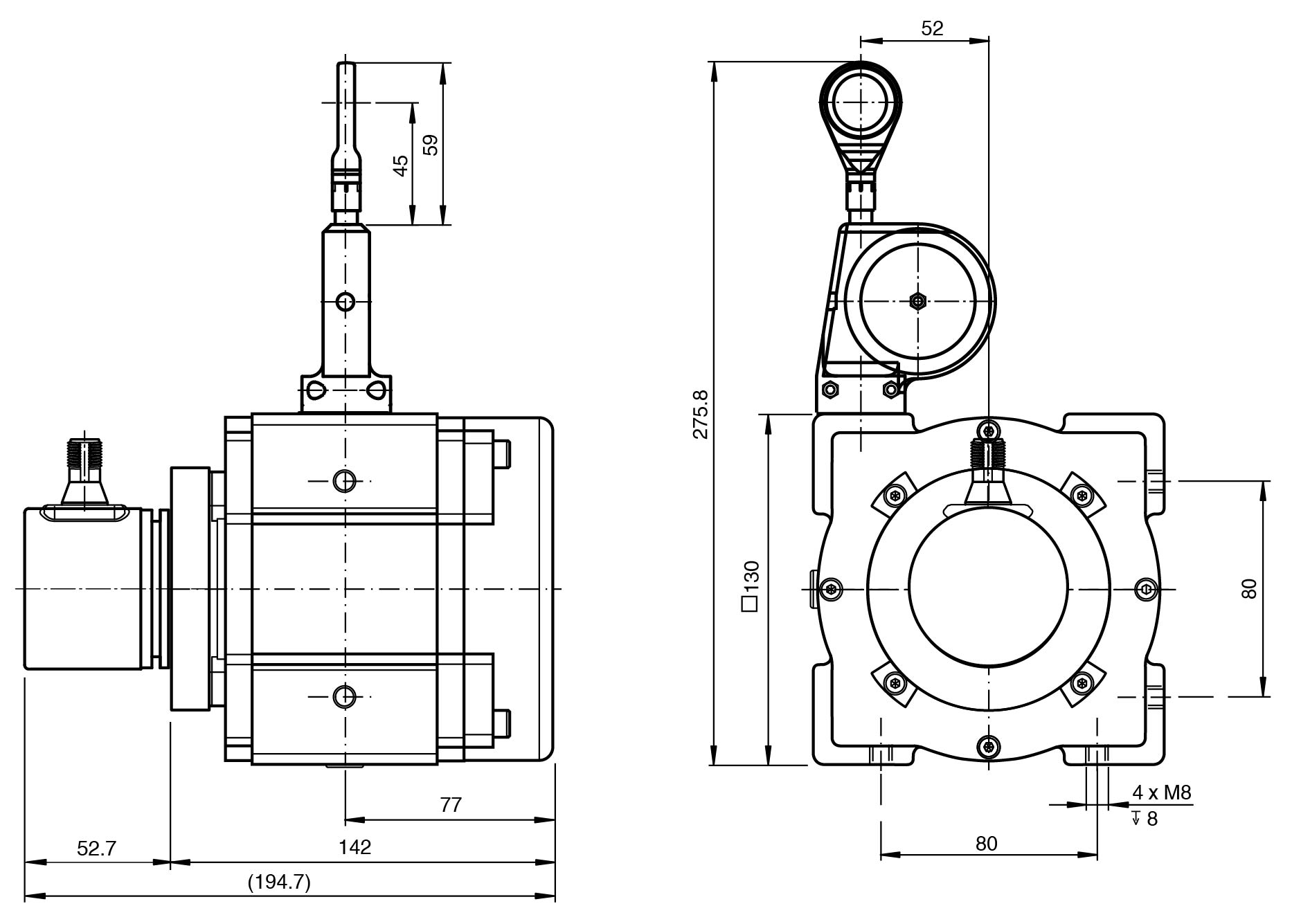

ECA30PL-05A4A-B16BD:NN

Cable pull rotary encoder. Cable pull rotary encoder with CANopen interface, Rust and acid-resistant measuring cable, Robust aluminum drum housing, Resolution: 13 singleturn, 12 bit multiturn, Interfa...

Cable pull rotary encoder. Cable pull rotary encoder with CANopen interface, Rust and acid-resistant measuring cable, Robust aluminum drum housing, Resolution: 13 singleturn, 12 bit multiturn, Interface: CANopen, Detection type: magnetic sampling, Construction type: 130 mm, Interface type: CANopen. Detection type: magnetic sampling. Device type: Performance Line. Measuring length: 5000 mm. Construction type: 130 mm. Resolution: Cable pull:Design 130 mm: 0.04 mm Encoder: 25 Bit (13 Bit/revolution). Operating voltage: 9 ... 30 V DC. No-load supply current: ≥ 350 mA. Interface type: CANopen. Resolution: . Single turn13 BitMultiturn12 BitOverall resolution25 Bit: . Single turn: 13 Bit. Multiturn: 12 Bit. Overall resolution: 25 Bit. Transfer rate: max. 1 MBit/s. Standard conformity: communication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2. Connector: M12 connector, 5 pin , A-coded. Degree of protection: acc. DIN EN 60529. Connection sideEncoder: IP65 Cable pull: IP64: . Connection side: Encoder: IP65 Cable pull: IP64. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 1.35 mm. Drum perimeter: 334.1 mm. Retraction speed: 4 m/s. Spring retraction force: 15 ... 21 N. Material: . Housingaluminum, coatedCable pullanodized aluminumFlangeanodized aluminumRopeStainless steel 1.4401/316: . Housing: aluminum, coated. Cable pull: anodized aluminum. Flange: anodized aluminum. Rope: Stainless steel 1.4401/316. Mass: 2888 g. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active
