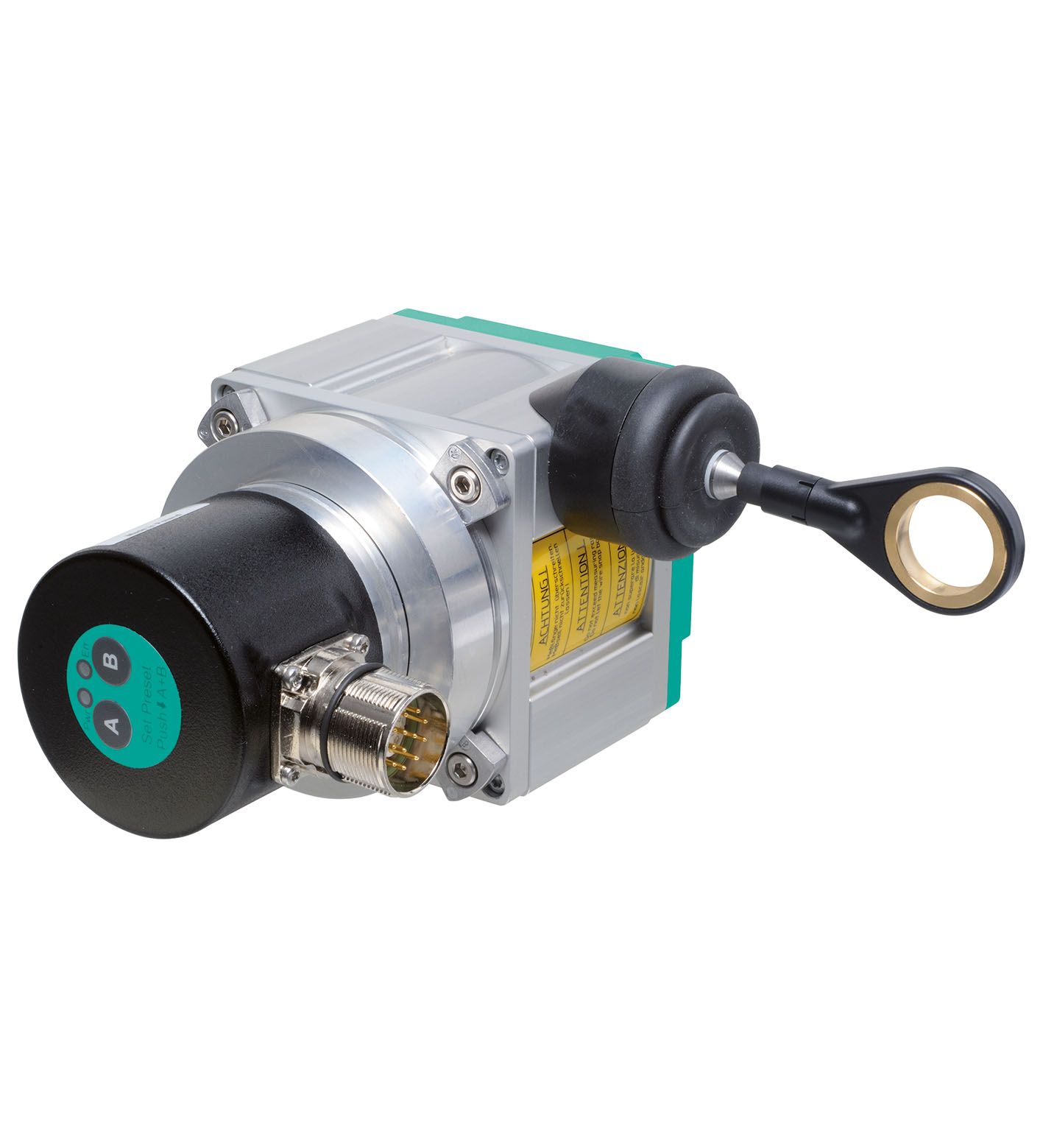

ECA30PL - SSI

Cable pull rotary encoder. Cable pull rotary encoder with SSI interface, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Comprehensive ac...

Cable pull rotary encoder. Cable pull rotary encoder with SSI interface, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Comprehensive accessories, Housing can be coated as an option (Hart Coat), Interface: SSI, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm, Interface type: SSI, Input type: Selection of counting direction (cw/ccw). Detection type: magnetic sampling. Device type: Premium Line with SSI interface. Measuring length: 1000 ... 60000 mm. Construction type: 80 mm, 130 mm, 190 mm. Resolution: Cable pull:Design 80 mm: 0,024 mmDesign 130 mm: 0,041 mmDesign 190 mm: 0,059 mm Encoder: 25 Bit (13 Bit/revolution). B10d: 300000. Operating voltage: 4.75 ... 30 V DC. No-load supply current: typ. 50 mA. Power consumption: approx. 1.5 W. Time delay before availability: < 450 ms. Output code: Gray code, binary code. Code course (counting direction): adjustable. Interface type: SSI. Cycle time: < 100 µs. Standard conformity: RS 422. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.75 V ... UB (cw descending)Low0 ... 2 V or unconnected (cw ascending): . High: 4.75 V ... UB (cw descending). Low: 0 ... 2 V or unconnected (cw ascending). Input current: < 6 mA. Input type: zero-set (PRESET 1) with falling edge. Signal voltage: . High4.75 V ... UBLow0 ... 2 V: . High: 4.75 V ... UB. Low: 0 ... 2 V. Input current: < 6 mA. Signal duration: min. 1.1 s. Connector: M12 connector, 8-pin or M23 connector, 12-pin. Cable: ∅7 mm, 6 x 2 x 0.14 mm2, 1 m (cable length, see order code). Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 1.35 mm. Bending radius: min. 17 mm. Breaking force: min. 1227 N. Material: . Cable pullanodized aluminum or Aluminum with Hart Coat coatingRotary encoderhousing: nickel-plated steel Flange: aluminumFlangeAluminumRopeStainless steel 1.4401/316: . Cable pull: anodized aluminum or Aluminum with Hart Coat coating. Rotary encoder: housing: nickel-plated steel Flange: aluminum. Flange: Aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active
