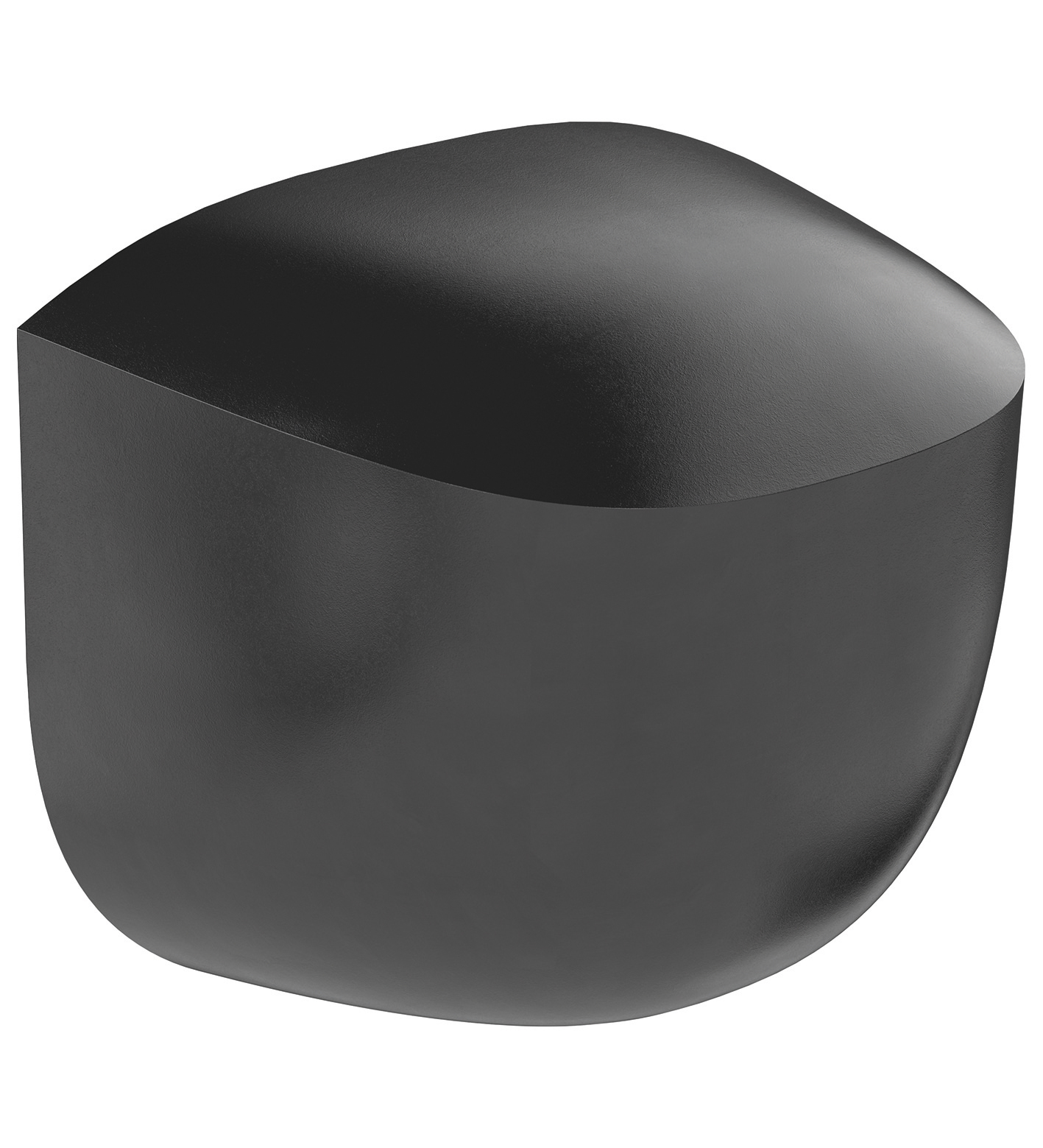

ECHO-D black

Radar motion sensor. Standard radar motion sensor, Detection of people and objects for automatic doors, Bidirectional sensing and adjustment of detection field, Remote control or push button for funct...

Radar motion sensor. Standard radar motion sensor, Detection of people and objects for automatic doors, Bidirectional sensing and adjustment of detection field, Remote control or push button for functionality setting, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 24 V DC ± 10 %, Signal output: solid-state relay, Connection: Connecting cable 2.5 m included with delivery. Sensing range: 2000 x 4500 mm (DxW) at 2200 mm mounting height and 30° inclination angle. Function principle: Microwave module. Detection speed: min. 0.05 m/s. Setting angle: . Rotation angle-40 ... 40 ° in 5 ° incrementsInclination angle0 ... 90 ° in 5 ° increments: . Rotation angle: -40 ... 40 ° in 5 ° increments. Inclination angle: 0 ... 90 ° in 5 ° increments. Operating frequency: 24.15 ... 24.25 GHz K-Band. Operating mode: Radar motion sensor. Transmitter radiated power (EIRP): < 13 dBm. MTTFd: . Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: detection : LED green push button indication : LED yellow / green. Control elements: Push button for selection of operating modes : sensitivity , direction detection , cross-traffic suppression , slow-motion mode , relay switching type , hold time , immunity. Operating voltage: 12 ... 24 V DC ± 10 %. No-load supply current: ≤ 55 mA at 24 V DC. Power consumption: ≤ 1.32 W. Switching type: Normally open/closed (NO/NC). Signal output: solid-state relay. Switching voltage: max. 28 V AC / 36 V DC. Switching current: max. 0.1 A AC / 0.1 A DC. Hold time: 1.5 s / 3 s. CE conformity: 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed.. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: max. 90 % non-condensing. Mounting height: max. 4 m. Degree of protection: IP54. Connection: Connecting cable 2.5 m included with delivery. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: approx. 70 g. Dimensions: 75 mm x 64 mm x 50 mm. Height64 mmWidth75 mmDepth50 mm: . Height: 64 mm. Width: 75 mm. Depth: 50 mm

Brand	Pepperl Fuchs
Lifecycle status	active
