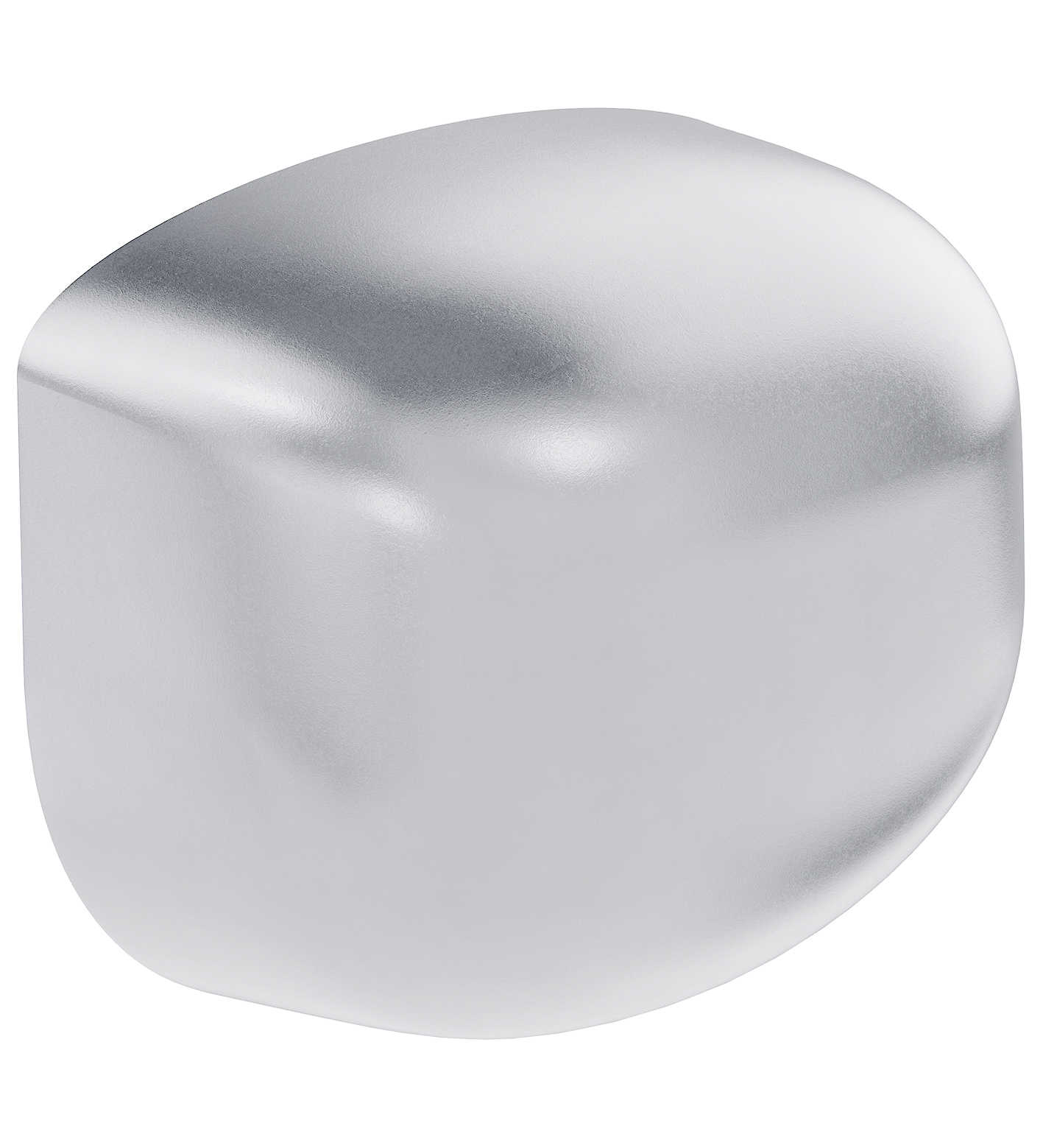

ECHO-M silver
Radar motion sensor. Basic radar motion sensor, Detection of people and objects for automatic doors, Simplest adjustment of the sensing range, Wall and ceiling mountable, Function: Open, Sensor princi...
Radar motion sensor. Basic radar motion sensor, Detection of people and objects for automatic doors, Simplest adjustment of the sensing range, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 24 V DC ± 10 %, Signal output: solid-state relay, Connection: cable Adapter 35 mm included with delivery ; for conductor cross section 0.2 ... 0.5 mm<sup>2</sup>. Sensing range: 2000 x 4000 mm (DxW) at 2200 mm mounting height and 30° inclination angle. Function principle: Microwave module. Detection speed: min. 0.1 m/s. Setting angle: . Rotation angle-40 ... 40 ° in 5 ° incrementsInclination angle0 ... 90 ° in 5 ° increments: . Rotation angle: -40 ... 40 ° in 5 ° increments. Inclination angle: 0 ... 90 ° in 5 ° increments. Operating frequency: 24.15 ... 24.25 GHz K-Band. Operating mode: Radar motion sensor. Transmitter radiated power (EIRP): < 13 dBm. MTTFd: 766 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: detection : LED green push button indication : LED yellow. Control elements: sensitivity adjustment with push button. Operating voltage: 12 ... 24 V DC ± 10 %. No-load supply current: ≤ 50 mA at 24 V DC. Power consumption: ≤ 1.2 W. Switching type: Normally open (NO). Signal output: solid-state relay. Switching voltage: max. 28 V AC / 36 V DC. Switching current: max. 0.1 A AC / 0.1 A DC. Hold time: 1.5 s. CE conformity: 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed.. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: max. 90 % non-condensing. Mounting height: max. 3 m. Degree of protection: IP54. Connection: cable Adapter 35 mm included with delivery ; for conductor cross section 0.2 ... 0.5 mm2. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: approx. 70 g. Dimensions: 75 mm x 64 mm x 44 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
