ECI30PL-05A4A-UD1BE:02

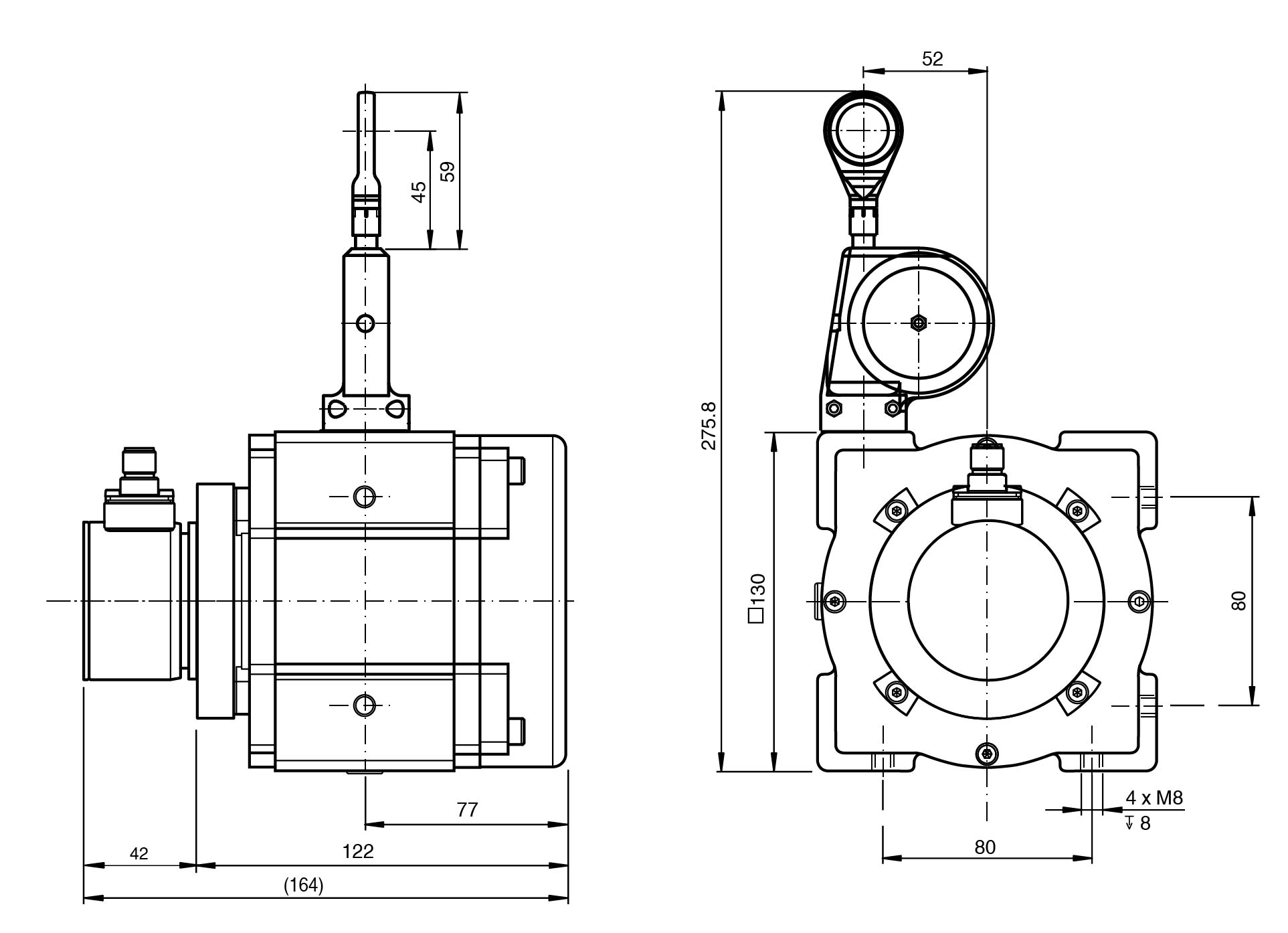

Cable pull rotary encoder. Cable pull rotary encoder with incremental output signals (1024 pulses), Robust aluminum drum housing, Guide pulley for guide, Rust and acid-resistant measuring cable, 1024...

Cable pull rotary encoder. Cable pull rotary encoder with incremental output signals (1024 pulses), Robust aluminum drum housing, Guide pulley for guide, Rust and acid-resistant measuring cable, 1024 pulses, incremental, Interface: push-pull, incremental, Detection type: photoelectric sampling, Construction type: 130 mm. Detection type: photoelectric sampling. Device type: Performance Line. Measuring length: 5000 mm. Construction type: 130 mm. Resolution: Cable pull:Design 130 mm: 0.32 mm Encoder: 1024 pulses per revolution. Operating voltage: 4.75 ... 30 V DC. No-load supply current: max. 50 mA. Output type: push-pull or RS422 (universal output driver, output level depending on input voltage). Output frequency: max. 400 kHz. Rise time: 300 ns. Phase position A to B: . Pulse counts < 360090 ° ± 9 ° electricalPulse counts ≥ 360090 ° ± 15 ° electrical: . Pulse counts < 3600: 90 ° ± 9 ° electrical. Pulse counts ≥ 3600: 90 ° ± 15 ° electrical. Duty cycle: 1/2 ± 10 %. Connector: M12 connector, 8-pin. Degree of protection: acc. DIN EN 60529. Connection sideEncoder: IP65 Cable pull: IP64: . Connection side: Encoder: IP65 Cable pull: IP64. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 1.35 mm. Drum perimeter: 334.1 mm. Retraction speed: 4 m/s. Spring retraction force: 15 ... 21 N. Material: . Housingaluminum, coatedCable pullanodized aluminumFlangeanodized aluminumRopeStainless steel 1.4401/316: . Housing: aluminum, coated. Cable pull: anodized aluminum. Flange: anodized aluminum. Rope: Stainless steel 1.4401/316. Mass: 2888 g. Life span: up to 106 Cycles

Brand	Pepperl Fuchs
Lifecycle status	active
