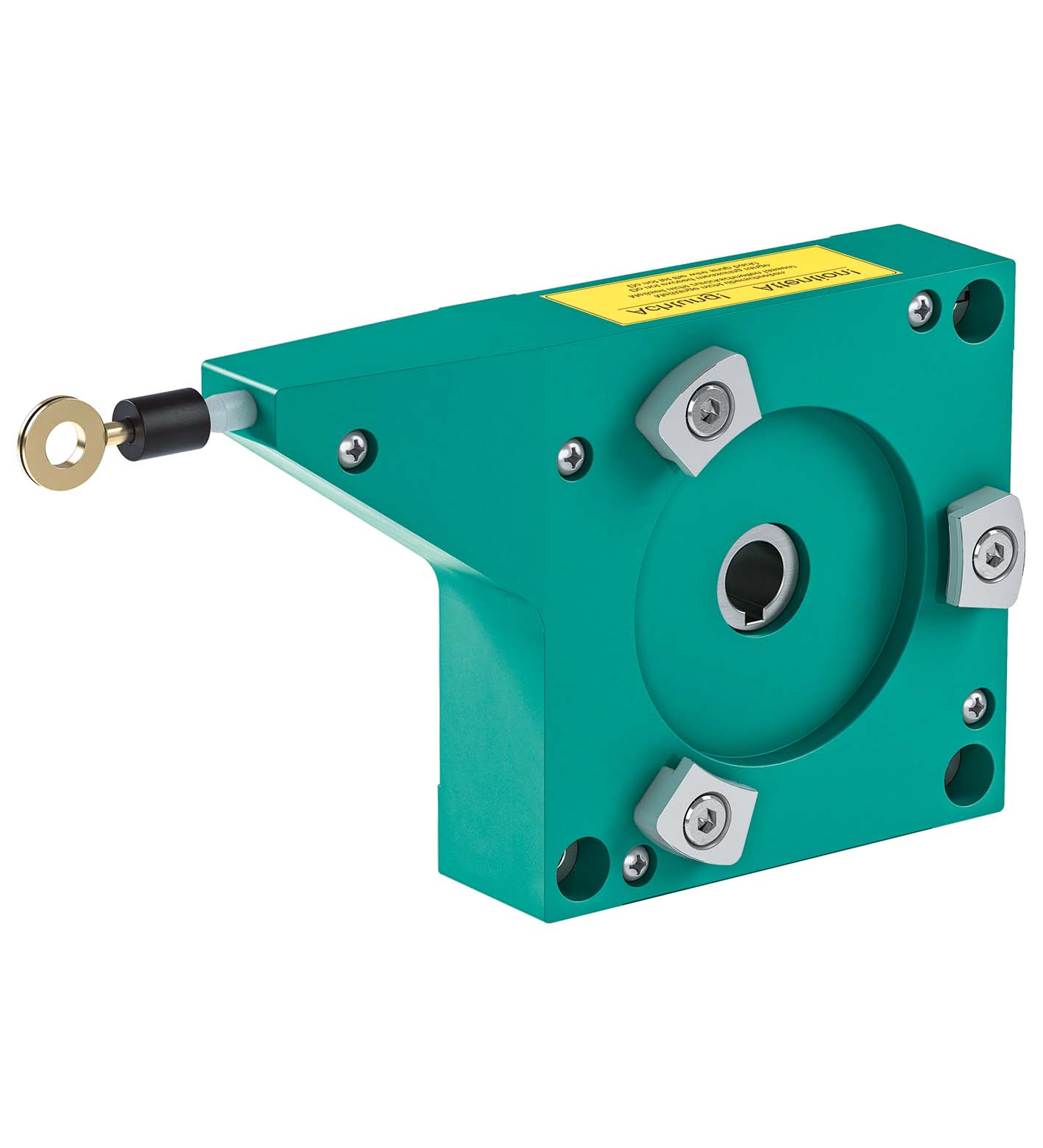

ECN10TL-*

Cable pull. Cable pull, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the flange-mounted rotary encoder is used to provide the function of the drum bearing), Coupling-...

Cable pull. Cable pull, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the flange-mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Multitude of mounting possibilities, Rust and acid-resistant measuring cable, Construction type: 80 mm, 130 mm, 190 mm. Device type: Target Line. Measuring length: 3000 ... 10000 mm. Construction type: 80 mm, 130 mm, 190 mm. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Rope diameter: 0.55 mm. Degree of protection: IP50. Material: . Housingdesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17RopeStainless steel 1.4401/316: . Housing: design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles. Scope of delivery: Shaft adapter for rotary encoder with shaft dimension ∅ 6 mm x 10 mm up to 20 mm , adapter flange , Mounting clips , 3 x M4 x 8 bolts for mounting the adapter , Cover disk , Hexagon socket wrench, 1.3 AF

Brand	Pepperl Fuchs
Lifecycle status	active
