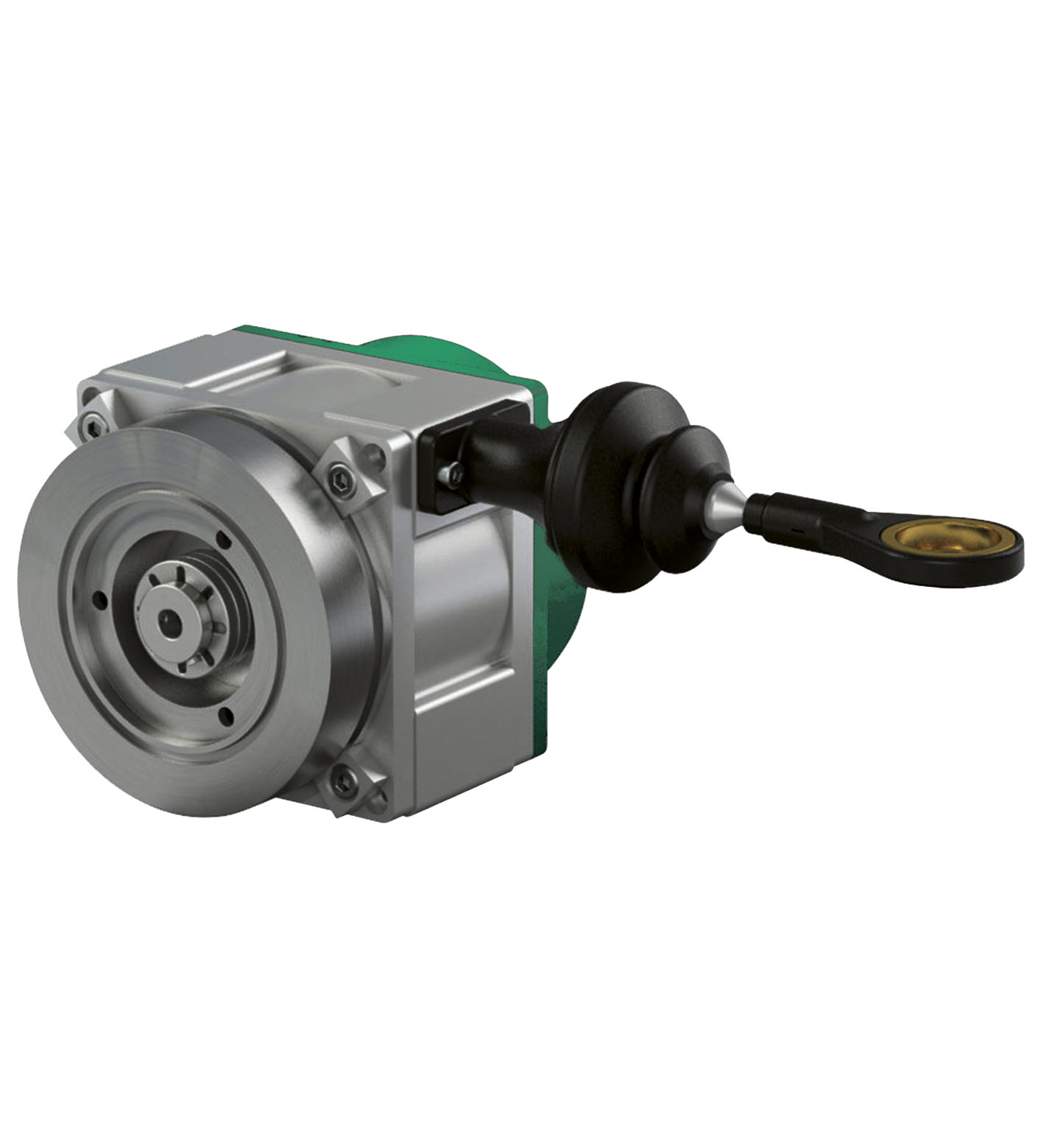

ECN21IL-*

Cable pull. Cable pull, Robust aluminum drum housing, Compact design, Bellows with steel tip, Wide range of mounting options, Up to 5 m of measuring cable, Construction type: 80 mm, 130 mm. Device typ...

Cable pull. Cable pull, Robust aluminum drum housing, Compact design, Bellows with steel tip, Wide range of mounting options, Up to 5 m of measuring cable, Construction type: 80 mm, 130 mm. Device type: Industrial Line. Measuring length: 2000 ... 5000 mm. Construction type: 80 mm, 130 mm. B10d: 300000. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Rope diameter: 0.55 mm. Retraction speed: 4 m/s. Degree of protection: IP64. Material: . Housinganodized aluminumRopeStainless steel 1.4401/316: . Housing: anodized aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles. Scope of delivery: Shaft coupling for mounting a rotary encoder depending on the flange type , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF

Brand	Pepperl Fuchs
Lifecycle status	active
