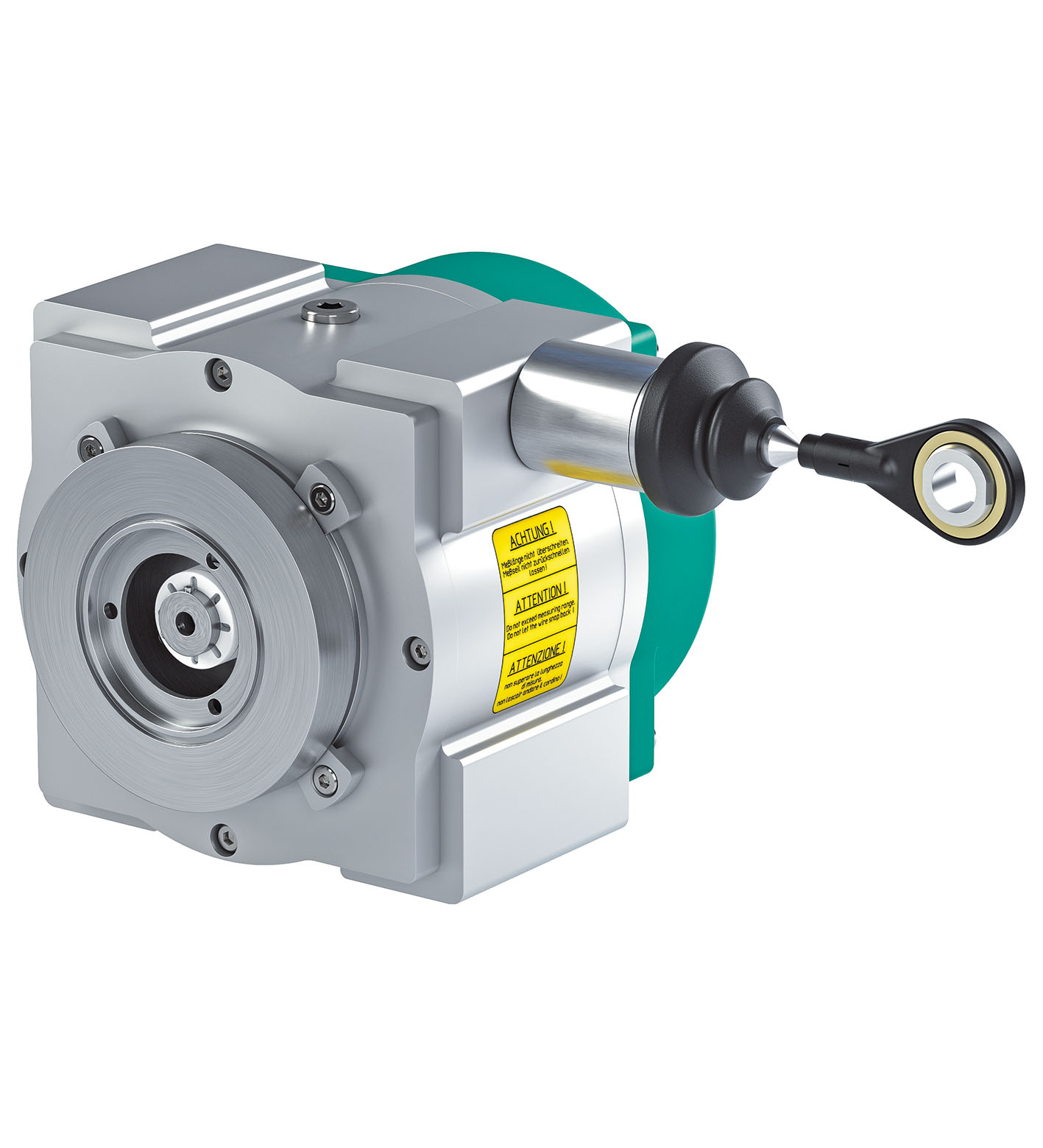

ECN30PL-*

Cable pull. Cable pull, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Wide range of mounting options, Comprehensive accessories, Constr...

Cable pull. Cable pull, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Wide range of mounting options, Comprehensive accessories, Construction type: 80 mm, 130 mm, 190 mm. Device type: Premium Line. Measuring length: 1000 ... 60000 mm. Construction type: 80 mm, 130 mm, 190 mm. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Rope diameter: 1.35 mm 0.81 mm ( at measuring length 50000 mm ). Degree of protection: IP64. Material: . Housinganodized aluminum or Aluminum with Hart Coat coatingRopeStainless steel 1.4401/316: . Housing: anodized aluminum or Aluminum with Hart Coat coating. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles. Scope of delivery: Shaft coupling for mounting a rotary encoder depending on the flange type , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF. Optional accessories: #203843SL-RP/GS80Guide pulley, design 80#203844SL-RP/GS130/GS190Guide pulley, design 130/190#251600SL-TRP/GS80Double guide pulley, design 80#251602SL-TRP/GS130Double guide pulley, design 130/190#271371SL-BA/GS80Brush attachment, design 80#271373SL-BA/GS130/GS190Brush attachment, design 130/190#272502SL-BCABall for ball joint

Brand	Pepperl Fuchs
Lifecycle status	active
