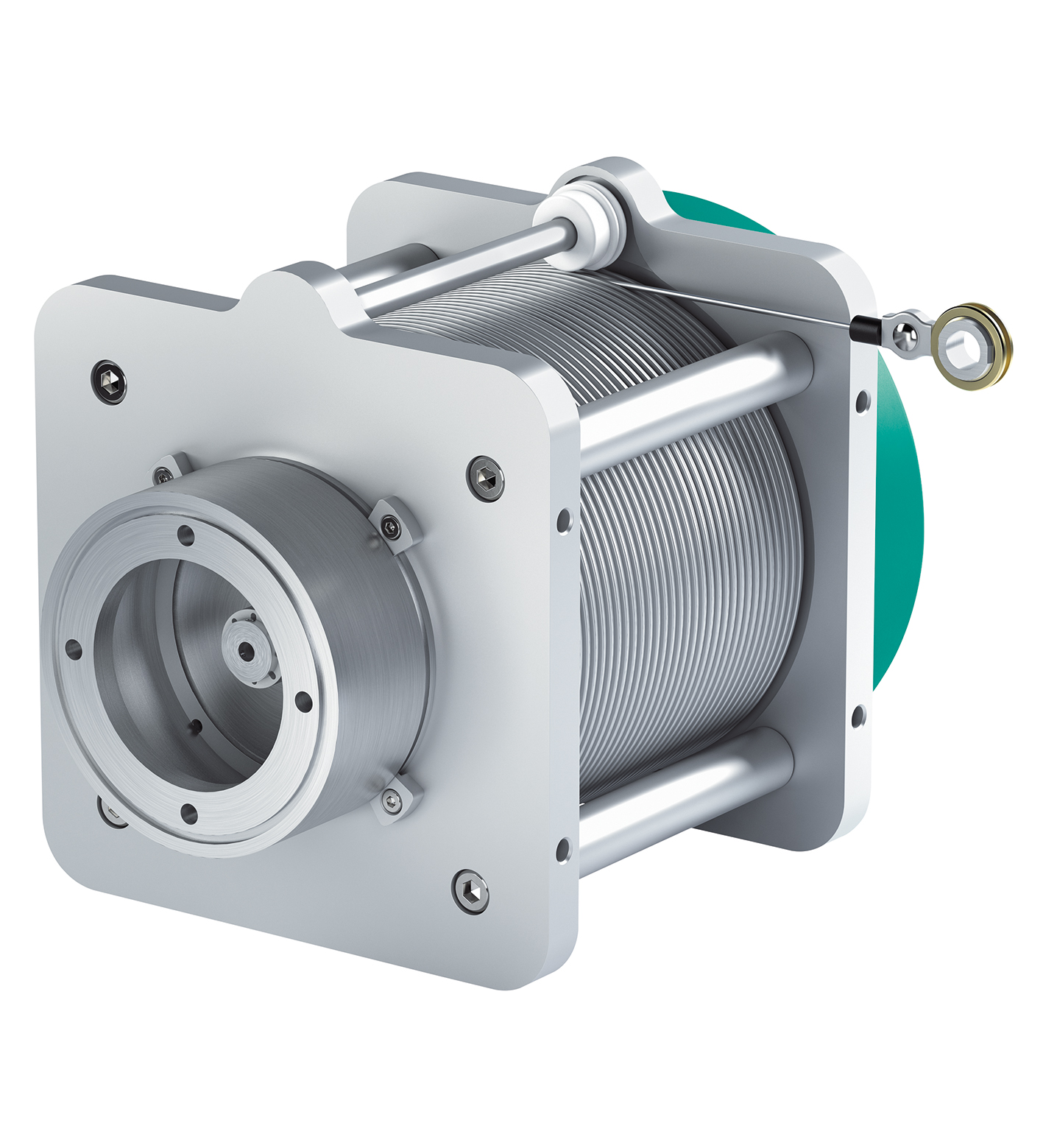

ECN40HD-*

Cable pull. Cable pull, Open cable pull system, Up to 20 m of measuring cable, Measuring cable diameter of 2 mm, Drum with grooving (Lebus spooling) to increase service life and accuracy, Ball joint a...

Cable pull. Cable pull, Open cable pull system, Up to 20 m of measuring cable, Measuring cable diameter of 2 mm, Drum with grooving (Lebus spooling) to increase service life and accuracy, Ball joint as standard cable attachment point allows the attachment point to move with various degrees of freedom and prevents the measuring cable from kinking, Construction type: 190 mm. Device type: Heavy duty. Measuring length: 5000 ... 20000 mm. Drum perimeter: 500 mm. Construction type: 190 mm. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Rope diameter: 2 mm. Tension force at rope: 22 ... 37 N. Retraction speed: 4 m/s. Degree of protection: IP65. Material: . Housinganodized aluminumSpring housinglacquer-coated aluminumRopeStainless steel 1.4401/316, plastic sheathing: . Housing: anodized aluminum. Spring housing: lacquer-coated aluminum. Rope: Stainless steel 1.4401/316, plastic sheathing. Life span: up to 106 Cycles. Scope of delivery: Shaft coupling for attaching a rotary encoder , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF

Brand	Pepperl Fuchs
Lifecycle status	active
