EI-0D2-10Y-10B-LT

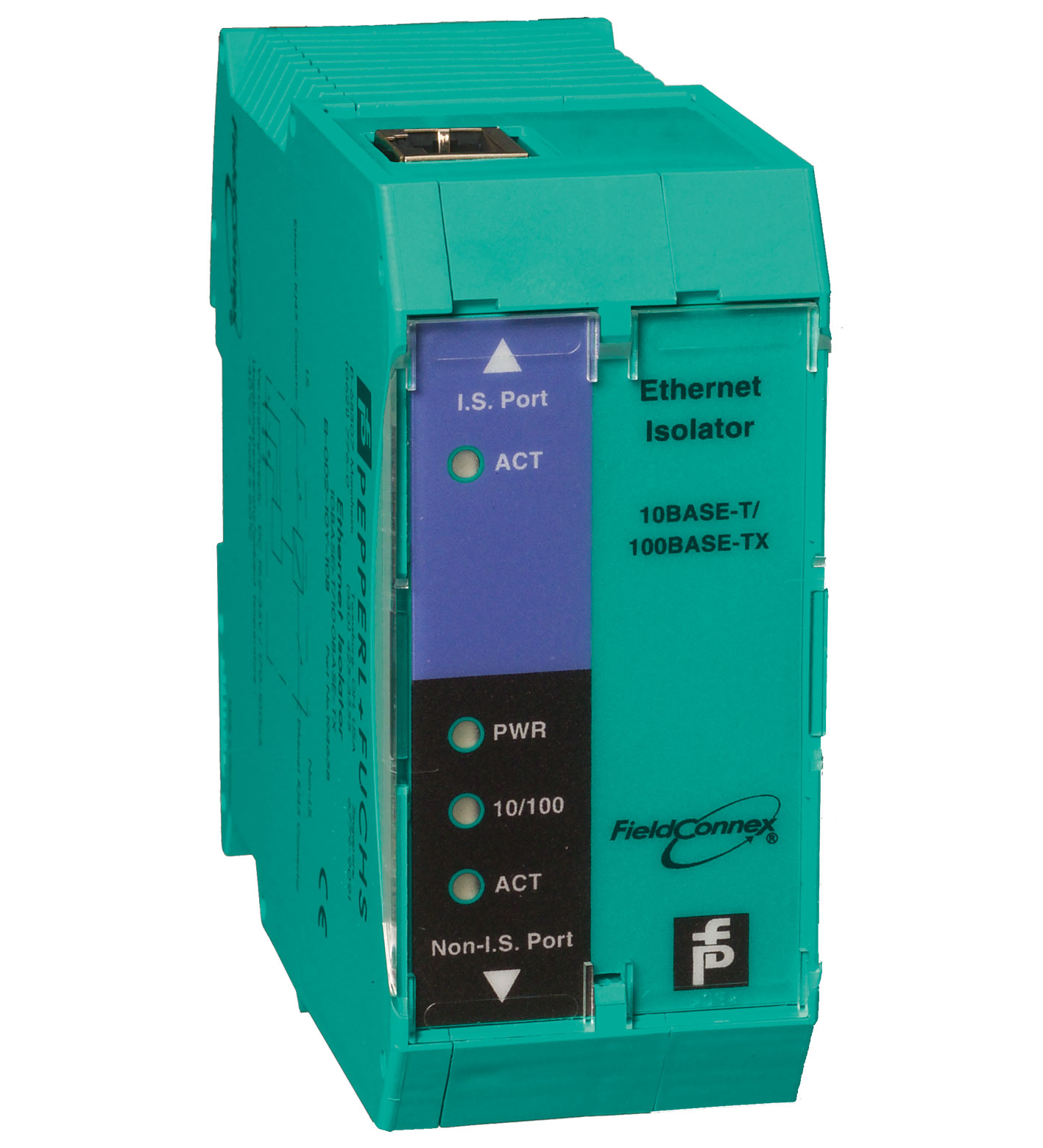

Ethernet Isolator. Ethernet isolator, module with intrinsically safe port (Ex ia) for DIN rail mounting, Galvanic isolation between intrinsically safe and non-intrinsically safe port, 10/100 MBit/s ac...

Ethernet Isolator. Ethernet isolator, module with intrinsically safe port (Ex ia) for DIN rail mounting, Galvanic isolation between intrinsically safe and non-intrinsically safe port, 10/100 MBit/s according to IEEE 802.3/.3u, Installation in Zone 2, Ethernet in Zone 1 or Zone 0, Standard Ethernet patch or crossover cable, DIN rail mounting and OEM version. Installation in hazardous area: Zone 2. Rated voltage: 19.2 ... 35 V DC. Rated current: 150 ... 100 mA. Power dissipation: 3 W. Intrinsically safe port: 10 BASE-T/100 BASE-TX. Non-intrinsically safe port: 10 BASE-T/100 BASE-TX. Connection type: 2 x RJ-45 , IEC 60603-7. Connector pinout: socket ; EIA/TIA 568 B. Transfer rate: 10/100 Mbit/s , Auto-Negotiation. Operating mode: half/full duplex. Cable type: CAT5e S/FTP AWG 24, Installation cable, L/R ratio max. 10 µH/Ω of all strand combinations. I.S. cable length: typ. 100 m/20 °C. Total cable length: typ. 200 m/20 °C. Number of isolators: max. 2 in series connection. LED PWR: green: Power on. LED ACT: yellow: communication active. LED 10/100: yellow ON: Transfer rate 100 MBit/s , OFF: 10 MBit/s. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Galvanic isolation: EN 50020. Degree of protection: IEC 60529. Climatic conditions: DIN IEC 721. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ethernet: IEEE 802.3 , IEEE 802.3u. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: ≤ 95 % non-condensing. Shock resistance: 15 g 11 ms. Vibration resistance: 1 g 10 ... 150 Hz. Pollution degree: max. 2, according to IEC 60664. Connection type: RJ45. Core cross section: up to 2.5 mm2. Housing material: Polyamide PA 66. Degree of protection: IP20. Mass: 195 g. Mounting: DIN rail mounting. EU-type examination certificate: PTB 07 ATEX 2025 X. Marking II (1) G [Ex ia Ga] IIB ,[exsign] II (1) D [Ex ia Da] IIIC ,[exsign] II 3(1)G Ex nA [ia Ga] IIB T4 Gc [exsign] II 3 (1D) G Ex nA [ia IIIC Da] IIB T4 Gc [exsign] I (M1) [Ex ia Ma] I: . Marking: II (1) G [Ex ia Ga] IIB ,[exsign] II (1) D [Ex ia Da] IIIC ,[exsign] II 3(1)G Ex nA [ia Ga] IIB T4 Gc [exsign] II 3 (1D) G Ex nA [ia IIIC Da] IIB T4 Gc [exsign] I (M1) [Ex ia Ma] I. Supply: . Maximum safe voltageUm253 V AC: Um. Maximum safe voltage: 253 V AC. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010. CSA approval: CSA 15.70016295. Control drawing116-B032Approved forClass I, Zone 2, AEx/Ex nA [ia Ga] IIB T4 Gc Class I, Zone 2, AEx/Ex nA [ia Da IIIC] IIB T4 Gc: . Control drawing: 116-B032. Approved for: Class I, Zone 2, AEx/Ex nA [ia Ga] IIB T4 Gc Class I, Zone 2, AEx/Ex nA [ia Da IIIC] IIB T4 Gc. IECEx approval: IECEx PTB 09.0053X. Approved for[Ex ia Ga] IIB [Ex ia Da] IIIC Ex nA [ia Ga] IIB T4 Gc Ex nA [ia IIIC Da] IIB T4 Gc [Ex ia Ma] I: . Approved for: [Ex ia Ga] IIB [Ex ia Da] IIIC Ex nA [ia Ga] IIB T4 Gc Ex nA [ia IIIC Da] IIB T4 Gc [Ex ia Ma] I. Patents: This product may be covered by the following patent: US7,687,791. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
