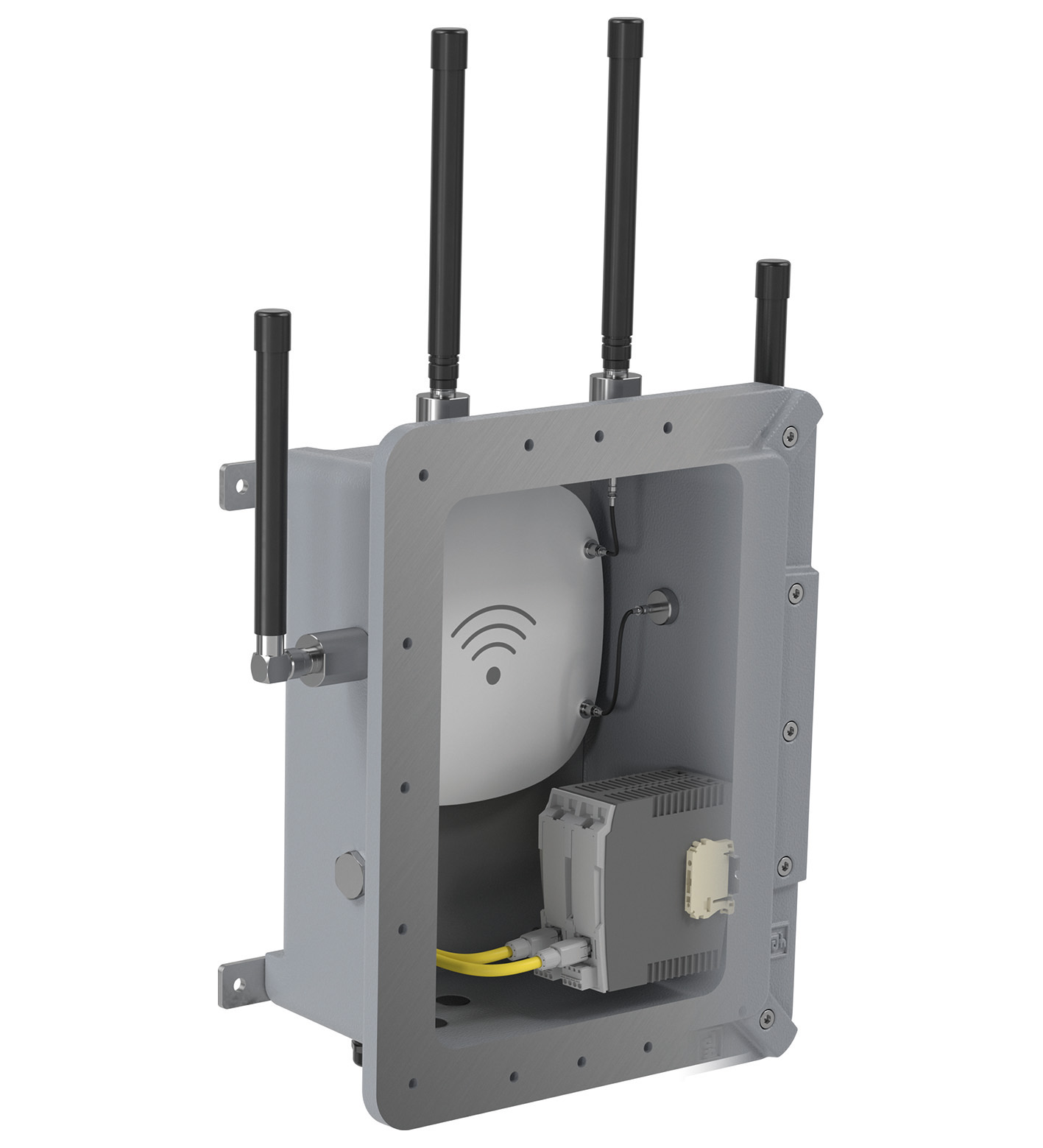

EJB10A.I.CP-Y*

Wireless Access Point (Ex d). Copper-free aluminum enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Suitable for operation in Class I, II Division 1, Ex d and Ex tb certified, Gas group...

Wireless Access Point (Ex d). Copper-free aluminum enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Suitable for operation in Class I, II Division 1, Ex d and Ex tb certified, Gas group IIB+H<SUB>2</SUB>, Use of industrial Wireless Access Points in hazardous areas, External antennas for best possible signal dispersion, Customizable configuration of WI-FI and network devices and cable entries as per specification, Degree of protection IP66 or IP66 / IP67, NEMA Type 4X. Operating voltage: 1500 V DC / 1000 V AC max. for ATEX / IECEx 600 V AC / DC max. for North American approvals. Operating current: 1600 A max.. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: detachable , optional hinges. Cover fixing: stainless steel socket cap head screws. Screwssee datasheets of relevant enclosuresMaterial of screwsstainless steelYield stressmin. 450 N/mm2 for ATEX / IECEx , 100,000 PSI for North American approvals: . Screws: see datasheets of relevant enclosures. Material of screws: stainless steel. Yield stress: min. 450 N/mm2 for ATEX / IECEx , 100,000 PSI for North American approvals. Cover seal: none, O-ring for IP66/67. Flamepath grease: Greasil MS4 or NEVER SEEZ Marine Grade. Degree of protection: IP66 (IP66/IP67 with O-ring) , NEMA Type 4, 4X, 7, 9. Material: . Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey)O-Ringsilicone: . Enclosure: aluminum alloy. Glass: thermo-resistant tempered glass. Finish: epoxy coated RAL 7005 (grey). O-Ring: silicone. Mass: 25.1 kg. Dimensions: 468 mm x 358 mm x 215 mm values might differ slightly due to casting and manufacturing tolerances. Mounting: see datasheets of relevant enclosures. Grounding: M6 external grounding points. Ambient temperature: -40 ... 50 °C (-40 ... 122 °F) depending on integrated components. EU-type examination certificate: INERIS 14 ATEX 0022X. Marking II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee datasheets of relevant enclosures maximum power dissipation at T4/+40 °C enclosure without window: . Marking: II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss. Maximum power dissipation: see datasheets of relevant enclosures maximum power dissipation at T4/+40 °C enclosure without window. UL approval: . Approved forClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9cULusEmpty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30cETLusControl panels E5003368Ambient temperature-25 ... 60 °C (-13 ... 140 °F): . Approved for: Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Type 4, 4X, 7, 9. cULus: Empty enclosure E482035 , UL 50E , UL 1203 , CSA C22.2, No. 25, 30. cETLus: Control panels E5003368. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). IECEx approval: IECEx INE 14.0029X. Further approvals: available on request. Degree of protection: EN60529 and UL 50 / UL 50E. CE marking: 0080 or 0102, see type label. Ordering information: This Wireless Access Point solution will be delivered completely configured and assembled ready for use. For configuration details please contact customer service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Installed components: All major WI-FI Access Point vendors such as Aruba, Cisco, ect.

Brand	Pepperl Fuchs
Lifecycle status	active
