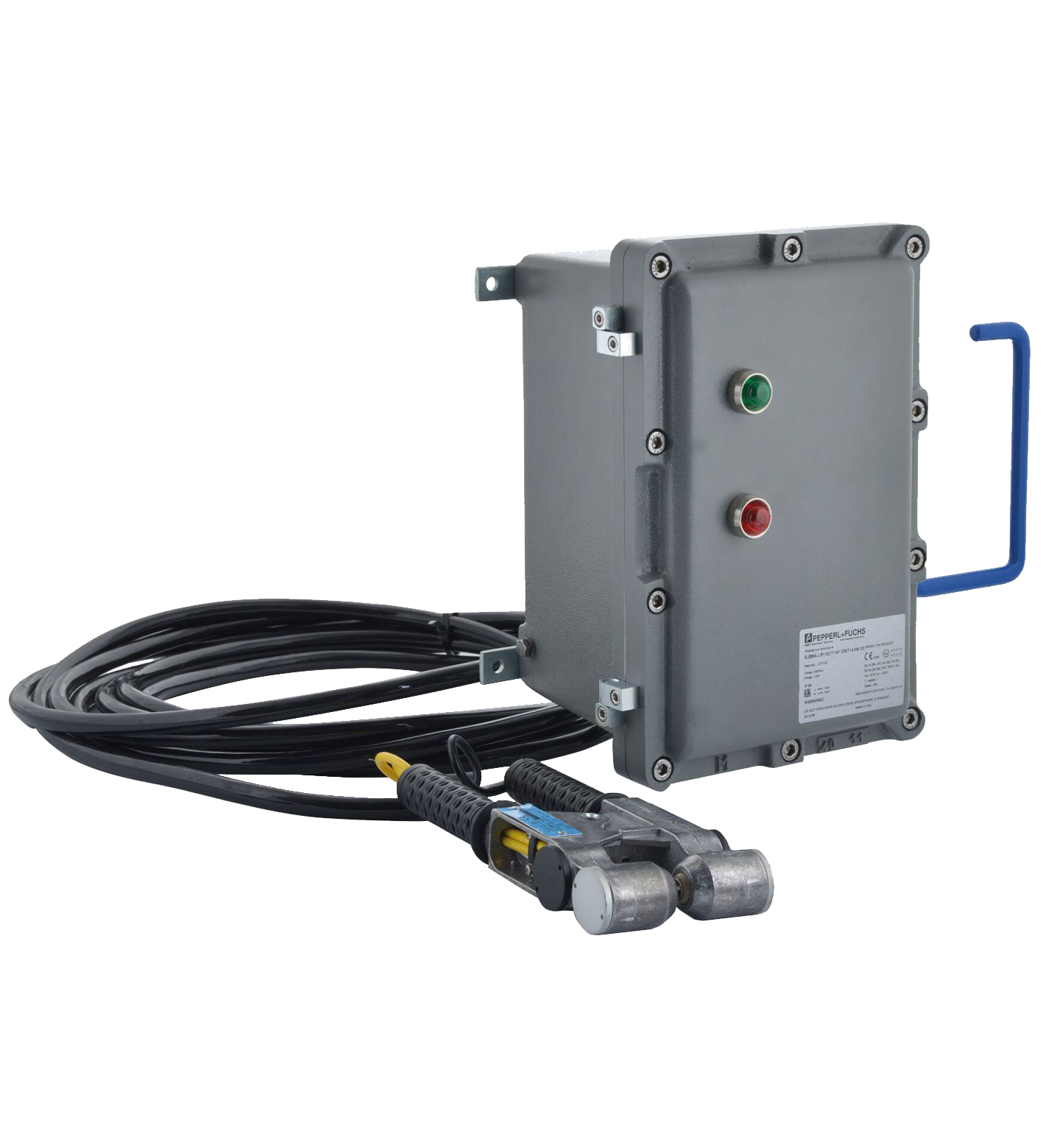

EJB6A*DMT*
Electronic Earthing System (Resistive and Capacitive). Elimination of electrostatic charges, Copper-free aluminum enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certifi...
Electronic Earthing System (Resistive and Capacitive). Elimination of electrostatic charges, Copper-free aluminum enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certified, Gas group IIB+H<SUB>2</SUB>, Degree of protection: IP 65. Operating voltage: 230 V AC , optional 110 V AC. Function: elimination of electrostatic charges. Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles: . Lens color: red and green. Operator action: Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: detachable , optional hinges. Cover fixing: stainless steel socket cap head screws. ScrewsM8Number10Tightening torque20 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2: . Screws: M8. Number: 10. Tightening torque: 20 Nm. Material of screws: stainless steel. Yield stress: min. 450 N/mm2. Cover seal: none, O-ring for IP66/67. Flamepath grease: Greasil MS4 or NEVER SEEZ Marine Grade. Degree of protection: IP65 , Enclosure IP66 (IP66/IP67 with O-ring). Cable entry: face B. Cable entry face B: . M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request: . M25 quantity: 2. M25 type: NPT 3/4''. M25 info: as standard, other on request. Material: . Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey)O-Ringsilicone: . Enclosure: aluminum alloy. Finish: epoxy coated RAL 7005 (grey). O-Ring: silicone. Mass: approx. 13 kg. Dimensions: values might differ slightly due to casting and manufacturing tolerances. External dimension (A)332 mmExternal dimension (B)232 mmExternal dimension (C)185 mmMounting holes distance (G)230 mmMounting holes distance (H)196 mmMounting holes diameter (J)8 mmMaximum external dimension (K)216 mmMaximum external dimension (K1)380 mm: . External dimension (A): 332 mm. External dimension (B): 232 mm. External dimension (C): 185 mm. Mounting holes distance (G): 230 mm. Mounting holes distance (H): 196 mm. Mounting holes diameter (J): 8 mm. Maximum external dimension (K): 216 mm. Maximum external dimension (K1): 380 mm. Grounding: M6 external grounding points. Ambient temperature: -20 ... 40 °C (-4 ... 104 °F). EU-type examination certificate: INERIS 14 ATEX 0022X. Marking II 2 GD Ex db [ia Ga] IIB+H2 T6 Gb, II 2 GD Ex tb [iaD] IIIB T85 °C Db: . Marking: II 2 GD Ex db [ia Ga] IIB+H2 T6 Gb, II 2 GD Ex tb [iaD] IIIB T85 °C Db. IECEx approval: IECEx INE 14.0029X. UKCA approval: CML 21 UKEX 1424X. Degree of protection: EN 60529. CE marking: 0080 or 0102, see type label. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
