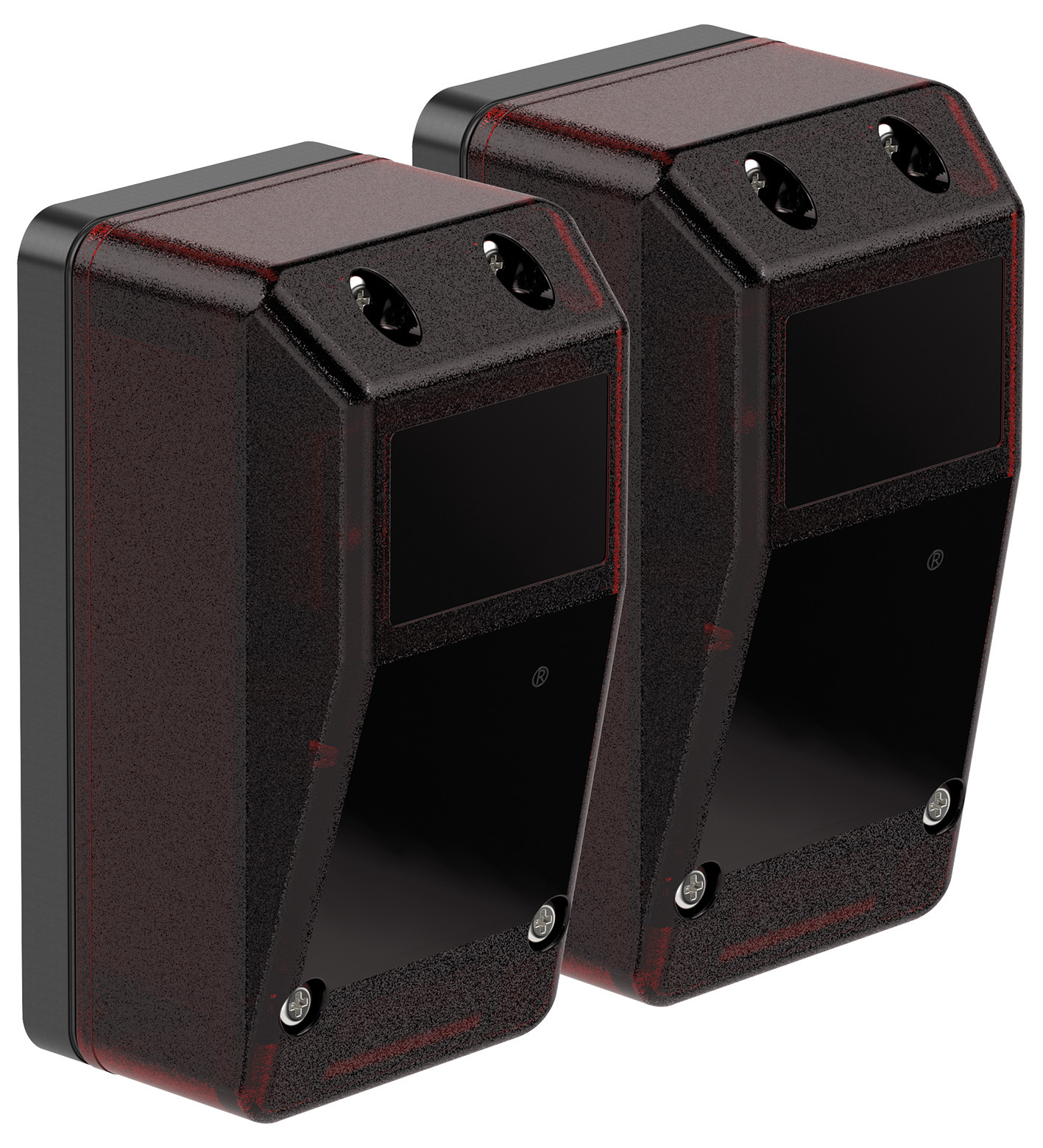

EL25-20M-LR-SET

Thru-beam sensor. Photoelectric sensor for detecting people, objects and vehicles, Indicator LED on the front, Not sensitive to ambient light, Relay output, Version with accessories in scope of delive...

Thru-beam sensor. Photoelectric sensor for detecting people, objects and vehicles, Indicator LED on the front, Not sensitive to ambient light, Relay output, Version with accessories in scope of delivery, Construction type(S2): Rectangular type, Light source: IRED, Light type: modulated infrared light 950 nm, Operating voltage: 24 V AC ± 25 % <BR>10 ... 40 V DC, Output type: relay, change-over contact, Switching type: light/dark on, Signal output: Relay, 1 alternator, Degree of protection: IP65 according to EN 60529. Emitter: EL25-T.. Receiver: EL25-R.. Effective detection range: 1.5 ... 20 m. Threshold detection range: 28 m. Number of protective field beams: 1. Light source: IRED. Light type: modulated infrared light 950 nm. Marking: CE. Diameter of the light spot: approx. 7.3 m at a distance of 20 m. Opening angle: 20 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: emitter LED yellow: Power on. Function indicator: Transmitter: flashes during test Receiver: LED red: lit when the light beam is interrupted LED yellow: lights up when light beam is free. Stability alarm indicator: Receiver: flashing (approx. 4 Hz). Operating voltage: 24 V AC ± 25 % 10 ... 40 V DC. Operating current: Emitter: ≤ 25 mA Receiver: ≤ 30 mA. Power consumption: Emitter: ≤ 1 VA Receiver: ≤ 1.2 VA. Output type: relay, change-over contact. Switching type: light/dark on. Signal output: Relay, 1 alternator. Switching voltage: DC: max. 48 V AC: max. 50 V. Switching current: DC: max. 0.5 A AC: max. 0.6 A. Energized/De-energized delay: when the light beam is unobstructed again, the relay also switches 100 ms Delay. Response time: < 20 ms detection of the light beam interruption. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -35 ... 80 °C (-31 ... 176 °F). Degree of protection: IP65 according to EN 60529. Connection: screw terminals for max. 1.5 mm2. Material: . HousingBase: ABS GF15 Upper part: PMMA red: . Housing: Base: ABS GF15 Upper part: PMMA red. Mass: approx. 60 g. Dimensions: . Height86 mmWidth44 mmDepth39 mm: . Height: 86 mm. Width: 44 mm. Depth: 39 mm

Brand	Pepperl Fuchs
Lifecycle status	active
