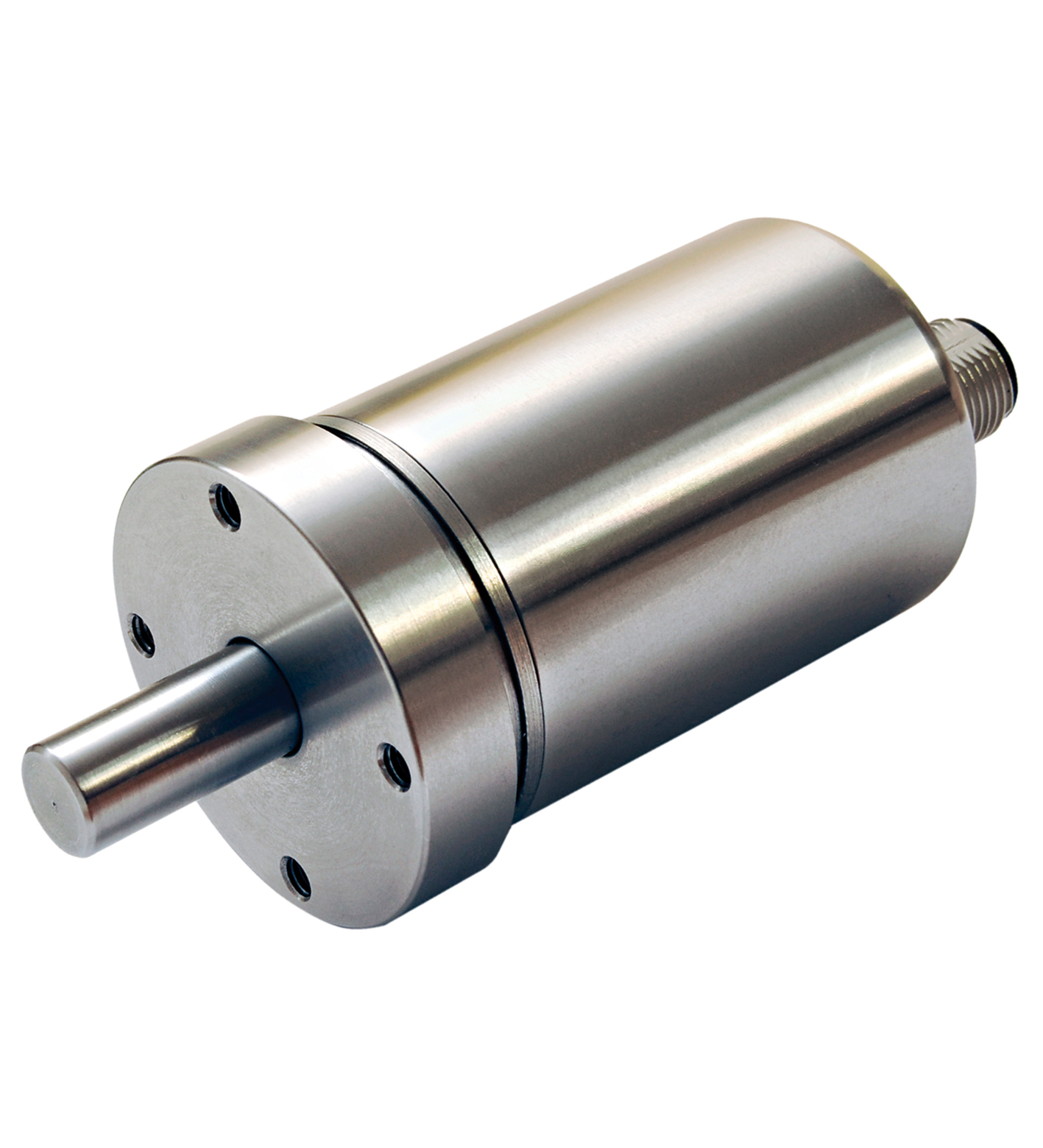

ENA42HD-S***-CANopen

Absolute rotary encoder. Solid shaft, Up to 31 bit overall resolution, CANopen interface, Free of wear magnetic sampling, High resolution and accuracy, Enclosure type: 42 mm, Type of shaft: Solid shaf...

Absolute rotary encoder. Solid shaft, Up to 31 bit overall resolution, CANopen interface, Free of wear magnetic sampling, High resolution and accuracy, Enclosure type: 42 mm, Type of shaft: Solid shaft, Interface: CANopen, Detection type: magnetic sampling, Interface type: CANopen. Detection type: magnetic sampling. Device type: Absolute rotary encoder. Linearity error: ≤ ± 0.1 °. UL File Number: E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.. MTTFd: 480 a at 40 °C. Mission Time (TM): 20 a. L10: 10 E+8 revolutions. Diagnostic Coverage (DC): 0 %. Operating voltage: 9 ... 30 V DC (with galvanic isolation). Power consumption: ≤ 1 W. Time delay before availability: < 250 ms. Output code: binary code. Code course (counting direction): adjustable. Interface type: CANopen. Resolution: . Single turnup to 16 BitMultiturnup to 15 BitOverall resolutionup to 31 Bit: . Single turn: up to 16 Bit. Multiturn: up to 15 Bit. Overall resolution: up to 31 Bit. Transfer rate: min. 20 kBit/s , max. 1 MBit/s. Cycle time: ≥ 1 ms. Standard conformity: DSP 406. Connector: M12 connector, 5 pin. Cable: ∅6 mm, 4 x 2 x 0.14 mm2. Degree of protection: DIN EN 60529 , IP66 / IP68 / IP69K. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 300 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 30 g, 10 ... 1000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.. Operating temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . Housingstainless steel 1.4404 / AISI 316LFlangestainless steel 1.4404 / AISI 316LShaftStainless steel 1.4412 / AISI 440B: . Housing: stainless steel 1.4404 / AISI 316L. Flange: stainless steel 1.4404 / AISI 316L. Shaft: Stainless steel 1.4412 / AISI 440B. Mass: approx. 350 g. Rotational speed: max. 6000 min -1. Moment of inertia: 30 gcm2. Starting torque: < 5 Ncm. Shaft load: . Axial270 NRadial270 N: . Axial: 270 N. Radial: 270 N

Brand	Pepperl Fuchs
Lifecycle status	active
