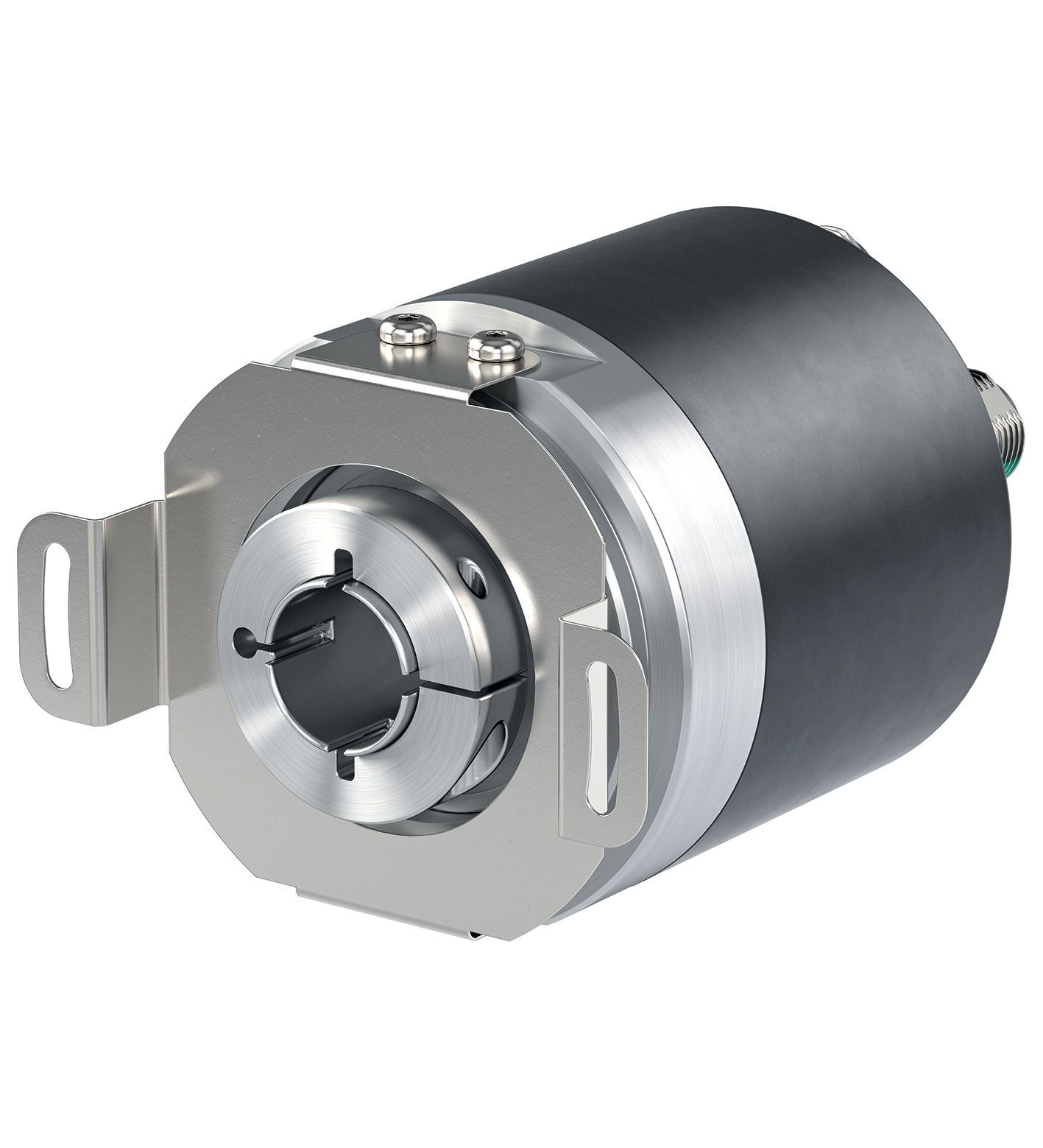

ENA58IL-R***-IO-Link
Absolute rotary encoder. Absolute rotary encoder of the innovative Performance Line, Recessed hollow shaft, Position and shaft velocity, IO-Link Interface for process data, parameterization and diagno...
Absolute rotary encoder. Absolute rotary encoder of the innovative Performance Line, Recessed hollow shaft, Position and shaft velocity, IO-Link Interface for process data, parameterization and diagnosis, Suitable for condition monitoring, Enclosure type: 58 mm, Type of shaft: Recessed hollow shaft, Interface: IO-Link, Detection type: magnetic sampling, Interface type: IO-Link. Detection type: magnetic sampling. Device type: Absolute rotary encoder as Performance Line. Measured variable: position shaft velocity Temperature. Linearity error: ≤ ± 0.1 °. UL File Number: E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.. LED STATUS: LED green flashing with short break (1 Hz) - IO-Link mode. Operating voltage: 18 ... 30 V DC. No-load supply current: max. 50 mA. Power consumption: approx. 1.5 W. Time delay before availability: < 1 s. Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D. Resolution: . Single turnup to 16 Bit programmableMultiturnup to 15 Bit programmableOverall resolutionup to 31 Bit programmable: . Single turn: up to 16 Bit programmable. Multiturn: up to 15 Bit programmable. Overall resolution: up to 31 Bit programmable. Process data: Input 12 Byte - measurement value 4 Byte - resolution 16 Bit - auxiliary mesurement value 4 Byte - switching signals 4 Bit - diagnosis signals 2 Bit - status data Output 1 Byte - Trigger 1 Bit. Vendor ID: 1 (0x0001). Device ID: 5244417 (0x500601), 5244418 (0x500602), 5244421 (0x500605), 5244422 (0x500606). Transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 1.5 ms. SIO mode support: no. Compatible master port type: Class A Class B (use 3-pole adapter or 3-wire cable). Connector: M12 connector, 5 pin , A-coded. Degree of protection: DIN EN 60529, IP65, IP67. Communication interface: IEC 61131-9 / IO-Link V1.1.2. Climatic testing: DIN EN 60068-2-78, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.. Operating temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . HousingZinc plated steel, paintedFlangeAluminumShaftStainless steel: . Housing: Zinc plated steel, painted. Flange: Aluminum. Shaft: Stainless steel. Mass: approx. 370 g. Rotational speed: max. 12000 min -1. Moment of inertia: < 30 gcm2. Starting torque: < 3 Ncm. Shaft load: . Axial24 NRadial198 NAngle offset± 0.9 °Axial offset± 0.3 mm static; ± 0,1 mm dynamicRadial offset± 0.5 mm static; ± 0,2 mm dynamic: . Axial: 24 N. Radial: 198 N. Angle offset: ± 0.9 °. Axial offset: ± 0.3 mm static; ± 0,1 mm dynamic. Radial offset: ± 0.5 mm static; ± 0,2 mm dynamic
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
