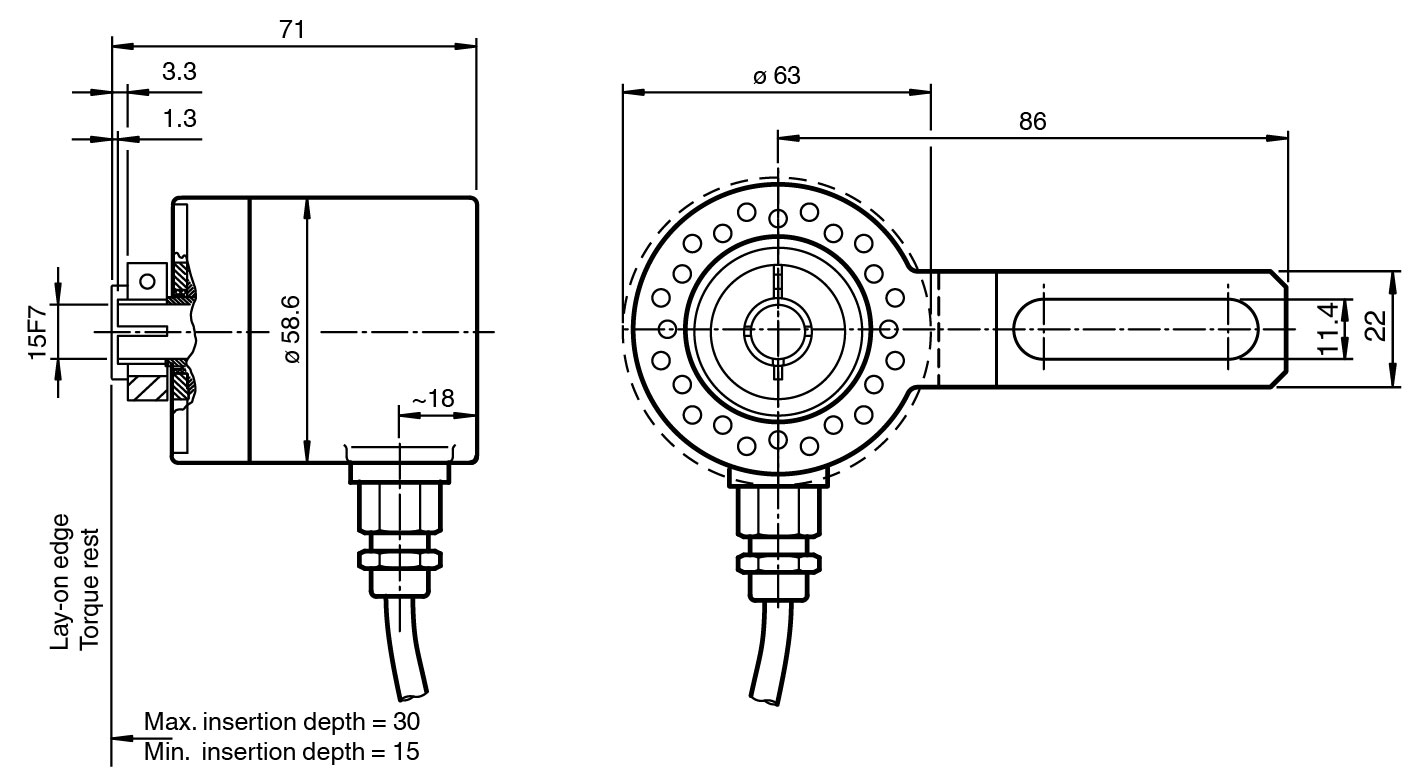

ENA58IL-R15YY5-1212SI2-RAY:01

Absolute rotary encoder. SSI interface, Recessed hollow shaft, Resolution: 12 singleturn, 12 bit multiturn, Free of wear magnetic sampling, High resolution and accuracy, Enclosure type: 58 mm, Type of...

Absolute rotary encoder. SSI interface, Recessed hollow shaft, Resolution: 12 singleturn, 12 bit multiturn, Free of wear magnetic sampling, High resolution and accuracy, Enclosure type: 58 mm, Type of shaft: Recessed hollow shaft, Interface: SSI, Detection type: magnetic sampling, Interface type: SSI ; SSI + incremental track. Detection type: magnetic sampling. Device type: Absolute rotary encoder. Linearity error: ≤ ± 0.1 °. UL File Number: E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.. Operating voltage: 10 ... 30 V. No-load supply current: typ. 50 mA. Power consumption: approx. 1.5 W. Time delay before availability: < 450 ms. Output code: Gray code. Code course (counting direction): cw ascending. Interface type: SSI ; SSI + incremental track. Resolution: . Single turn12 BitMultiturn12 Bit: . Single turn: 12 Bit. Multiturn: 12 Bit. Transfer rate: 0.1 ... 2 MBit/s. Cycle time: < 100 µs. Standard conformity: RS 422. Output type: Push/pull. Signal output: A+B+Z+/A+/B+/Z. Pulses: 2048. Fixed cable with plug: cable ∅8 mm, 8 x 2 x 0.14 mm2 , length 300 mm , M23 connector, 12-pin , right-rotating. Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 200 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 20 g, 10 ... 1000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.. Operating temperature: cable, movable installation: -5 ... 70 °C (23 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . Housingnickel-plated steel , paintedFlangeAluminumShaftStainless steel: . Housing: nickel-plated steel , painted. Flange: Aluminum. Shaft: Stainless steel. Mass: approx. 300 g. Rotational speed: max. 12000 min -1. Moment of inertia: 50 gcm2. Starting torque: < 5 Ncm. Shaft load: . Axial24 NRadial198 NAngle offset± 0.9 °Axial offset± 0.3 mm staticRadial offset± 0.5 mm static: . Axial: 24 N. Radial: 198 N. Angle offset: ± 0.9 °. Axial offset: ± 0.3 mm static. Radial offset: ± 0.5 mm static. Scope of delivery: Spring plate is enclosed as accessory

Brand	Pepperl Fuchs
Lifecycle status	active
