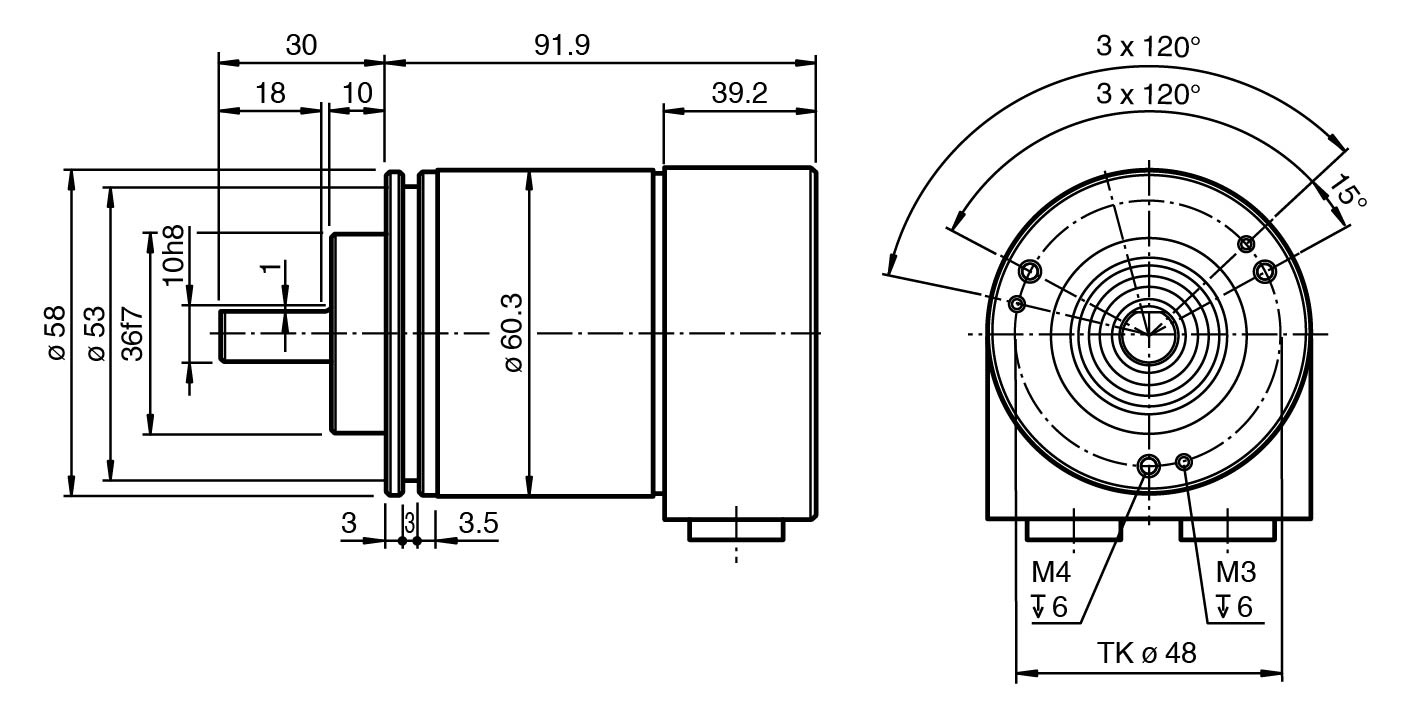

ENA58IL-S10C4E-1416B17-RH5

Absolute rotary encoder. Solid shaft, 30 Bit multiturn, Free of wear magnetic sampling, High resolution and accuracy, Mechanical compatibility with all major encoders with fieldbus interface, Enclosur...

Absolute rotary encoder. Solid shaft, 30 Bit multiturn, Free of wear magnetic sampling, High resolution and accuracy, Mechanical compatibility with all major encoders with fieldbus interface, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: PROFINET, Detection type: magnetic sampling, Interface type: PROFINET IO. Detection type: magnetic sampling. Device type: Absolute rotary encoder. Linearity error: ≤ ± 0.1 °. MTTFd: 130 a at 40 °C. Mission Time (TM): 12 a. L10: 55 E+8 revolutions at 40/110 N axial/radial shaft load. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 ... 30 V DC. Power consumption: approx. 3 W. Time delay before availability: < 250 ms. Output code: binary code. Code course (counting direction): programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending). Interface type: PROFINET IO. Resolution: . Single turnup to 16 BitMultiturnup to 14 BitOverall resolutionup to 30 Bit: . Single turn: up to 16 Bit. Multiturn: up to 14 Bit. Overall resolution: up to 30 Bit. Transfer rate: 100 MBit/s. Cycle time: ≥ 1 ms. Terminal compartment: Connection cover with radial cable outlet, with 2 threads M20 for cable glands. Degree of protection: DIN EN 60529, IP66, IP67. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz. Operating temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . Housingstainless steel V4AFlangestainless steel V4AShaftstainless steel V4A: . Housing: stainless steel V4A. Flange: stainless steel V4A. Shaft: stainless steel V4A. Mass: approx. 1000 g. Rotational speed: max. 3000 min -1. Moment of inertia: 50 gcm2. Starting torque: < 5 Ncm. Shaft load: . Axial40 NRadial110 N: . Axial: 40 N. Radial: 110 N

Brand	Pepperl Fuchs
Lifecycle status	active
