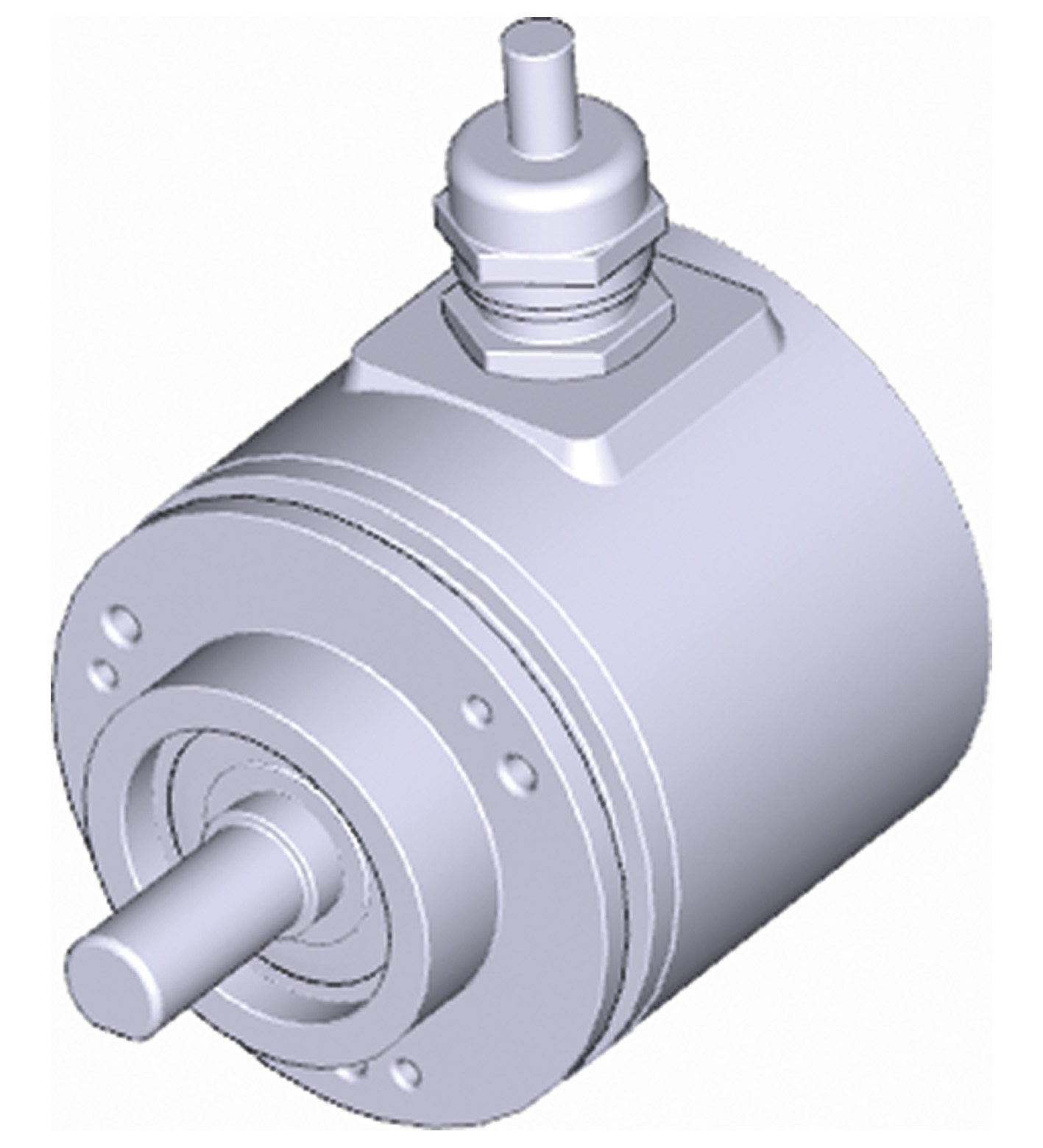

ENA58IL-S10CA5-0012SY1-RC5:01

Absolute rotary encoder. Solid shaft, SSI interface, 12 Bit singleturn, Free of wear magnetic sampling, High resolution and accuracy, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: SSI,...

Absolute rotary encoder. Solid shaft, SSI interface, 12 Bit singleturn, Free of wear magnetic sampling, High resolution and accuracy, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: SSI, Detection type: magnetic sampling, Interface type: SSI, Input type: Selection of counting direction (cw/ccw). Detection type: magnetic sampling. Device type: Absolute rotary encoder. Linearity error: ≤ ± 0.1 °. UL File Number: E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.. Operating voltage: 4.5 ... 30 V DC. No-load supply current: typ. 50 mA. Power consumption: approx. 1 W. Time delay before availability: < 450 ms. Output code: Gray code. Code course (counting direction): adjustable. Interface type: SSI. Resolution: . Single turn12 Bit: . Single turn: 12 Bit. Transfer rate: 0.1 ... 2 MBit/s. Cycle time: < 100 µs. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.75 V ... UB or unconnected (cw descending)Low0 ... 2 V (cw ascending): . High: 4.75 V ... UB or unconnected (cw descending). Low: 0 ... 2 V (cw ascending). Input current: < 6 mA. Switch-on delay: < 250 ms. Input type: zero-set (PRESET 1) with falling edge. Signal voltage: . High4.75 V ... UBLow0 ... 2 V: . High: 4.75 V ... UB. Low: 0 ... 2 V. Input current: < 6 mA. Signal duration: min. 1.1 s. Cable: ∅7 mm, 6 x 2 x 0.14 mm2 , 5 m. Degree of protection: IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 200 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 20 g, 10 ... 1000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product.. Operating temperature: cable, movable installation: -5 ... 70 °C (23 ... 158 °F),cable, fixed installation: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . Housingnickel-plated steel , paintedFlangeAluminumShaftStainless steel: . Housing: nickel-plated steel , painted. Flange: Aluminum. Shaft: Stainless steel. Mass: approx. 300 g , with cable. Rotational speed: max. 12000 min -1. Moment of inertia: 50 gcm2. Starting torque: < 5 Ncm. Shaft load: . Axial40 NRadial110 N: . Axial: 40 N. Radial: 110 N

Brand	Pepperl Fuchs
Lifecycle status	active
