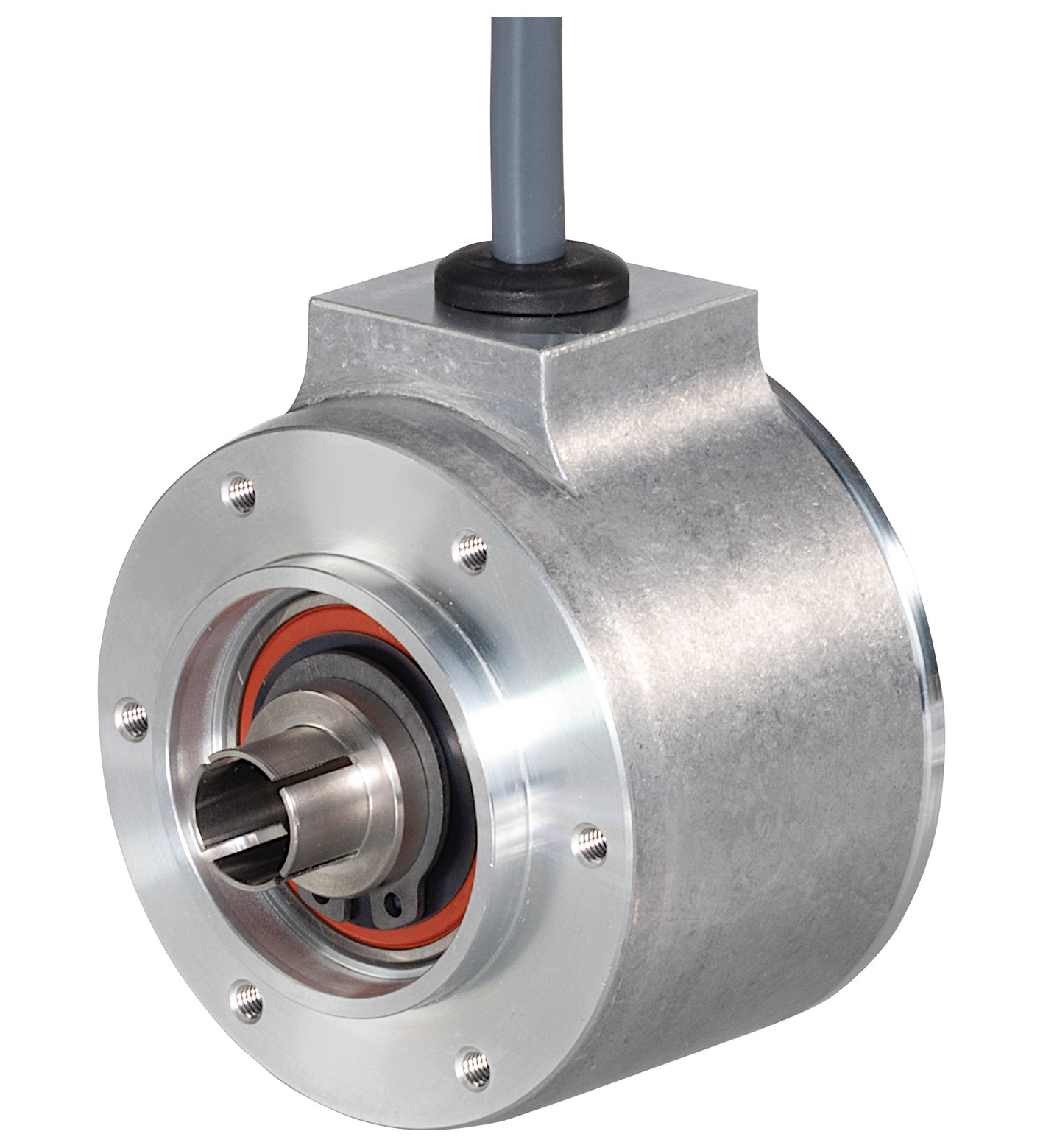

ENI58PU-H*

Incremental rotary encoder. Housing ∅ 58 mm, Hollow shaft, Up to 2048 pulses, Universal output driver, BlueBeam technology for ultimate precision, Enclosure type: 58 mm, Type of shaft: Hollow shaft, I...

Incremental rotary encoder. Housing ∅ 58 mm, Hollow shaft, Up to 2048 pulses, Universal output driver, BlueBeam technology for ultimate precision, Enclosure type: 58 mm, Type of shaft: Hollow shaft, Interface: push-pull, incremental, Detection type: photoelectric sampling, Output type: push-pull or RS422 (universal output driver, output level depending on input voltage). Detection type: photoelectric sampling. Linearity error: ± 0.025 °. Pulse count: max. 2048. Operating voltage: 4.75 ... 30 V DC. No-load supply current: max. 50 mA. Output type: push-pull or RS422 (universal output driver, output level depending on input voltage). Load current: max. per channel 40 mA , short-circuit protected, reverse polarity protected. Output frequency: max. 400 kHz. Rise time: 300 ns. Phase position A to B: 90 ° ± 9 ° electrical. Duty cycle: 1/2 ± 10 %. Cable: ∅6 mm, 4 x 2 x 0.14 mm2. Degree of protection: DIN EN 60529, IP54. Climatic testing: DIN EN 60068-2-78 , no moisture condensation. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz. UL approval: E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request. Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Operating temperature: -20 ... 70 °C (-4 ... 158 °F) , cable, fixed installation -5 ... 70 °C (23 ... 158 °F) , movable cable. Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Material: . Housingaluminum, blankFlangealuminum, blankShaftHollow shaft Stainless steel: . Housing: aluminum, blank. Flange: aluminum, blank. Shaft: Hollow shaft Stainless steel. Mass: < 300 g without cable. Rotational speed: max. 3000 min -1. Moment of inertia: ≤ 70 gcm2. Starting torque: ≤ 0.04 Nm. Shaft load: . Angle offsetmax. 1 °Axial offsetmax. 1 mm: . Angle offset: max. 1 °. Axial offset: max. 1 mm. Dimensions: . Diameter58.5 mm: . Diameter: 58.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
